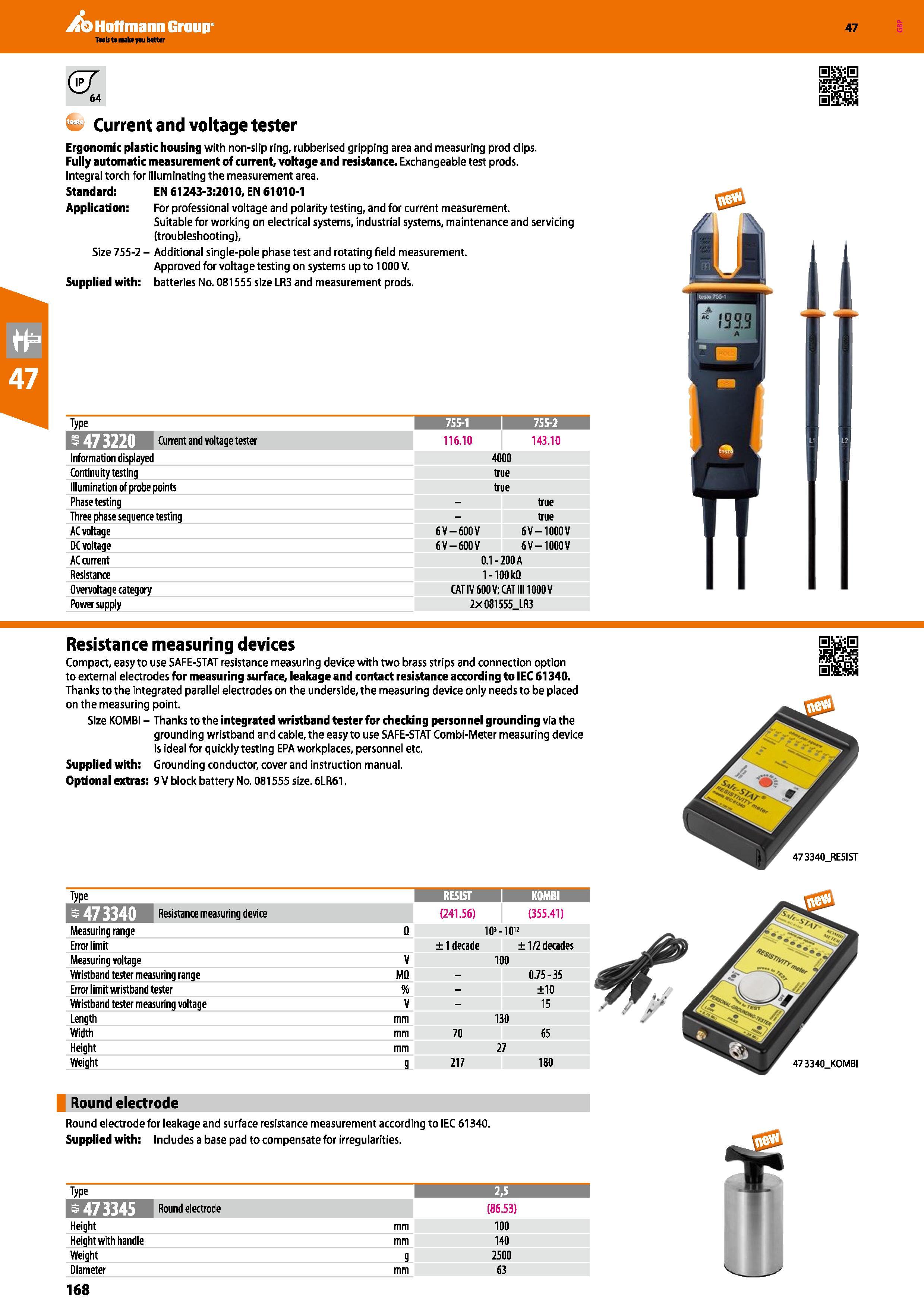

168 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.168

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 168 0168 ENG Lab2u

Hoffmann Group 47 (&T 64 Current and voltage tester Ergonomic plastic housing with non-slip ring, rubberised gripping area and measuring prod clips. Fully automatic measurement of current, voltage and resistance. Exchangeable test prods. Integral torch for illuminating the measurement area. Standard: EN 61243-3:2010, EN 61010-1 Application: For professional voltage and polarity testing, and for current measurement. Suitable for working on electrical systems, industrial systems, maintenance and servicing (troubleshooting), Size 755-2 - Additional single-pole phase test and rotating field measurement. Approved for voltage testing on systems up to 1000 V. Supplied with: batteries No. 081555 size LR3 and measurement prods. Type BBMHHMI 755-1 755-2 lyjjWjiCurrent and voltage tester 116.10 143.10 Information displayed 4000 Continuity testing true Illumination of probe points true Phase testing true Three phase sequence testing true AC voltage 6V-600V 6 V 1000 V DC voltage 6V-600 V 6 V 1000 V AC current 0.1-200 A Resistance l-IOOk ) Overvoltage category CAT IV 600 V; CAT III 1000 V Power supply 2x 081555_LR3 Resistance measuring devices Compact, easy to use SAFE-STAT resistance measuring device with two brass strips and connection option to external electrodes for measuring surface, leakage and contact resistance according to IEC 61340. Thanks to the integrated parallel electrodes on the underside, the measuring device only needs to be placed on the measuring point. Size KOMBI - Thanks to the integrated wristband tester for checking personnel grounding via the grounding wristband and cable, the easy to use SAFE-STAT Combi-Meter measuring device is ideal for quickly testing EPA workplaces, personnel etc. Supplied with: Grounding conductor, cover and instruction manual. Optional extras: 9 V block battery No. 081555 size. 6LR61. Round electrode Round electrode for leakage and surface resistance measurement according to IEC 61340. Supplied with: Includes a base pad to compensate for irregularities. Type 473345 IWEBSW I (86.53) Height mm 100 Height with handle mm 140 Weight g 2500 Diameter mm 63 168 47 3340_RESIST
