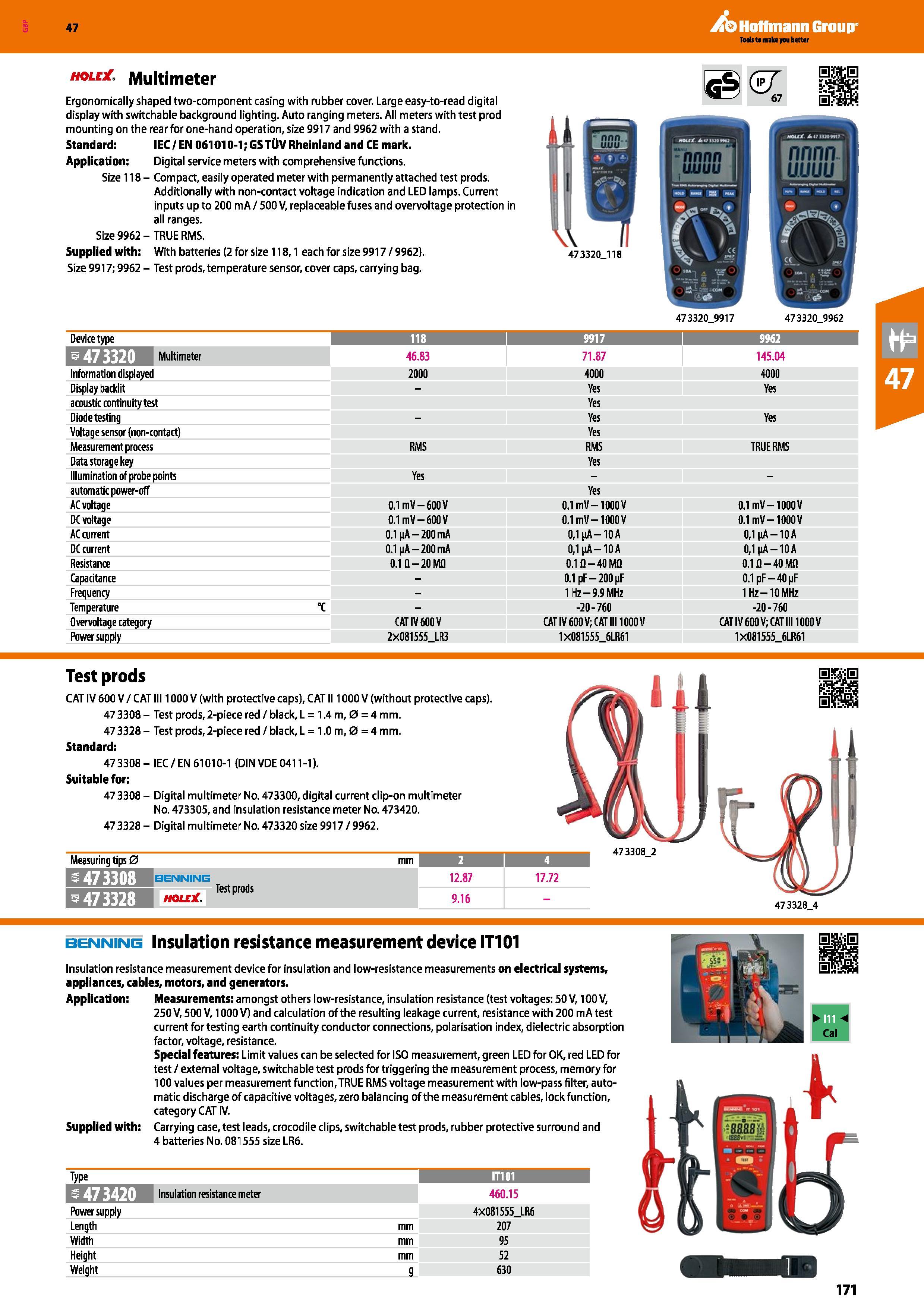

47 hole . Multimeter Ergonomically shaped two-component casing with rubber cover. Large easy-to-read digital display with switchable background lighting. Auto ranging meters. All meters with test prod mounting on the rear for one-hand operation, size 9917 and 9962 with a stand. Standard: IEC / EN 061010-1; GSTUV Rheinland and CE mark. Application: Digital service meters with comprehensive functions. Size 118 - Compact, easily operated meter with permanently attached test prods. Additionally with non-contact voltage indication and LED lamps. Current inputs up to 200 mA / 500 V, replaceable fuses and overvoltage protection in all ranges. Size 9962- TRUE RMS. Supplied with: With batteries (2 for size 118,1 each for size 9917 / 9962). Size 9917; 9962 - Test prods, temperature sensor, cover caps, carrying bag. Hoffmann Group 47 3320_9917 473320_9962 Device type 118 I 9917 9962 i h 47 3320 EH 46.83 71.87 145.04 Information displayed 2000 4000 4000 Display backlit - Yes Yes acoustic continuity test Yes Diode testing - Yes Yes Voltage sensor (non-contact) Yes Measurement process RMS RMS TRUE RMS Data storage key Yes Illumination of probe points Yes automatic power-off Yes AC voltage 0.1 mV-600V 0.1 mV-1000 V 0.1 mV-1000 V DC voltage 0.1 mV-600V 0.1 mV-1000V 0.1 mV- 1000 V AC current 0.1 nA- 200 mA 0,1 nA-10A 0,1 A 10 A DC current 0.1 lA- 200 mA 0,1 lA-lOA 0,1 iA 10 A Resistance 0.1 Q- 20 Mil 0.in-40Mn 0.1 D-40MA Capacitance - 0.1 pF-200 iF 0.1 pF 40 jjF Frequency - 1Hz-9.9 MHz 1Hz-10 MHz Temperature "C -20-760 -20-760 Overvoltage category CAT IV 600 V CAT IV 600 V; CAT III 1000 V CAT IV 600V; CAT III 1000V Power supply 2x081555J.R3 1x081555_6LR61 1x081555_6LR61 Test prods CAT IV 600 V / CAT III 1000 V (with protective caps), CAT I11000 V (without protective caps). 47 3308 - Test prods, 2-piece red / black, L = 1.4 m, 0 = 4 mm. 47 3328 - Test prods, 2-piece red / black, L = 1.0 m, 0 = 4 mm. Standard: 473308- IEC/EN 61010-1 (DIN VDE 0411-1). Suitable for: 473308 - Digital multimeter No. 473300, digital current clip-on multimeter No. 473305, and insulation resistance meter No. 473420. 47 3328 - Digital multimeter No. 473320 size 9917 / 9962. Measuring tips 0 mm 2 1 4 s473308 BENNING 12.87 17.72 473328 Test prods HOLE . 9.16 - 473308 2 benning Insulation resistance measurement device IT101 Insulation resistance measurement device for insulation and low-resistance measurements on electrical systems, appliances, cables, motors, and generators. Application: Measurements: amongst others low-resistance, insulation resistance (test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V) and calculation of the resulting leakage current, resistance with 200 mA test current for testing earth continuity conductor connections, polarisation index, dielectric absorption factor, voltage, resistance. Special features: Limit values can be selected for ISO measurement, green LED for OK, red LED for test / external voltage, switchable test prods for triggering the measurement process, memory for 100 values per measurement function,TRUE RMS voltage measurement with low-pass filter, automatic discharge of capacitive voltages, zero balancing of the measurement cables, lock function, category CAT IV. Supplied with: Carrying case, test leads, crocodile clips, switchable test prods, rubber protective surround and 4 batteries No. 081555 size LR6. Type IT101 I yjJTWl Insulation resistance meter 460.15 Power supply 4x081555J.R6 Length mm 207 Width mm 95 Height mm 52 Weight g 630 1 ii v i .W Cal
