169 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.169

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 169 0169 ENG Lab2u

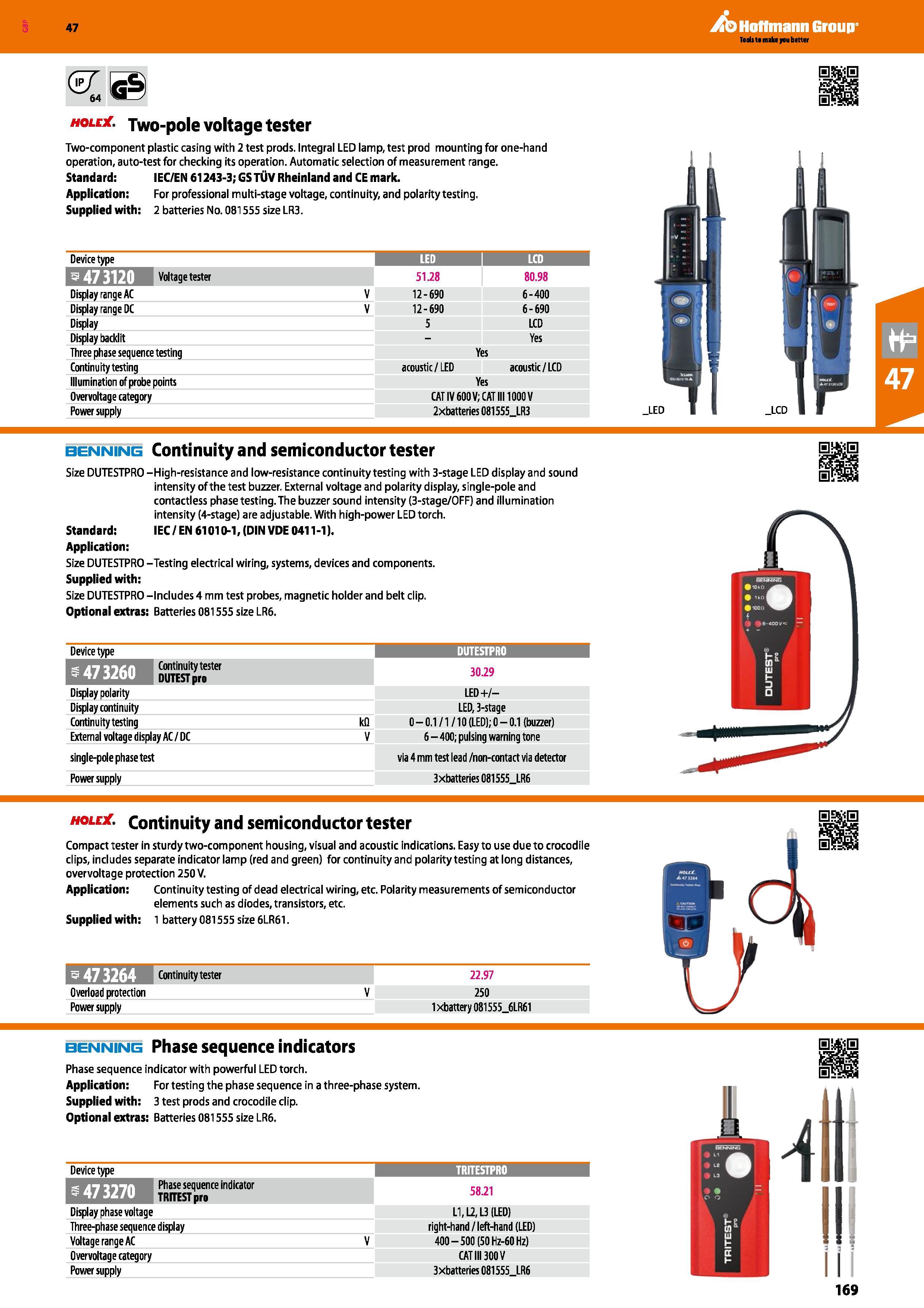

Hoffmann Group 47 hole . Two-pole voltage tester Two-component plastic casing with 2 test prods. Integral LED lamp, test prod mounting for one-hand operation, auto-test for checking its operation. Automatic selection of measurement range. Standard: IEC/EN 61243-3; GS TUV Rheinland and CE mark. Application: For professional multi-stage voltage, continuity, and polarity testing. Supplied with: 2 batteries No. 081555 size LR3. Device type I LED 1 LCD b473120 H 51.28 80.98 Display range AC V 12-690 6-400 Display range DC V 12-690 6-690 Display 5 LCD Display backlit - Yes Three phase sequence testing Yes Continuity testing acoustic/ LED acoustic/LCD Illumination of probe points Yes Overvoltage category CAT IV 600V; CAT III 1000V Power supply 2xbatteries 081555 _LR3 _LED _LCD benning Continuity and semiconductor tester Size DUTESTPRO -High-resistance and low-resistance continuity testing with 3-stage LED display and sound intensity of the test buzzer. External voltage and polarity display, single-pole and contactless phase testing. The buzzer sound intensity (3-stage/OFF) and illumination intensity (4-stage) are adjustable. With high-power LED torch. Standard: IEC/EN 61010-1, (DIN VDE 0411-1). Application: Size DUTESTPRO -Testing electrical wiring, systems, devices and components. Supplied with: Size DUTESTPRO -Includes 4 mm test probes, magnetic holder and belt clip. Optional extras: Batteries 081555 size LR6. Device type dutestpro 1 Continuity tester DUTESTpro 30.29 Display polarity LED +/ Display continuity LED, 3-stage Continuity testing kil 0-0.1/1/10 (LED); 0 - 0.1 (buzzer) External voltage display AC / DC V 6 - 400; pulsing warning tone single-pole phase test via 4 mm test lead /non-contact via detector Power supply 3xbatteries 081555_LR6 hole . Continuity and semiconductor tester Compact tester in sturdy two-component housing, visual and acoustic indications. Easy to use due to crocodile clips, includes separate indicator lamp (red and green) for continuity and polarity testing at long distances, overvoltage protection 250 V. Application: Continuity testing of dead electrical wiring, etc. Polarity measurements of semiconductor elements such as diodes, transistors, etc. Supplied with: 1 battery 081555 size 6LR61. U 47 3264 nn 22.97 Overload protection V 250 Power supply 1 xbattery 081555_6LR61 benning Phase sequence indicators Phase sequence indicator with powerful LED torch. Application: For testing the phase sequence in a three-phase system. Supplied with: 3 test prods and crocodile clip. Optional extras: Batteries 081555 size LR6. Device type TRITESTPRO 1 Phase sequence indicator BfiZJ’ZiilJ TRITESTpro 58.21 Display phase voltage L1,L2, L3 (LED) Three-phase sequence display right-hand / left-hand (LED) Voltage range AC V 400 - 500 (50 Hz-60 Hz) Overvoltage category CAT III 300 V Power supply 3xbatteries081555_LR6 169
