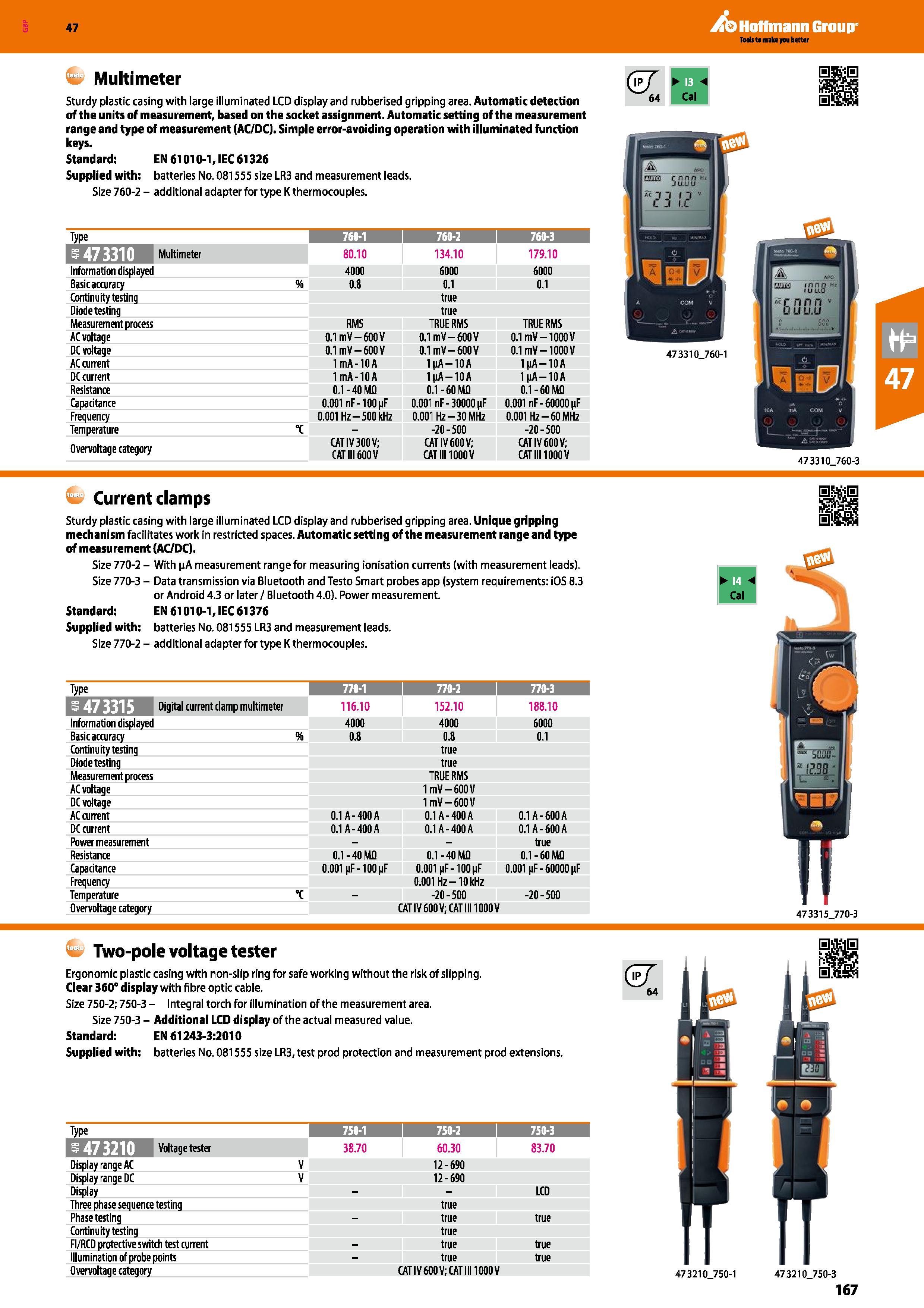

167 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.167

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 167 0167 ENG Lab2u

Hoffmann Group 47 Multimeter Sturdy plastic casing with large illuminated LCD display and rubberised gripping area. Automatic detection of the units of measurement, based on the socket assignment. Automatic setting of the measurement range and type of measurement (AC/DC). Simple error-avoiding operation with illuminated function keys. Standard: EN61010-1,IEC61326 Supplied with: batteries No. 081555 size LR3 and measurement leads. Size 760-2 - additional adapter for type K thermocouples. Type mnH 76o-i 760-2 760-3 j iKFffll'l Multimeter 80.10 134.10 179.10 Information displayed 4000 6000 6000 Basic accuracy % 0.8 0.1 0.1 Continuity testing true Diode testing true Measurement process RMS TRUE RMS TRUE RMS AC voltage 0.1 mV-600V 0.1 mV-600V 0.1 mV-1000 V DC voltage 0.1 mV-600V 0.1 mV-600V 0.1 mV-1000V AC current ImA-lOA IpA-lOA IpA-lOA DC current 1 mA-10A 1 pA-10A 1 pA-10A Resistance 0.1-40 Mil 0.1-60 Ml 0.1 -60 MU Capacitance 0.001 nF-100pF 0.001 nF-30000 pF 0.001 nF-60000 pF Frequency 0.001 Hz-500 kHz 0.001 Hz-30 MHz 0.001 Hz-60 MHz Temperature "C -20-500 -20-500 Overvoltage category CAT IV 300 V; CAT III 600 V CAT IV 600 V; CAT III 1000 V CAT IV 600 V; CAT III 1000 V 473310_760-1 473310_760-3 Current damps Sturdy plastic casing with large illuminated LCD display and rubberised gripping area. Unique gripping mechanism facilitates work in restricted spaces. Automatic setting of the measurement range and type of measurement (AC/DC). Size 770-2 - With (iA measurement range for measuring ionisation currents (with measurement leads). Size 770-3 - Data transmission via Bluetooth and Testo Smart probes app (system requirements: iOS 8.3 or Android 4.3 or later/ Bluetooth 4.0). Power measurement. Standard: EN 61010-1, IEC 61376 Supplied with: batteries No. 081555 LR3 and measurement leads. Size 770-2 - additional adapter for type K thermocouples. < Cal Type 770-1 I 770-2 770-3 1 tm ilW Digital current damp multimeter 116.10 152.10 188.10 Information displayed 4000 4000 6000 Basic accuracy % 0.8 0.8 0.1 Continuity testing true Diode testing true Measurement process TRUE RMS AC voltage 1 mV-600V DC voltage 1 mV-600V AC current 0.1 A-400 A 0.1 A-400 A 0.1 A-600 A DC current 0.1 A-400 A 0.1 A-400 A 0.1 A-600 A Power measurement true Resistance 0.1-40 Mil 0.1-40 Mil 0.1-60 Mil Capacitance 0.001 pF-100 pF 0.001 pF-100pF 0.001 pF-60000 pF Frequency 0.001 Hz-10 kHz Temperature °C - -20-500 -20-500 Overvoltage category CAT IV 600 V; CAT 1111000 V 473315_770-3 Two-pole voltage tester Ergonomic plastic casing with non-slip ring for safe working without the risk of slipping. Clear 360° display with fibre optic cable. Size 750-2; 750-3 - Integral torch for illumination of the measurement area. Size 750-3 - Additional LCD display of the actual measured value. Standard: EN 61243-3:2010 Supplied with: batteries No. 081555 size LR3, test prod protection and measurement prod extensions. & 64 Type 730-1 I 730-2 I 750-3 15 473210 El 38.70 60.30 83.70 Display range AC V 12-690 Display range DC V 12-690 Display LCD Three phase sequence testing true Phase testing - true true Continuity testing true FI/RCD protective switch test current - true true Illumination of probe points - true true Overvoltage category CAT IV 600 V; CAT 1111000 V 473210_750-1 473210_750-3 167
