165 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.165

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 165 0165 ENG Lab2u

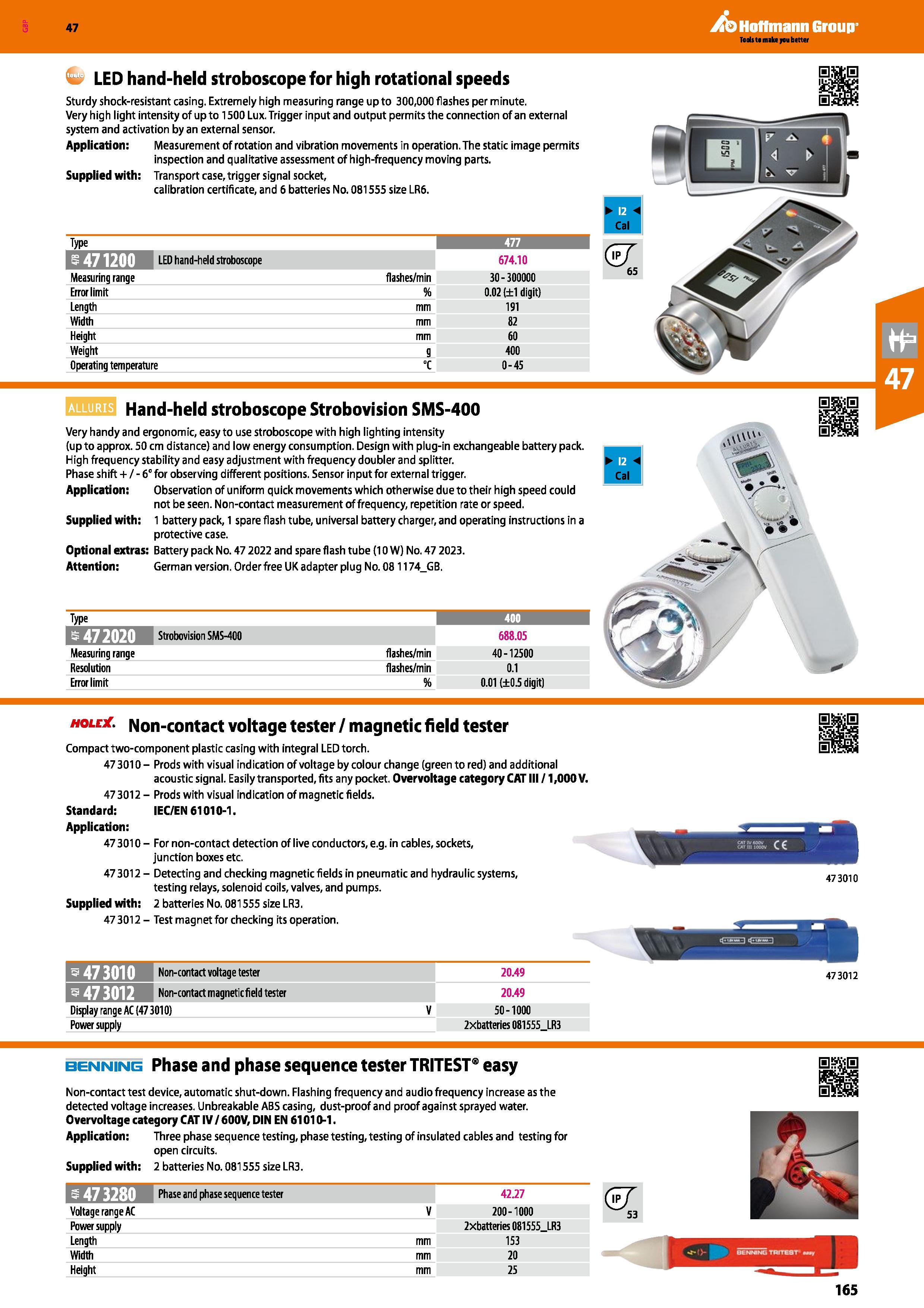

47 LED hand-held stroboscope for high rotational speeds Sturdy shock-resistant casing. Extremely high measuring range up to 300,000 fashes per minute. Very high light intensity of up to 1500 Lux. Trigger input and output permits the connection of an external system and activation by an external sensor. Application: Measurement of rotation and vibration movements in operation. The static image permits inspection and qualitative assessment of high-frequency moving parts. Supplied with: Transport case, trigger signal socket, calibration certificate, and 6 batteries No. 081555 size LR6. Type As) Hoffmann Group < Cal WiiM WlliB LED hand-held stroboscope 674.10 Measuring range flashes/min 30 - 300000 Error limit % 0.02 (±1 digit) Length mm 191 Width mm 82 Height mm 60 Weight 9 400 Operating temperature "C 0-45 & 65 ALLURIS Hand-held stroboscope Strobovision SMS-400 Very handy and ergonomic, easy to use stroboscope with high lighting intensity (up to approx. 50 cm distance) and low energy consumption. Design with plug-in exchangeable battery pack. High frequency stability and easy adjustment with frequency doubler and splitter. Phase shift + / - 6° for observing different positions. Sensor input for external trigger. Application: Observation of uniform quick movements which otherwise due to their high speed could not be seen. Non-contact measurement of frequency, repetition rate or speed. Supplied with: 1 battery pack, 1 spare flash tube, universal battery charger, and operating instructions in a protective case. Optional extras: Battery pack No. 47 2022 and spare flash tube (10 W) No. 47 2023. Attention: German version. Order free UK adapter plug No. 081174_GB. Type 400 1 WWWJStrobovision SMS-400 688.05 Measuring range flashes/min 40-12500 Resolution flashes/min 0.1 Error limit % 0.01 (±0.5 digit) hole . Non-contact voltage tester / magnetic field tester Compact two-component plastic casing with integral LED torch. 47 3010 - Prods with visual indication of voltage by colour change (green to red) and additional acoustic signal. Easily transported, fits any pocket. Overvoltage category CAT III / 1,000V. 473012 - Prods with visual indication of magnetic fields. Standard: IEC/EN 61010-1. Application: 47 3010 - For non-contact detection of live conductors, e.g. in cables, sockets, junction boxes etc. 47 3012 - Detecting and checking magnetic fields in pneumatic and hydraulic systems, testing relays, solenoid coils, valves, and pumps. Supplied with: 2 batteries No. 081555 size LR3. 47 3012 - Test magnet for checking its operation. 473010 Non-contact voltage tester 20.49 473012 Non-contact magneticfield tester 20.49 Display range AC (47 3010) Power supply 50-1000 2xbatteries 081555 LR3 s&a 47 3012 benning Phase and phase sequence tester TRUEST easy Non-contact test device, automatic shut-down. Flashing frequency and audio frequency increase as the detected voltage increases. Unbreakable ABS casing, dust-proof and proof against sprayed water. Overvoltage category CAT IV / 600V, DIN EN 61010-1. Application: Three phase sequence testing, phase testing, testing of insulated cables and testing for open circuits. Supplied with: 2 batteries No. 081555 size LR3. Phase and phase sequence tester Voltage range AC Power supply Length Width Height 165 42.27 (wf 200-1000 53 2xbatteries 081555_LR3
