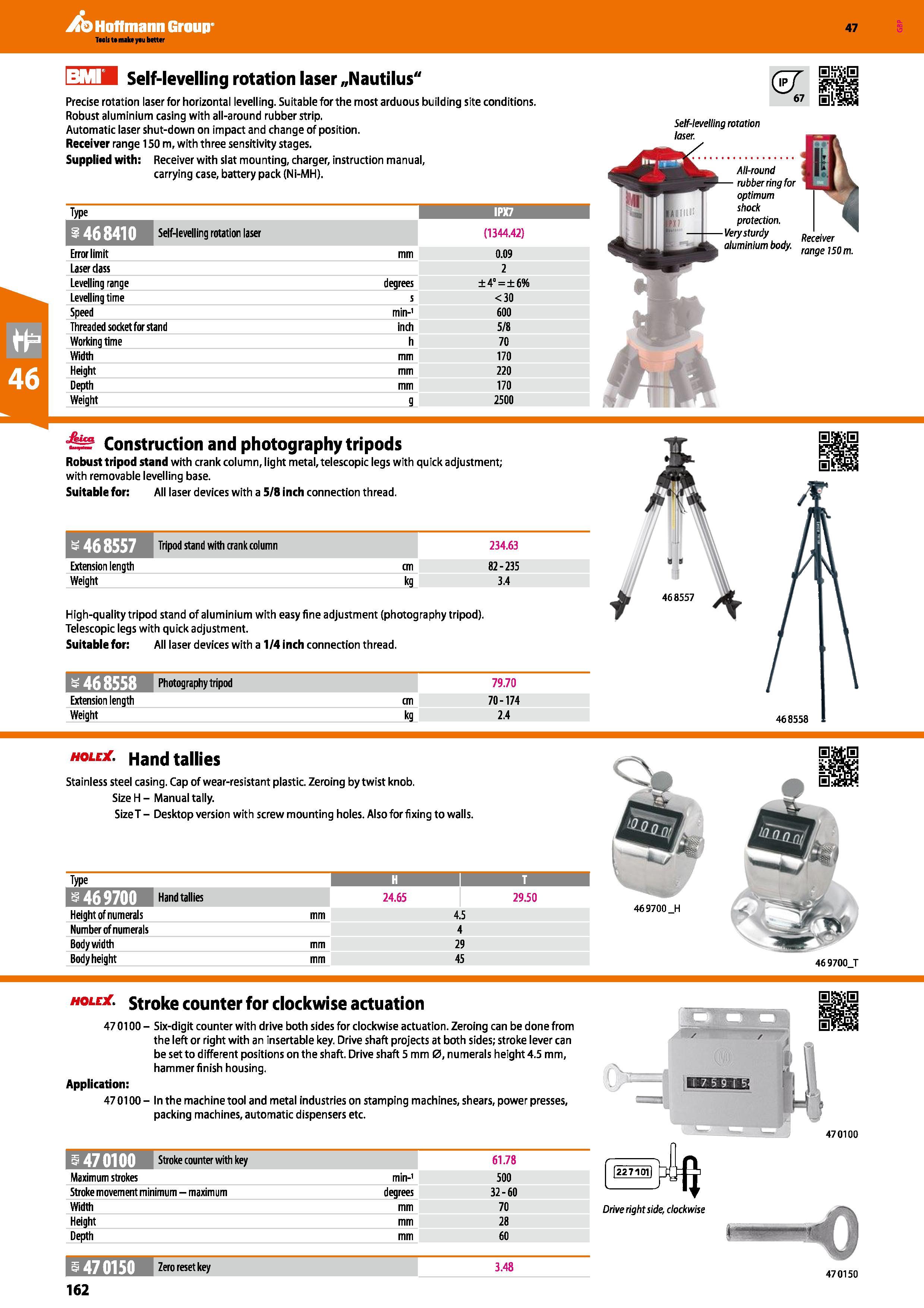

Hoffmann Group 47 I v u I IM Self-levelling rotation laser „Nautilus" Precise rotation laser for horizontal levelling. Suitable for the most arduous building site conditions. Robust aluminium casing with all-around rubber strip. Automatic laser shut-down on impact and change of position. Receiver range 150 m, with three sensitivity stages. Supplied with: Receiver with slat mounting, charger, instruction manual, carrying case, battery pack (Ni-MH). Type IPX7 1 Self-levelling rotation laser (1344.42) Error limit mm 0.09 Laserdass 2 Levelling range degrees ±4° = ±6% Levelling time s <30 Speed min-1 600 Threaded socket for stand inch 5/8 Working time h 70 Width mm 170 Height mm 220 Depth mm 170 Weight 2500 Construction and photography tripods Robust tripod stand with crank column, light metal, telescopic legs with quick adjustment; with removable levelling base. Suitable for: All laser devices with a 5/8 inch connection thread. ETftiwyB Tripod stand with crank column 234.63 Extension length cm 82-235 Weight kg 3.4 High-quality tripod stand of aluminium with easy fine adjustment (photography tripod). Telescopic legs with quick adjustment. Suitable for: All laser devices with a 1/4 inch connection thread. t Photography tripod 79.70 Extension length cm 70-174 Weight kg 2.4 468558 hole . Hand tallies Stainless steel casing. Cap of wear-resistant plastic. Zeroing by twist knob. Size H - Manual tally. SizeT - Desktop version with screw mounting holes. Also for fixing to walls. Type 1 469700 mmm 24.65 29.50 Height of numerals mm 4.5 Number of numerals 4 Body width mm 29 Body height mm 45 469700 H 469700 T hole stroke counter for clockwise actuation 470100- Six-digit counter with drive both sides for clockwise actuation. Zeroing can be done from the left or right with an insertable key. Drive shaft projects at both sides; stroke lever can be set to different positions on the shaft. Drive shaft 5 mm 0, numerals height 4.5 mm, hammer finish housing. Application: 470100- In the machine tool and metal industries on stamping machines, shears, power presses, packing machines, automatic dispensers etc. 470100 Z /l lH Stroke counter with key 61.78 Maximum strokes min-1 500 Stroke movement minimum - maximum degrees 32-60 Width mm 70 Height mm 28 Depth mm 60 i 470150 3.48 227101 Drive right side, clockwise 470150 162 Self-levelling rotation laser. All-round rubber ring for optimum shock protection. Verysturdy aluminium body. Receiver range 150 m.
