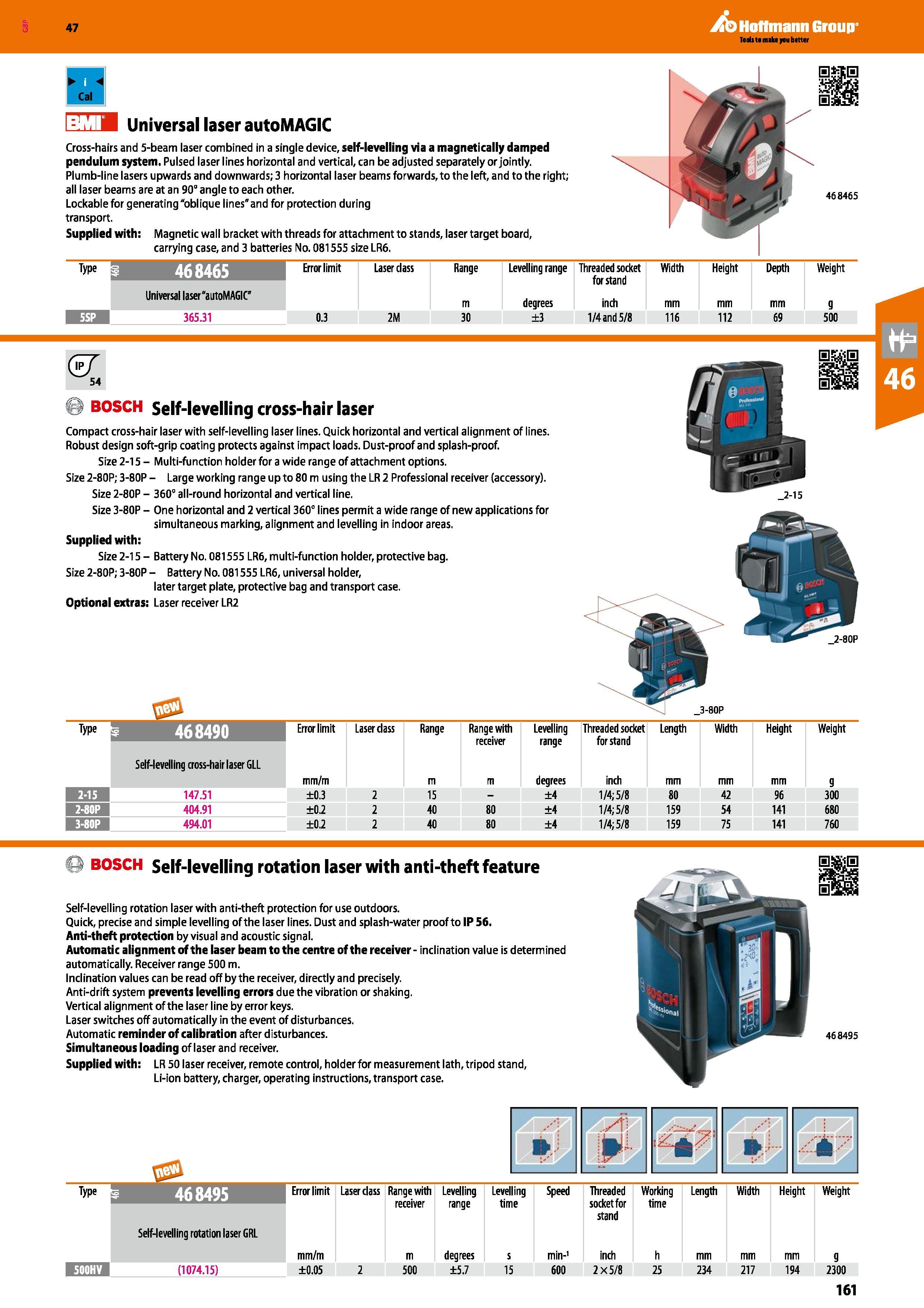

161 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.161

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 161 0161 ENG Lab2u

Hoffmann Group 47 Cal I Universal laser autoMAGIC l-.nl Cross-hairs and 5-beam laser combined in a single device, self-levelling via a magnetically damped pendulum system. Pulsed laser lines horizontal and vertical, can be adjusted separately or jointly. Plumb-line lasers upwards and downwards; 3 horizontal laser beams forwards, to the left, and to the right; all laser beams are at an 90° angle to each other. Lockable for generating "oblique lines"and for protection during transport. Supplied with: Magnetic wall bracket with threads for attachment to stands, laser target board, carrying case, and 3 batteries No. 081555 size LR6. 468465 Type Error limit Laser dass Range Levelling range Threaded socket for stand inch Width Height Depth Weight Universal laser"autoMAGIC" m degrees mm g 5SP 365.31 0.3 2M 30 ±3 1/4 and 5/8 116 112 69 500 & 54 BOSCH Self-levelling cross-hair laser Compact cross-hair laser with self-levelling laser lines. Quick horizontal and vertical alignment of lines. Robust design soft-grip coating protects against impact loads. Dust-proof and splash-proof. Size 2-15 - Multi-function holder for a wide range of attachment options. Size 2-80P; 3-80P - Large working range up to 80 m using the LR 2 Professional receiver (accessory). Size 2-80P - 360° all-round horizontal and vertical line. Size 3-80P - One horizontal and 2 vertical 360° lines permit a wide range of new applications for simultaneous marking, alignment and levelling in indoor areas. Supplied with: Size 2-15 - Battery No. 081555 LR6, multi-function holder, protective bag. Size 2-80P; 3-80P - Battery No. 081555 LR6, universal holder, later target plate, protective bag and transport case. Optional extras: Laser receiver LR2 Type N 468490 Error limit mm/m Laser class Range m Range with receiver m Levelling range degrees Threaded socket for stand inch Length mm Width mm Height mm Weight g Self-levelling cross-hair laser GLL 2-15 147.51 ±0.3 2 15 - ±4 1/4; 5/8 80 42 96 300 2-80P 404.91 ±0.2 2 40 80 ±4 1/4; 5/8 159 54 141 680 3-80P 494.01 ±0.2 2 40 80 ±4 1/4; 5/8 159 75 141 760 BOSCH Self-levelling rotation laser with anti-theft feature Self-levelling rotation laser with anti-theft protection for use outdoors. Quick, precise and simple levelling of the laser lines. Dust and splash-water proof to IP 56. Anti-theft protection by visual and acoustic signal. Automatic alignment of the laser beam to the centre of the receiver- inclination value is determined automatically. Receiver range 500 m. Inclination values can be read off by the receiver, directly and precisely. Anti-drift system prevents levelling errors due the vibration or shaking. Vertical alignment of the laser line by error keys. Laser switches off automatically in the event of disturbances. Automatic reminder of calibration after disturbances. Simultaneous loading of laser and receiver. Supplied with: LR 50 laser receiver, remote control, holder for measurement lath, tripod stand, Li-ion battery, charger, operating instructions, transport case. 468495 Type Self-levelling rotation laser GRL Error limit mm/m Laser class Range with receiver m Levelling range degrees Levelling time s Speed min-1 Threaded socket for stand inch Working time h Length mm Width mm Height mm Weight g U'Mll'I (1074.15) ±0.05 2 500 ±5.7 15 600 2x5/8 25 234 217 194 2300 161
