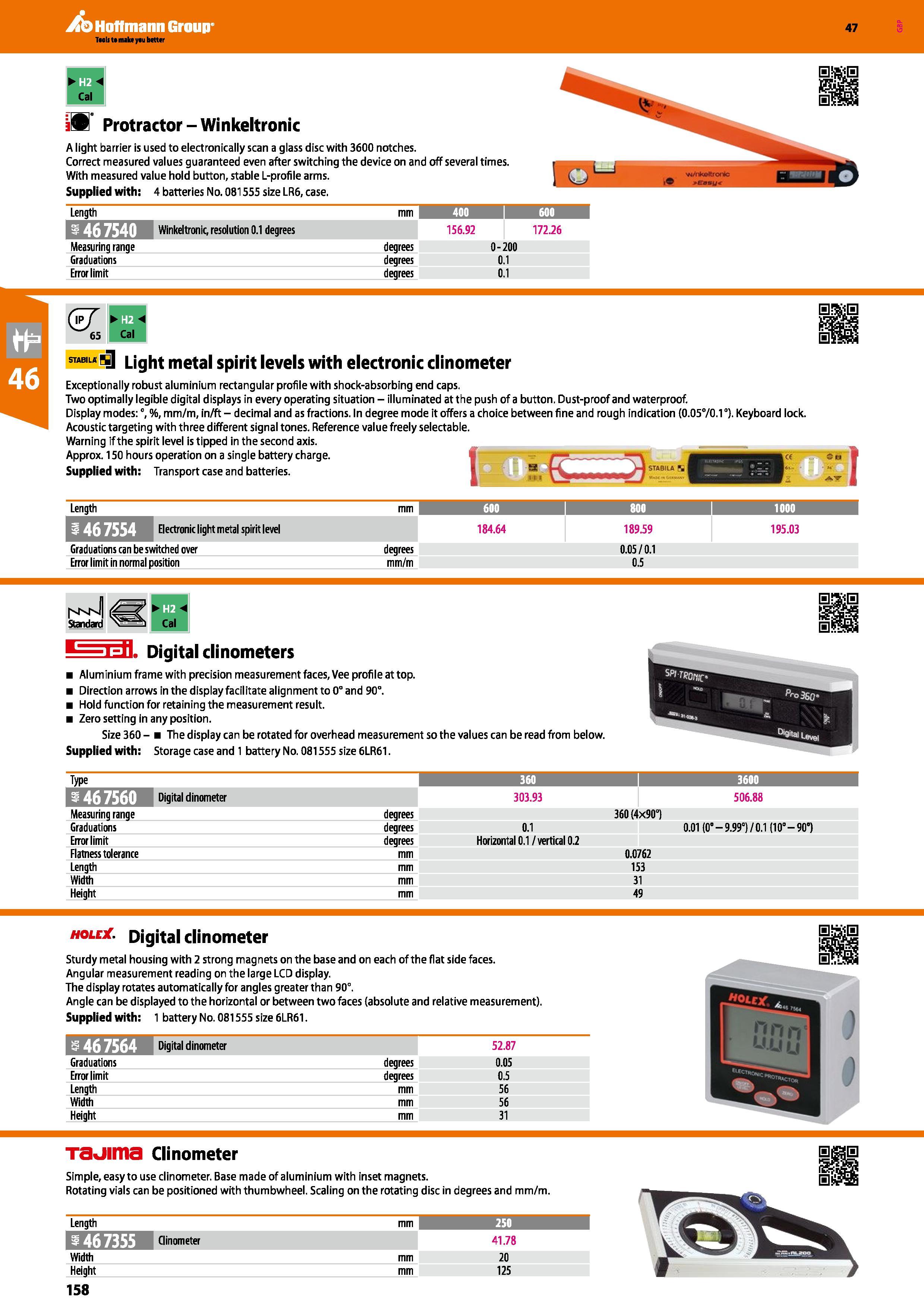

158 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.158

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 158 0158 ENG Lab2u

Hoffmann Group 47 m Protractor - Winkeltronic A light barrier Is used to electronically scan a glass disc with 3600 notches. Correct measured values guaranteed even after switching the device on and off several times. With measured value hold button, stable L-profile arms. Supplied with: 4 batteries No. 081555 size LR6, case. Length mm Cr Hl Winkeltronic, resolution 0.1 degrees 156.92 172.26 Measuring range degrees 0-200 Graduations degrees 0.1 Error limit degrees 0.1 Light metal spirit levels with electronic clinometer Exceptionally robust aluminium rectangular profile with shock-absorbing end caps. Two optimally legible digital displays in every operating situation - illuminated at the push of a button. Dust-proof and waterproof. Display modes: °, %, mm/m, in/ft - decimal and as fractions. In degree mode it offers a choice between fine and rough indication (0.0570.1 °). Keyboard lock. Acoustic targeting with three different signal tones. Reference value freely selectable. Warning if the spirit level is tipped in the second axis. Approx. 150 hours operation on a single battery charge. Supplied with: Transport case and batteries. H H. j- sugili rj I Length mm 600 800 1000 I Electronic light metal spirit level 184.64 189.59 195.03 Graduations can be switched over degrees 0.05/0.1 Error limit in normal position mm/m 0.5 Standatd Digital clinometers Aluminium frame with precision measurement faces, Vee profile at top. Direction arrows in the display facilitate alignment to 0° and 90°. Hold function for retaining the measurement result. Zero setting in any position. Size 360 - The display can be rotated for overhead measurement so the values can be read from below. Supplied with: Storage case and 1 battery No. 081555 size 6LR61. Type 360 1 3600 1 J '"111 Dioital dinometer 303.93 506.88 Measuring range degrees 360 (4x90°) Graduations degrees 0.1 0.01 (0°-9.99")/0.1 (10°-90°) Error limit degrees Horizontal 0.1 /vertical 0.2 Flatness tolerance mm 0.0762 Length mm 153 Width mm 31 Height mm 49 holcX. Digital clinometer Sturdy metal housing with 2 strong magnets on the base and on each of the flat side faces. Angular measurement reading on the large LCD display. The display rotates automatically for angles greater than 90°. Angle can be displayed to the horizontal or between two faces (absolute and relative measurement). Supplied with: 1 battery No. 081555 size 6LR61. I 46 7564 IiIIEHM 52.87 Graduations degrees 0.05 Error limit degrees 0.5 Length mm 56 Width mm 56 Height mm 31 Tajima Clinometer Simple, easy to use clinometer. Base made of aluminium with inset magnets. Rotating vials can be positioned with thumbwheel. Scaling on the rotating disc in degrees and mm/m. Length mm 250 i 46 7355 EE 41.78 Width mm 20 Height mm 125
