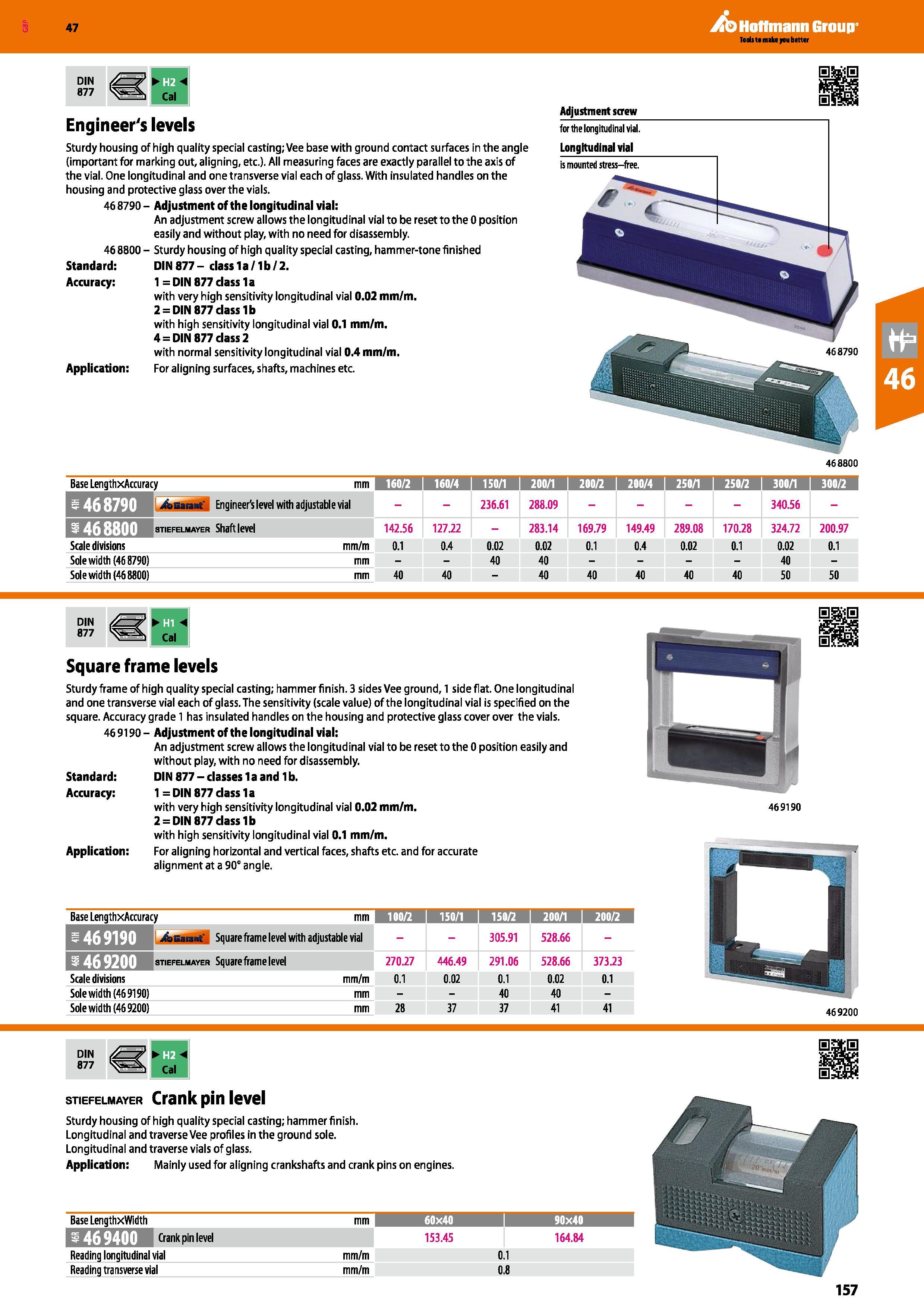

Hoffmann Group 47 DIN 877 Engineer's levels Adjustment screw Sturdy housing of high quality special casting; Vee base with ground contact surfaces in the angle (important for marking out, aligning, etc.). All measuring faces are exactly parallel to the axis of the vial. One longitudinal and one transverse vial each of glass. With insulated handles on the housing and protective glass over the vials. 46 8790 - Adjustment of the longitudinal vial: An adjustment screw allows the longitudinal vial to be reset to the 0 position easily and without play, with no need for disassembly. 46 8800 - Sturdy housing of high quality special casting, hammer-tone finished Standard: Accuracy: Application: DIN877- dassla/lb/2. 1 =DIN 877 class la with very high sensitivity longitudinal vial 0.02 mm/m. 2 = DIN 877 class 1b with high sensitivity longitudinal vial 0.1 mm/m. 4 = DIN 877 class 2 with normal sensitivity longitudinal vial 0.4 mm/m. For aligning surfaces, shafts, machines etc. 468800 Base LengthxAccuracy mm 160/2 I 160/4 I 150/1 I 200/1 1 200/2 1 200/4 I 250/1 1 250/2 I 300/1 1 300/2 /bGarant, Engineer's level with adjustable vial 236.61 288.09 - 340.56 - 11468800 1 142.56 127.22 - 283.14 169.79 149.49 289.08 170.28 324.72 200.97 Scale divisions mm/m 0.1 0.4 0.02 0.02 0.1 0.4 0.02 0.1 0.02 0.1 Sole width (468790) mm 40 40 - 40 - Sole width (468800) mm 40 40 - 40 40 40 40 40 50 50 DIN 877 Square frame levels Sturdy frame of high quality special casting; hammer finish. 3 sides Vee ground, 1 side flat. One longitudinal and one transverse vial each of glass. The sensitivity (scale value) of the longitudinal vial is specified on the square. Accuracy grade 1 has insulated handles on the housing and protective glass cover over the vials. 46 9190 - Adjustment of the longitudinal vial: An adjustment screw allows the longitudinal vial to be reset to the 0 position easily and without play, with no need for disassembly. Standard: DIN 877-classes la and 1b. Accuracy: 1 = DIN 877 class 1 a with very high sensitivity longitudinal vial 0.02 mm/m. 2 = DIN 877 class 1b with high sensitivity longitudinal vial 0.1 mm/m. Application: For aligning horizontal and vertical faces, shafts etc. and for accurate alignment at a 90° angle. 469190 Base LengthxAccuracy mm 100/2 I 150/1 1 150/2 1 200/1 1 200/2 EfitliUlB JibGaiant Sauare frame level with adjustable vial 305.91 528.66 - stiefelmayer Square frame level 270.27 446.49 291.06 528.66 373.23 Scale divisions mm/m 0.1 0.02 0.1 0.02 0.1 Solewidth (469190) mm 40 40 - Sole width (469200) mm 28 37 37 41 41 DIN 877 stiefelmayer Crank pin level Sturdy housing of high quality special casting; hammer finish. Longitudinal and traverse Vee profiles in the ground sole. Longitudinal and traverse vials of glass. Application: Mainly used for aligning crankshafts and crank pins on engines. Base Lengthxwidth mm 60x40 I 90x40 1 11469400 EH 153.45 164.84 Reading longitudinal vial mm/m 0.1 Reading transverse vial mm/m 0.8 469200 157
