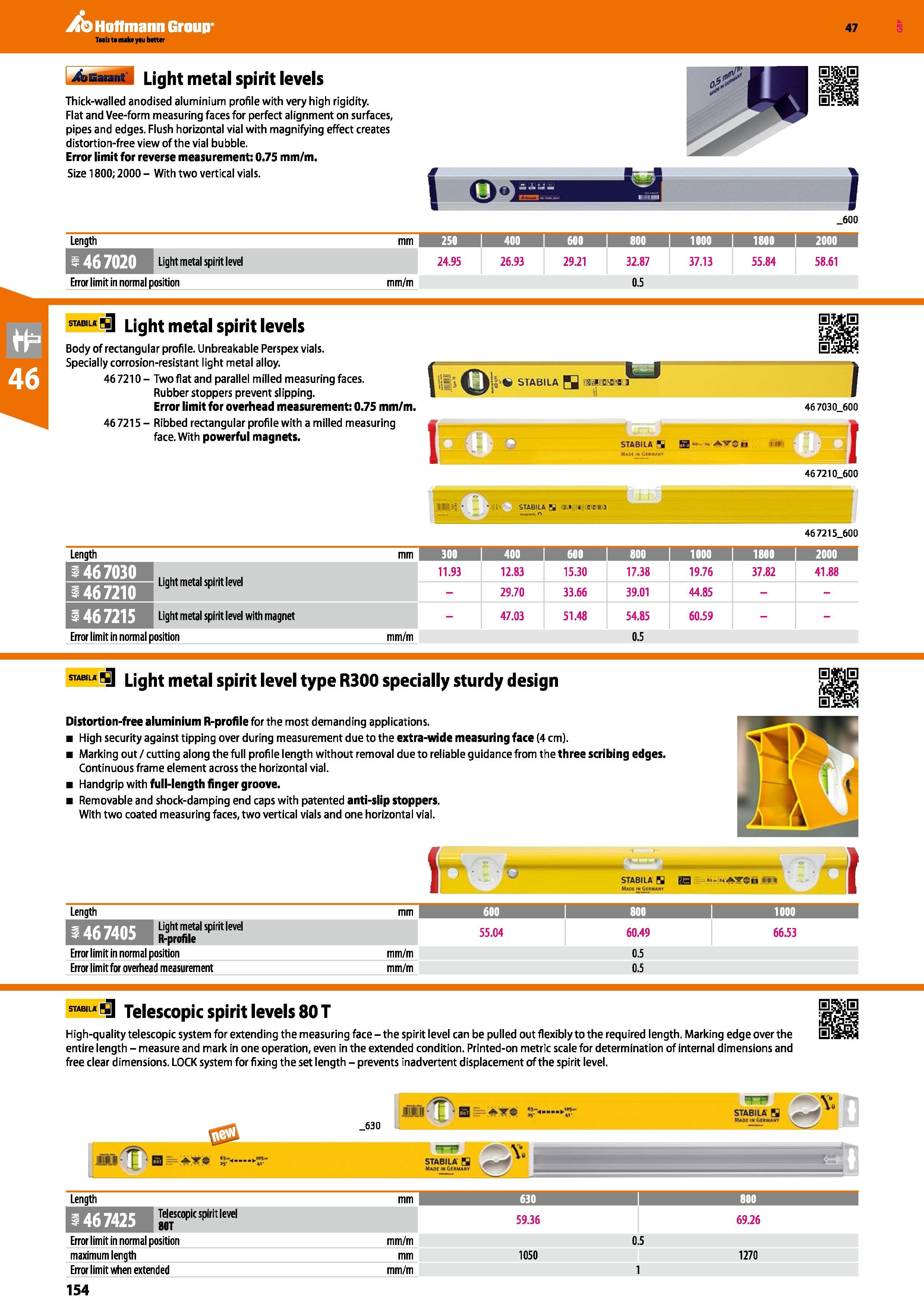

Hoffmann Group 47 Light metal spirit levels Thick-walled anodised aluminium profile with very high rigidity. Flat and Vee-form measuring faces for perfect alignment on surfaces, pipes and edges. Flush horizontal vial with magnifying effect creates distortion-free view of the vial bubble. Error limit for reverse measurement: 0.75 mm/m. Size 1800; 2000 - With two vertical vials. i o I _600 Length 33 250 400 i 600 800 1000 1800 1 2000 j Light metal spirit level 24.95 26.93 29.21 32.87 37.13 55.84 58.61 Error limit in normal position mm/m 0.5 'si Light metal spirit levels Body of rectangular profile. Unbreakable Perspex vials. Specially corrosion-resistant light metal alloy. 467210- Two flat and parallel milled measuring faces. Rubber stoppers prevent slipping. Error limit for overhead measurement: 0.75 mm/m. 467215 - Ribbed rectangular profile with a milled measuring face. With powerful magnets. I'il's Qfr STABILA H REH STABILA , 3 Mad I ik Gchwamv I 46 7030_600 I 46 7210_600 Light metal spirit level 1467215 Light metal spirit level with magnet Error limit in normal position mm I 400 i 600 i 800 j 1000 11.93 12.83 15.30 17.38 19.76 - 29.70 33.66 39.01 44.85 - 47.03 51.48 54.85 60.59 mm/m 0.5 37.82 467215_600 41.88 stabila s Light metal spirit level type R300 specially sturdy design Distortion-free aluminium R-profile for the most demanding applications. High security against tipping over during measurement due to the extra-wide measuring face (4 cm). Marking out /cutting along the full profile length without removal due to reliable guidance from the three scribing edges. Continuous frame element across the horizontal vial. Handgrip with full-length finger groove. Removable and shock-damping end caps with patented anti-slip stoppers. With two coated measuring faces, two vertical vials and one horizontal vial. fP" Length mm 600 I 800 1000 i B H&“spiritlevel 55.04 60.49 66.53 Error limit in normal position mm/m 0.5 Error limit for overhead measurement mm/m 0.5 1 h Telescopic spirit levels 80 T High-quality telescopic system for extending the measuring face - the spirit level can be pulled out flexibly to the required length. Marking edge over the entire length - measure and mark in one operation, even in the extended condition. Printed-on metric scale for determination of internal dimensions and free clear dimensions. LOCK system for fixing the set length - prevents inadvertent displacement of the spirit level. iSj-T q _630 /fl V mu- I a ; t STABILA QJ > -4 MAor m GrtiMNY Length mm 630 1 800 Telescopic spirit level bUZaiufl sot 59.36 69.26 Error limit in normal position mm/m 0.5 maximum length mm 1050 1270 Error limit when extended mm/m 1 154
