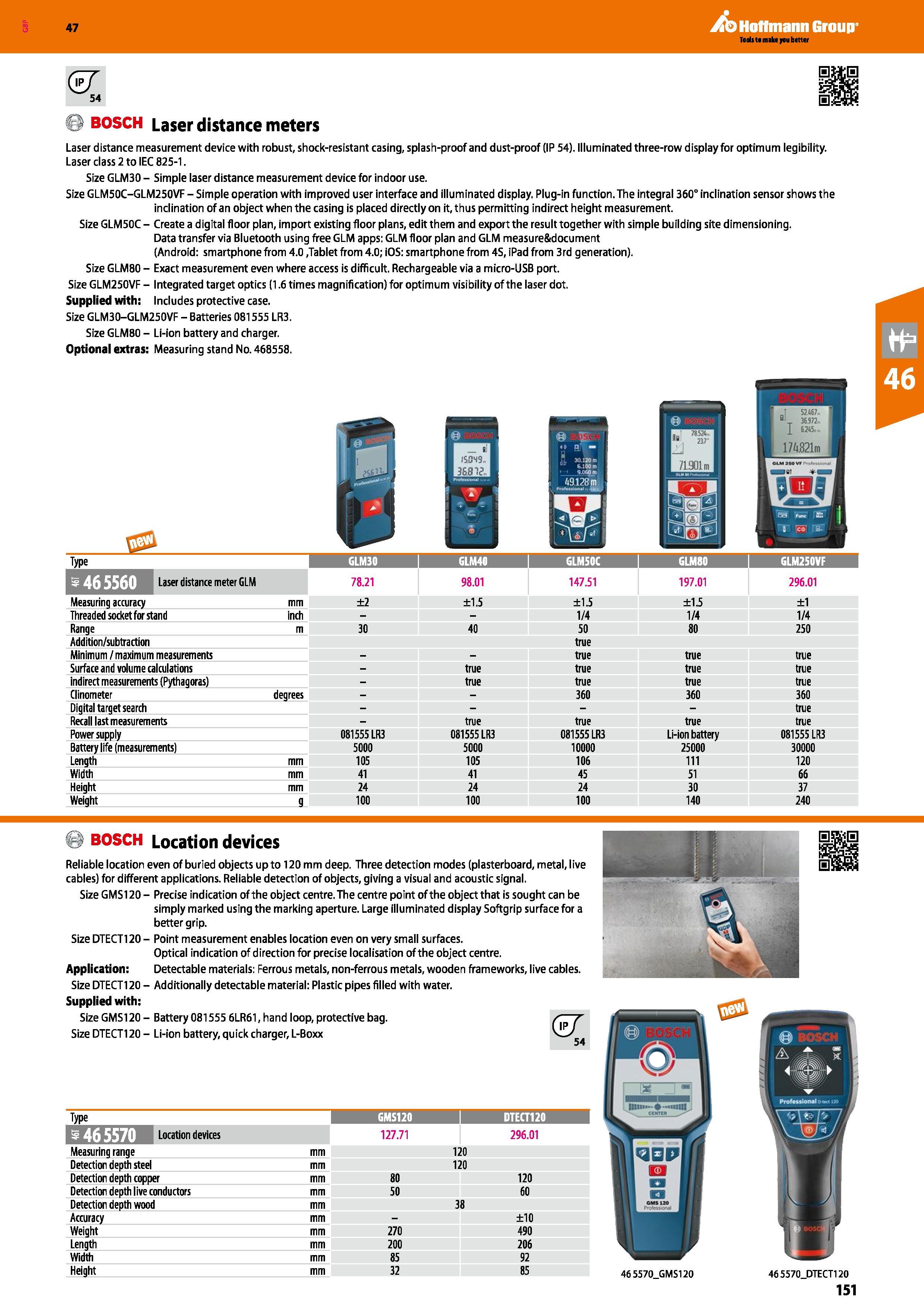

Hoffmann Group 47 & 54 0 BOSCH Laser distance meters Laser distance measurement device with robust, shock-resistant casing, splash-proof and dust-proof (IP 54). Illuminated three-row display for optimum legibility. Laser class 2 to IEC 825-1. Size GLM30 - Simple laser distance measurement device for indoor use. Size GLM50C-GLM250VF - Simple operation with improved user interface and illuminated display. Plug-in function. The integral 360° inclination sensor shows the inclination of an object when the casing is placed directly on it, thus permitting indirect height measurement. Size GLM50C - Create a digital floor plan, import existing floor plans, edit them and export the result together with simple building site dimensioning. Data transfer via Bluetooth using free GLM apps: GLM floor plan and GLM measure&document (Android: smartphone from 4.0 .Tablet from 4.0; iOS: smartphone from 4S, iPad from 3rd generation). Size GLM80 - Exact measurement even where access is difficult. Rechargeable via a micro-USB port. Size GLM250VF - Integrated target optics (1.6 times magnification) for optimum visibility of the laser dot. Supplied with: Includes protective case. Size GLM30-GLM250VF - Batteries 081555 LR3. Size GLM80 - Li-ion battery and charger. Optional extras: Measuring stand No. 468558. Type GLM30 I GLM40 GLM50C j GLM80 GLM250VF Laser distance meter GLM 78.21 98.01 147.51 197.01 296.01 Measuring accuracy mm ±2 ±1.5 ±1.5 ±1.5 ±1 Threaded socket for stand inch _ _ 1/4 1/4 1/4 Range m 30 40 50 80 250 Addition/subtraction true Minimum / maximum measurements _ _ true true trie Surface and volume calculations - true true true true indirect measurements (Pythagoras) - true true true true Clinometer degrees 360 360 360 Digital target search - true Recall last measurements - true true true true Power supply 081555 LR3 081555 LR3 081555 LR3 Li-ion battery 081555 LR3 Battery life (measurements) 5000 5000 10000 25000 30000 Length mm 105 105 106 111 120 Width mm 41 41 45 51 66 Height mm 24 24 24 30 37 Weight g 100 100 100 140 240 BOSCH Location devices Reliable location even of buried objects up to 120 mm deep. Three detection modes (plasterboard, metal, live cables) for different applications. Reliable detection of objects, giving a visual and acoustic signal. Size GMS120 - Precise indication of the object centre. The centre point of the object that is sought can be simply marked using the marking aperture. Large illuminated display Softgrip surface for a better grip. Size DTECT120 - Point measurement enables location even on very small surfaces. Optical indication of direction for precise localisation of the object centre. Application: Detectable materials: Ferrous metals, non-ferrous metals, wooden frameworks, live cables. Size DTECT120 - Additionally detectable material: Plastic pipes filled with water. Supplied with: SizeGMS120 - Battery 081555 6LR61, hand loop, protective bag. Size DTECT120 - Li-ion battery, quick charger, L-Boxx & 54 Type GMS120 I DTECT120 f 1 46 5570 mmm 127.71 296.01 Measuring range mm 120 Detection depth steel mm 120 Detection depth copper mm 80 120 Detection depth live conductors mm 50 60 Detection depth wood mm 38 Accuracy mm - ±10 Weight mm 270 490 Length mm 200 206 Width mm 85 92 Height mm 32 85 46557O_GMS120 46 5570_DTECT120 151
