150 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.150

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 150 0150 ENG Lab2u

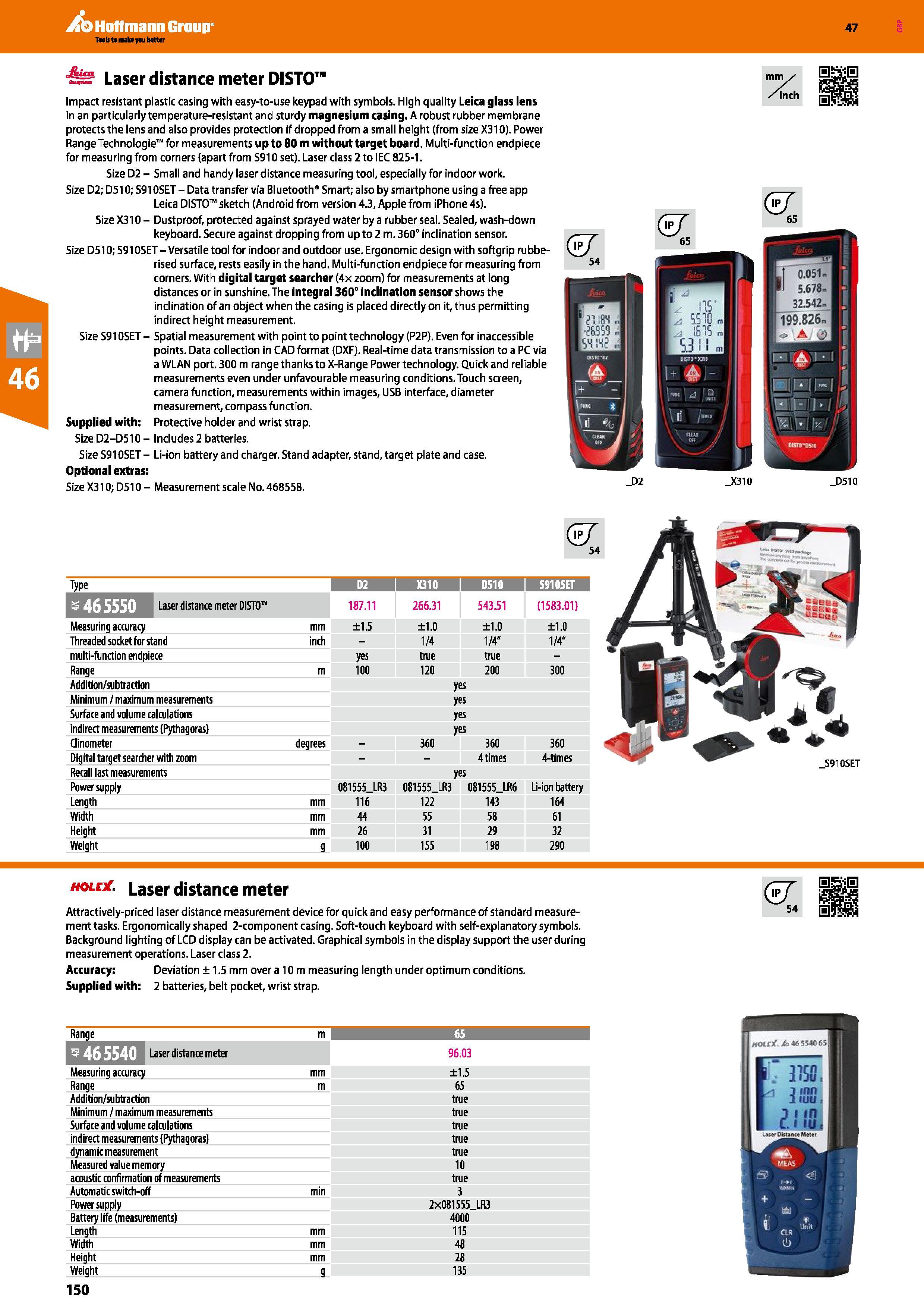

Hoffmann Group 47 Laser distance meter DISTO Impact resistant plastic casing with easy-to-use keypad with symbols. High quality Leica glass lens in an particularly temperature-resistant and sturdy magnesium casing. A robust rubber membrane protects the lens and also provides protection if dropped from a small height (from sizeX310). Power Range Technologie for measurements up to 80 m without target board. Multi-function endpiece for measuring from corners (apart from S910 set). Laser class 2 to IEC 825-1. Size D2 - Small and handy laser distance measuring tool, especially for indoor work. Size D2;D510;S910SET- Data transfer via Bluetooth" Smart; also by smartphone using a freeapp Leica DISTO sketch (Android from version 4.3, Apple from iPhone 4s , Size X310 - Dustproof, protected against sprayed water by a rubber seal. Sealed, wash-down keyboard. Secure against dropping from up to 2 m. 360° inclination sensor. Size D510; S91OSET - Versatile tool for indoor and outdoor use. Ergonomic design with softgrip rubberised surface, rests easily in the hand. Multi-function endpiece for measuring from corners. With digital target searcher (4x zoom) for measurements at long distances or in sunshine. The integral 360° inclination sensor shows the inclination of an object when the casing is placed directly on it, thus permitting indirect height measurement. Size S91 OSET - Spatial measurement with point to point technology (P2P). Even for inaccessible points. Data collection in CAD format (DXF). Real-time data transmission to a PC via a WLAN port. 300 m range thanks to X-Range Power technology. Quick and reliable measurements even under unfavourable measuring conditions. Touch screen, camera function, measurements within images, USB interface, diameter measurement, compass function. Supplied with: Protective holder and wrist strap. Size D2-D510 - Includes 2 batteries. Size S910SET - Li-ion battery and charger. Stand adapter, stand, target plate and case. Optional extras: Size X310; D510 - Measurement scale No. 468558. mm/ /Inch X310 _D510 Type D2 i X310 _L D510 Laser distance meter DISTO 187.11 266.31 543.51 Measuring accuracy mm ±1.5 ±1.0 ±1.0 Threaded socket for stand inch - 1/4 1/4" multi-function endpiece yes true true Range m 100 120 200 Addition/subtraction yes Minimum / maximum measurements yes Surface and volume calculations yes indirect measurements (Pythagoras) yes Clinometer degrees - 360 360 Digital target searcher with zoom 4 times Recall last measurements yes Power supply 081555_LR3 081555_LR3 I 081555_LR Length mm 116 122 143 Width mm 44 55 58 Height mm 26 31 29 Weight g 100 155 198 hole . Laser distance meter Attractively-priced laser distance measurement device for quick and easy performance of standard measurement tasks. Ergonomically shaped 2-component casing. Soft-touch keyboard with self-explanatory symbols. Background lighting of LCD display can be activated. Graphical symbols in the display support the user during measurement operations. Laser class 2. Accuracy: Deviation ± 1.5 mm overa 10 m measuring length under optimum conditions. Supplied with: 2 batteries, belt pocket, wrist strap. Range m 65 1 h465540 1 96.03 Measuring accuracy mm ±1.5 Range m 65 Addition/subtraction true Minimum / maximum measurements true Surface and volume calculations true indirect measurements (Pythagoras) true dynamic measurement true Measured value memory 10 acoustic confirmation of measurements true Automatic switch-off min 3 Power supply 2x081555 LR3 Battery life (measurements) 4000 Length mm 115 Width mm 48 Height mm 28 Weight 9 135 (1583.01) ±1.0 1/4" 360 4-times Li-ion battery 164 61 32 290
