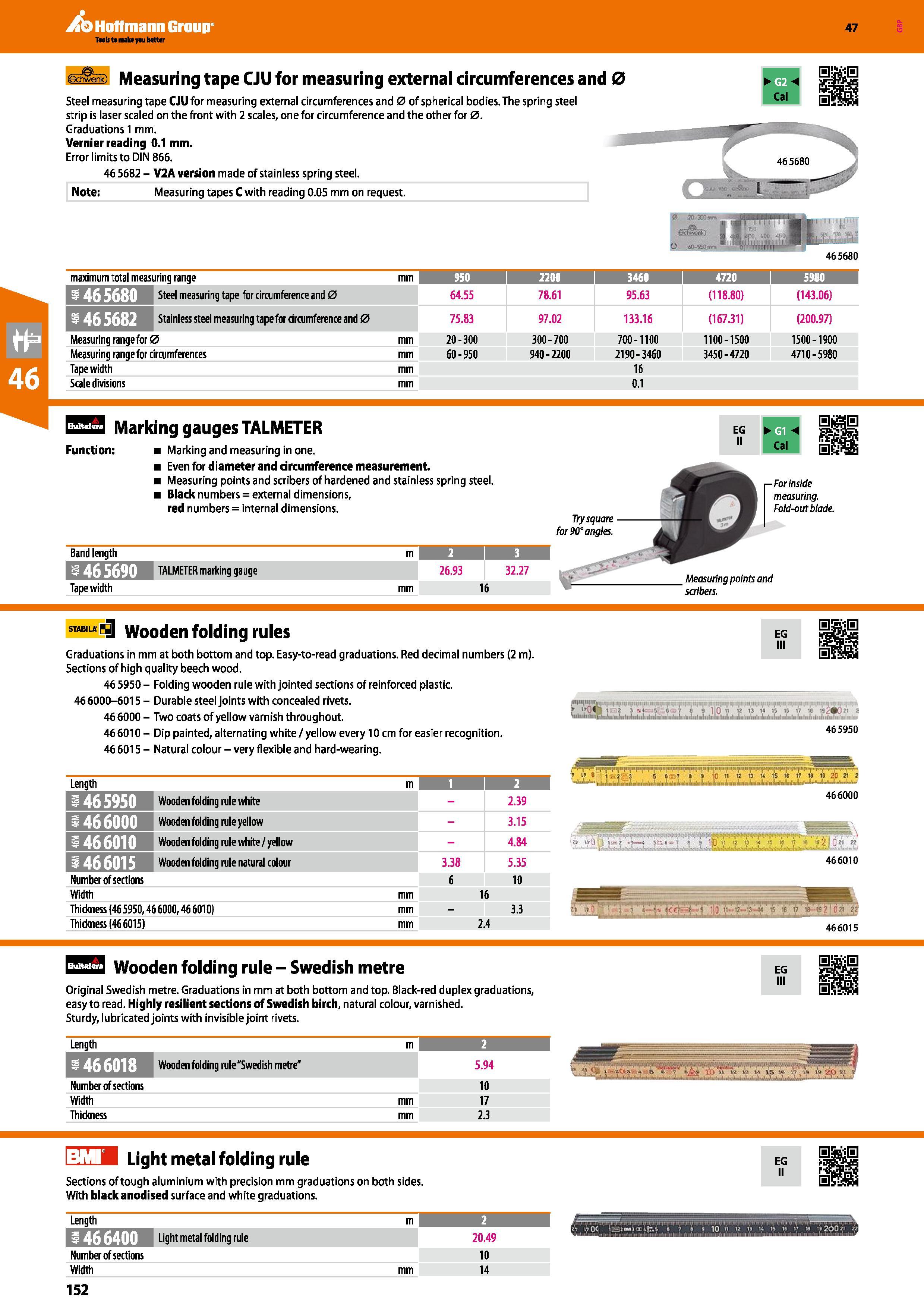

Hoffmann Group 47 Measuring tape CJU for measuring external circumferences and 0 Steel measuring tape CJU for measuring external circumferences and 0 of spherical bodies. The spring steel strip is laser scaled on the front with 2 scales, one for circumference and the other for 0. Graduations 1 mm. Vernier reading 0.1 mm. Error limits to DIN 866. 465682 - V2A version made of stainless spring steel. Note: Measuring tapes C with reading 0.05 mm on request. Tapewidth Scale divisions mm 16 0.1 465680 maximum total measuring range mm 950 I 2201 I 3460 4720 1 5980 fil.'ffliflB Steel measuring tape for circumference and 0 64.55 78.61 95.63 (118.80) (143.06) ETiVffiyJ Stainless steel measuring tape for circumference and 0 75.83 97.02 133.16 (167.31) (200.97) Measuring range for 0 mm 20-300 300-700 700-1100 1100-1500 1500-1900 Measuring range for circumferences mm 60-950 940-2200 2190-3460 3450-4720 4710-5980 Marking gauges TALMETER Function: Marking and measuring in one. Even for diameter and circumference measurement. Measuring points and scribers of hardened and stainless spring steel. Black numbers = external dimensions, red numbers = internal dimensions. Band length m 2 1 3 465690 TALMETER marking gauge 26.93 32.27 Tapewidth 16 Wooden folding rules Graduations in mm at both bottom and top. Easy-to-read graduations. Red decimal numbers (2 m). Sections of high quality beech wood. 46 5950 - Folding wooden rule with jointed sections of reinforced plastic. 46 6000-6015 - Durable steel joints with concealed rivets. 46 6000 - Two coats of yellow varnish throughout. 466010 - Dip painted, alternating white /yellow every 10 cm for easier recognition. 466015 - Natural colour-very flexible and hard-wearing. Thickness (466015) EG III Length m 6-1 'if.' .'Mil Wooden folding rule white - 2.39 EX 'iTr llllll Wooden folding rule yellow - 3.15 '.T.' iHll Wooden folding rule white /yellow - 4.84 jgr.T.IHH Wooden folding rule natural colour 3.38 5.35 Number of sections 6 10 Width mm 16 Thickness (46 5950,46 6000,46 6010) mm 3.3 l,C i t, 0 7 b 9 10” 12 13 1 IS VI % rfnia n mink unlul aliilii in iuliiJi lAiiiinili JnAiiliii :a&iilii In lull til lii ifariii m mm 465950 1 I J t" io n y'STTT'S'TI w' u n 'lc n J 46 6000 ’ 3 1’J n 12 w s : V 'i2 irt fill 466010 2.4 Wooden folding rule - Swedish metre Original Swedish metre. Graduations in mm at both bottom and top. Black-red duplex graduations, easy to read. Highly resilient sections of Swedish birch, natural colour, varnished. Sturdy, lubricated joints with invisible joint rivets. EG III Length m Wooden folding rule"Swedish metre" 5.94 Number of sections 10 Width mm 17 Thickness mm 2.3 Light metal folding rule i Sections of tough aluminium with precision mm graduations on both sides. With black anodised surface and white graduations. EG II Length r.t.t IIIM Light metal folding rule 20.49 Number of sections 10 Width mm 14 152 Measuring points and scribers. Trysquare for 90° angles. -For Inside measuring. Fold-out blade.
