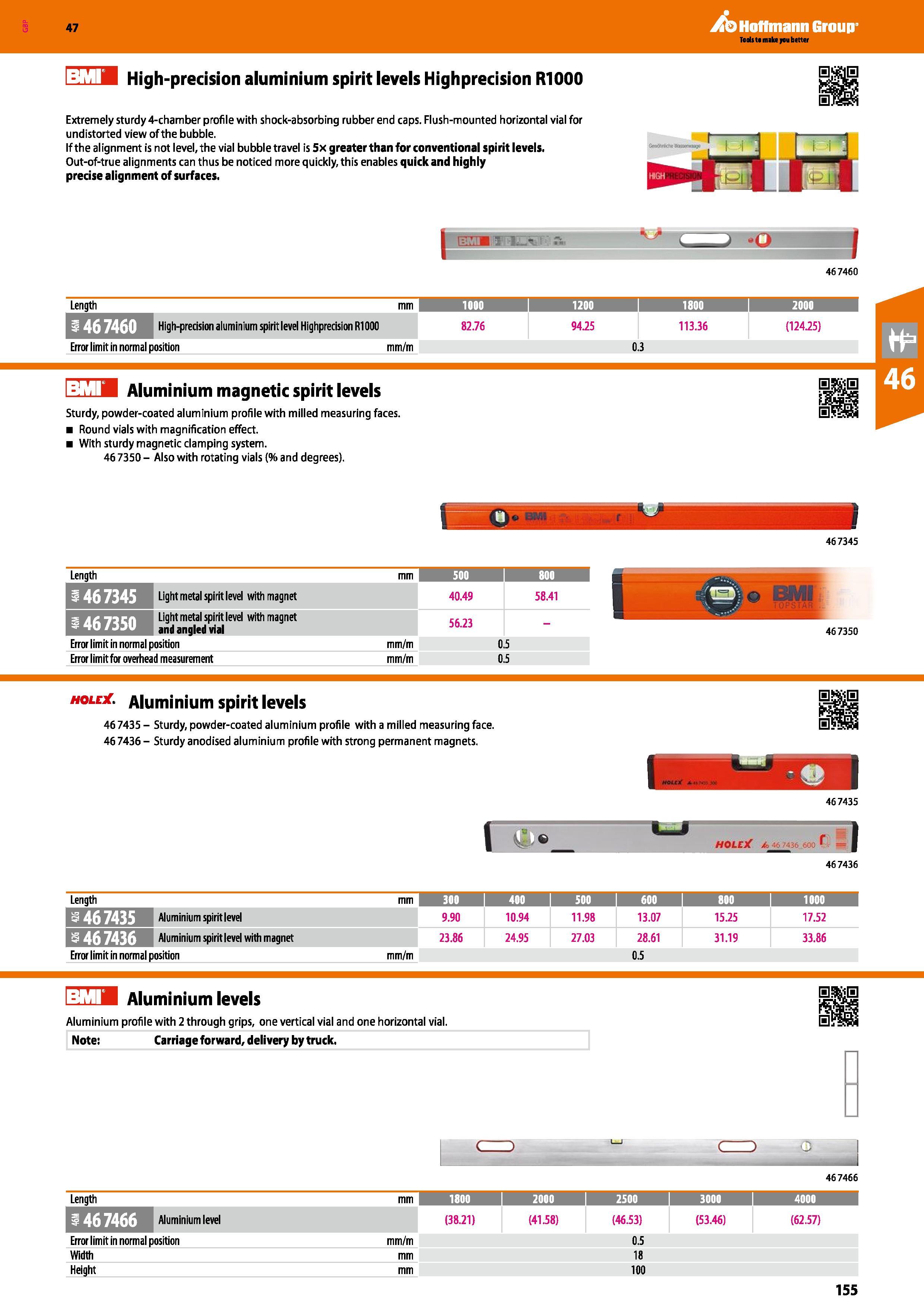

Hoffmann Group 47 I v n I IB High-precision aluminium spirit levels Highprecision R1000 Extremely sturdy 4-chamber profile with shock-absorbing rubber end caps. Flush-mounted horizontal vial for undistorted view of the bubble. If the alignment is not level, the vial bubble travel is 5x greater than for conventional spirit levels. Out-of-true alignments can thus be noticed more quickly, this enables quick and highly precise alignment of surfaces. 467460 Length mm 1000 1200 1800 i 2000 1467460 High-precision aluminium spirit level Highprecision R1000 82.76 94.25 113.36 (124.25) Aluminium magnetic spirit levels i Sturdy, powder-coated aluminium profile with milled measuring faces. Round vials with magnification effect. With sturdy magnetic clamping system. 467350- Also with rotating vials (%and degrees). 467345 Length mm 500 I 800 I Light metal spirit level with magnet 40.49 58.41 1 Light metal spirit level with magnet S&LZfiHfl and angled vial 56.23 Error limit in normal position mm/m 0.5 Error limit for overhead measurement mm/m 0.5 L 467350 holuC. Aluminium spirit levels 46 7435 - Sturdy, powder-coated aluminium profile with a milled measuring face. 46 7436 - Sturdy anodised aluminium profile with strong permanent magnets. 467435 HOLE C /to 467436 Length mm 300 \ 400 i 500 i 600 I 800 i 1000 i Aluminium spirit level 9.90 10.94 11.98 13.07 15.25 17.52 Aluminium spirit level with magnet 23.86 24.95 27.03 28.61 31.19 33.86 Error limit in normal position mm/m 0.5 \-Al\ Aluminium levels Aluminium profile with 2 through grips, one vertical vial and one horizontal vial. Note; Carriage forward, delivery by truck. CZ D 1 1 CZ ZD 6 467466 Length mm 1800 2000 2500 3000 1 4000 1467466 (38.21) (41.58) (46.53) (53.46) (62.57) Error limit in normal position mm/m 0.5 Width mm 18 Height mm 100 155
