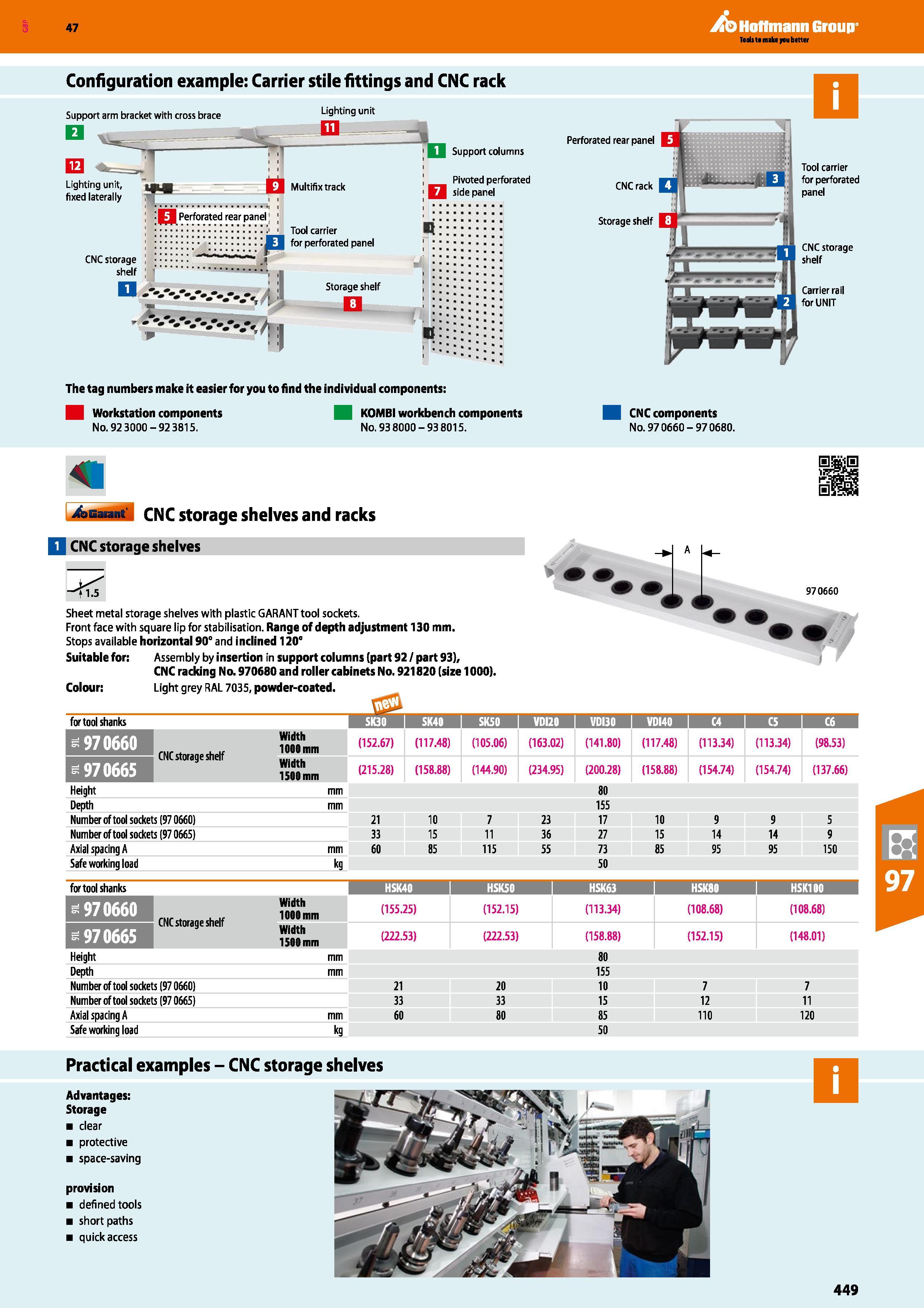

Hoffmann Group 47 Configuration example: Carrier stile fittings and CNC rack Support columns Pivoted perforated Perforated rear panel The tag numbers make it easier for you to find the individual components: Workstation components No. 92 3000-92 3815. KOMBI workbench components No. 93 8000-93 8015. CNC components No. 97 0660-97 0680. bGaiant CNC storage shelves and racks Q CNC storage shelves “Tl.5 Sheet metal storage shelves with plastic GARANT tool sockets. Front face with square lip for stabilisation. Range of depth adjustment 130 mm. Stops available horizontal 90° and inclined 120° Suitable for: Assembly by insertion in support columns (part 92 / part 93), CNC racking Na 970680 and roller cabinets No. 921820 size 1000). Colour: Light grey RAL 7035, powder-coated. .11 970660 for tool shanks 1 SK30 S SK40 S SK50 1 VDI20 1 VDI30 I VDI40 I H 1 cs 1 C6 1 970660 CNC storage shelf Width 1000 mm (152.67) (117.48) (105.06) (163.02) (141.80) (117.48) (113.34) (113.34) (98.53) -970665 Width 1500 mm (215.28) (158.88) (144.90) (234.95) (200.28) (158.88) (154.74) (154.74) (137.66) Height mm 80 Depth mm 155 Number of tool sockets (97 0660) 21 10 7 23 17 10 9 9 5 Number of tool sockets (97 0665) 33 15 11 36 27 15 14 14 9 Axial spacing A mm 60 85 115 55 73 85 95 95 150 Safe working load kg 50 for tool shanks HSK40 HSK50 1 HSK63 i HSK80 i HSK100 j 970660 CNC storage shelf Width 1000 mm (155.25) (152.15) (113.34) (108.68) (108.68) 970665 Width 1500 mm (222.53) (222.53) (158.88) (152.15) (148.01) Height mm 80 Depth mm 155 Number of tool sockets (97 0660) 21 20 10 7 7 Number of tool sockets (97 0665) 33 33 15 12 11 Axial spacing A mm 60 80 85 110 120 Safe working load kg 50 Practical examples - CNC storage shelves Advantages: Storage clear protective space-saving provision defined tools short paths quick access 449
