450 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.450

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 450 0450 ENG Lab2u

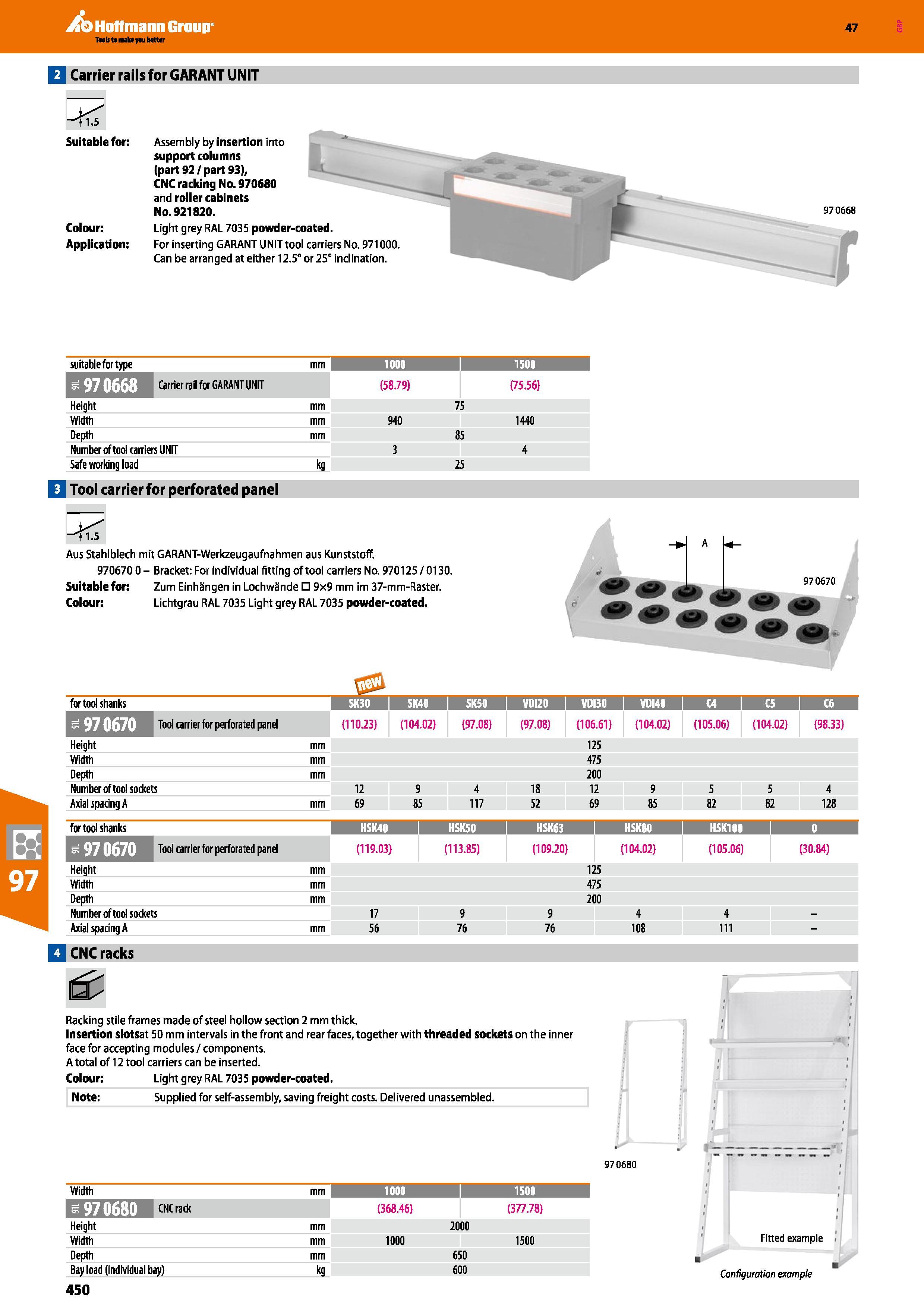

Carrier rails for GARANT UNIT f 1-5 Suitable for: Colour: Application: Assembly by insertion into support columns (part 92 / part 93), CNC racking No. 970680 and roller cabinets No. 921820. Light grey RAL 7035 powder-coated. For inserting GARANT UNIT tool carriers No. 971000 Can be arranged at either 12.5° or 25° inclination. 970668 suitable for type HI iooo 1 1500 I Carrier rail for GARANT UNIT (58.79) (75.56) Height mm 75 Width mm 940 1440 Depth mm 85 Number of tool carriers UNIT 3 4 Safe working load kg 25 Tool carrier for perforated panel "71.5 Aus Stahlblech mit GARANT-Werkzeugaufnahmen aus Kunststoff. 970670 0- Bracket: For individual fitting of tool carriers No. 970125/0130. Suitable for: Zum Einhangen in Lochwande 9x9 mm im 37-mm-Raster. Colour: Lichtgrau RAL 7035 Light grey RAL 7035 powder-coated. IX 970670 for tool shanks SK30 j SK40 I SK50 VDI20 I VDI30 VDI40 14 I C5 1 Rt/JlufTiM Tool carrier for perforated panel (110.23) (104.02) (97.08) (97.08) (106.61) (104.02) (105.06) (104.02) (98.33) Height Width Depth Number of tool sockets Axial spacing A mm 12 69 9 85 4 117 18 52 125 475 200 12 69 9 85 Q CNC racks 5 82 5 82 4 128 for tool shanks H HSK40 HSK50 HSK100 0 I Rt/JlfirTiM Tool carrier for perforated panel (119.03) (113.85) (109.20) (104.02) (105.06) (30.84) Height mm 125 Width mm 475 Depth mm 200 Number of tool sockets 17 9 9 4 4 - Axial spacing A mm 56 76 76 108 111 - Racking stile frames made of steel hollow section 2 mm thick. Insertion slotsat 50 mm intervals in the front and rear faces, together with threaded sockets on the inner face for accepting modules / components. A total of 12 tool carriers can be inserted. Colour: Light grey RAL 7035 powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. 970680 Width mm 1000 I 1500 jj I- 97 0680 (368.46) (377.78) Height mm 2000 Width mm 1000 1500 Depth mm 650 Bay load (individual bay) kg 600 Fitted example Configuration example 450
