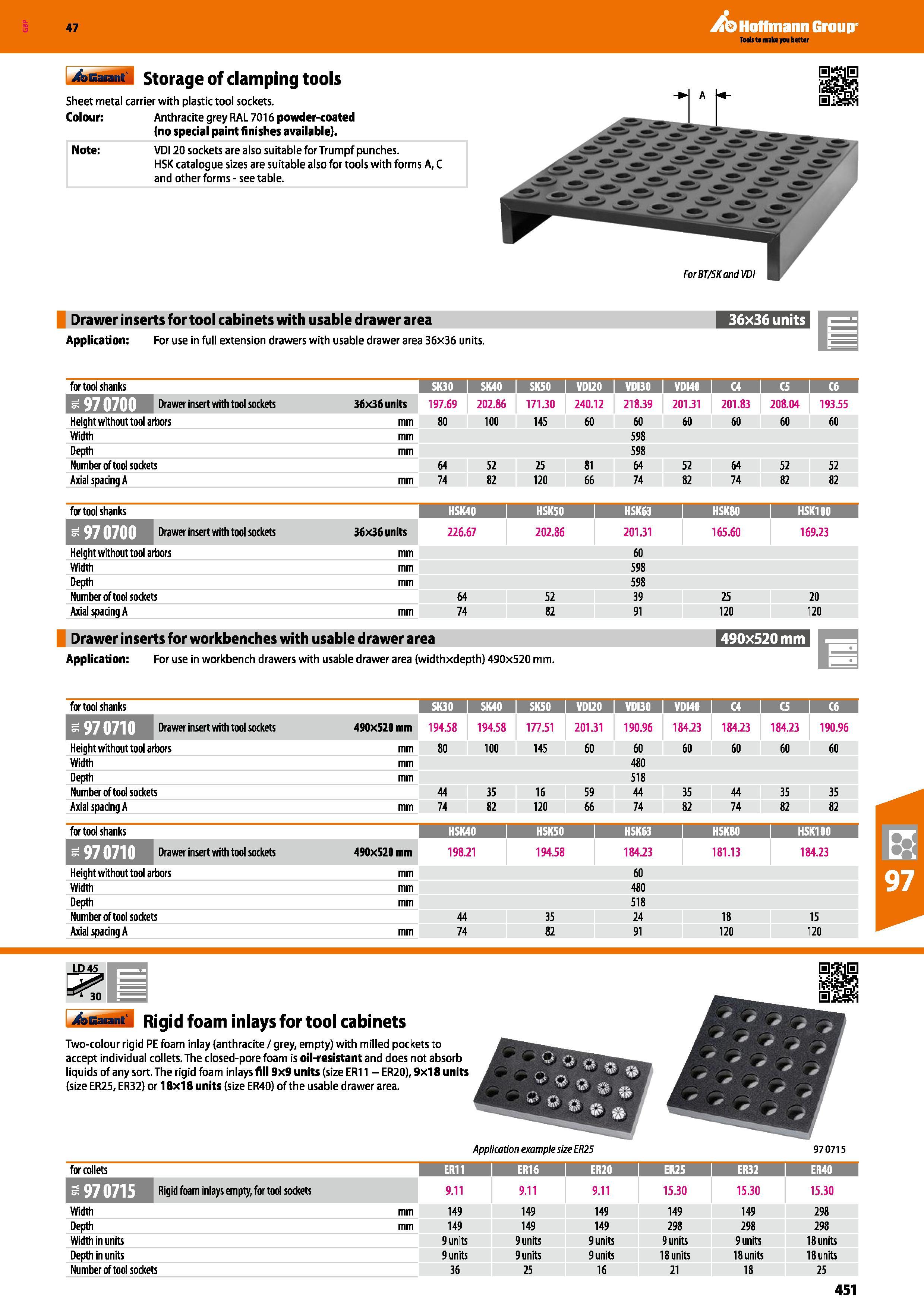

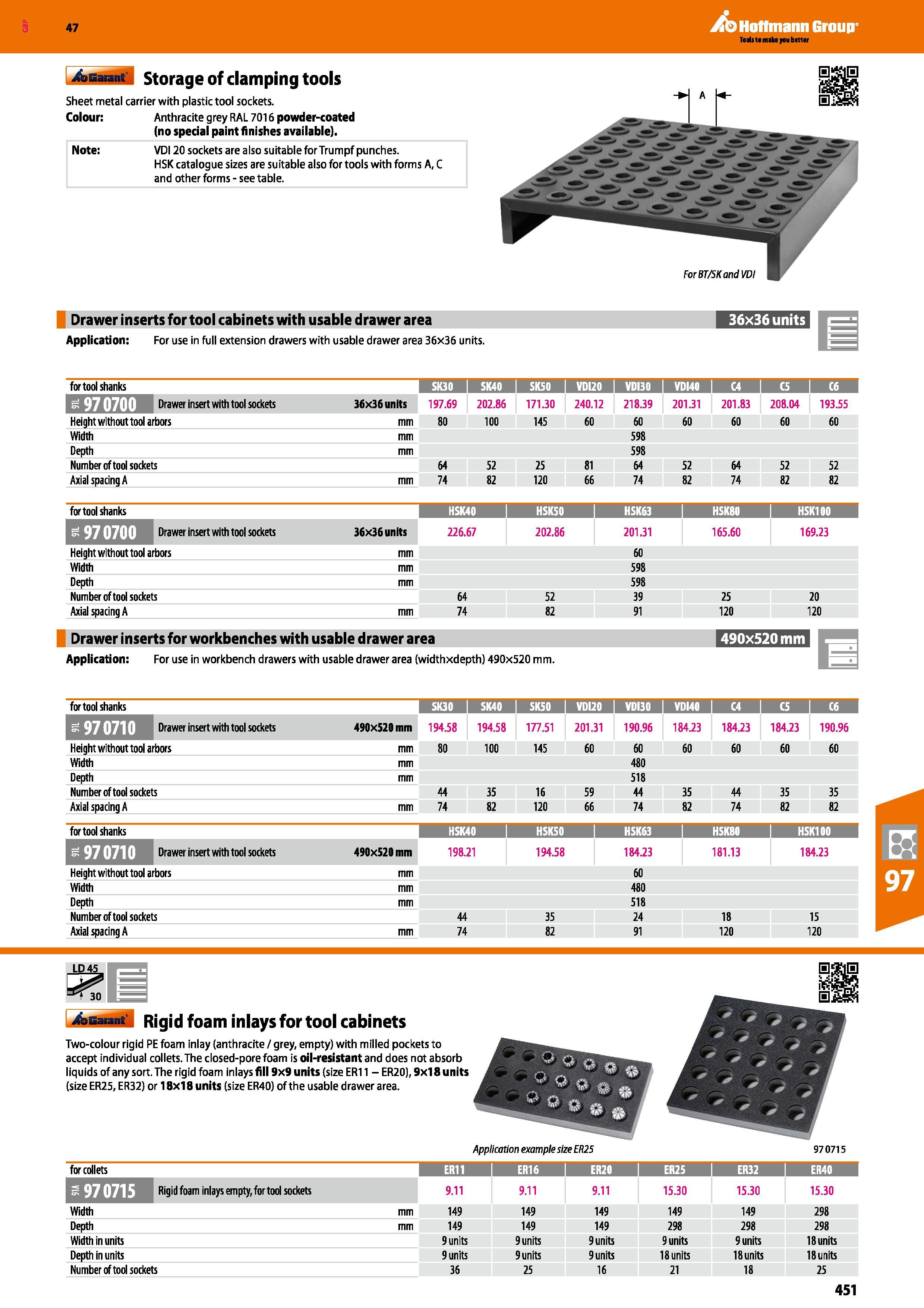

Hoffmann Group 47 4anu M Storage of clamping tools Sheet metal carrier with plastic tool sockets. Colour: Anthracite grey RAL 7016 powder-coated (no special paint finishes available). Note: VDI20 sockets are also suitable for Trumpf punches. HSK catalogue sizes are suitable also for tools with forms A, C and other forms - see table. Drawer inserts for tool cabinets with usable drawer area 36x36 units 1 1 Application: For use in full extension drawers with usable drawer area 36x36 units. Is for tool shanks 1 SK30 1 SK40 1 SK50 1 VDI20 I VDI30 1 VDI40 i C4 C5 c gLVJlWmV Drawer insert with tool sockets 36x36 units 197.69 202.86 171.30 240.12 218.39 201.31 201.83 208.04 193.55 Height without tool arbors mm 80 100 145 60 60 60 60 60 60 Width mm 598 Depth mm 598 Number of tool sockets 64 52 25 81 64 52 64 52 52 Axial spacing A mm 74 82 120 66 74 82 74 82 82 for tool shanks I HSK40 HSK50 HSK63 HSK100 g&VJIHmH Drawer insert with tool sockets 36x36 units 226.67 202.86 201.31 165.60 169.23 Height without tool arbors mm 60 Width mm 598 Depth mm 598 Number of tool sockets 64 52 39 25 20 Axial spacing A mm 74 82 91 120 120 Drawer inserts for workbenches with usable drawer area Application: For use in workbench drawers with usable drawer area (widthxdepth) 490x520 mm. 1490x520 mm 1 for tool shanks I SK30 1 SK40 I SK50 1 VDI20 I VDI30 1 VDI40 I C4 1 C5 C6 El>'/jl/J lB Drawer insert with tool sockets 490x520 mm 194.58 194.58 177.51 201.31 190.96 184.23 184.23 184.23 190.96 Height without tool arbors mm 80 100 145 60 60 60 60 60 60 Width mm 480 Depth mm 518 Number of tool sockets 44 35 16 59 44 35 44 35 35 Axial spacing A mm 74 82 120 66 74 82 74 82 82 for tool shanks HSK50 I HSK63 I HSK80 I HSK100 B-'/ll/j lB Drawer insert with tool sockets 490x520 mm 198.21 194.58 184.23 181.13 184.23 Height without tool arbors mm 60 Width mm 480 Depth mm 518 Number of tool sockets 44 35 24 18 15 Axial spacing A mm 74 82 91 120 120 Rigid foam inlays for tool cabinets Two-colour rigid PE foam inlay (anthracite / grey, empty) with milled pockets to accept individual collets. The closed-pore foam is oil-resistant and does not absorb liquids of any sort. The rigid foam inlays fill 9x9 units (size ER11 - ER20), 9x18 units (size ER25, ER32) or 18x18 units (size ER40) of the usable drawer area. Application example size ER25 970715 for collets 1 ER11 ER16 I ER20 i ER25 ER32 I ER40 f Rigid foam inlays empty, for tool sockets 9.11 9.11 9.11 15.30 15.30 15.30 Width mm 149 149 149 149 149 298 Depth mm 149 149 149 298 298 298 Width in units 9 units 9 units 9 units 9 units 9 units 18 units Depth in units 9 units 9 units 9 units 18 units 18 units 18 units Number of tool sockets 36 25 16 21 18 25 451
