454 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.454

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 454 0454 ENG Lab2u

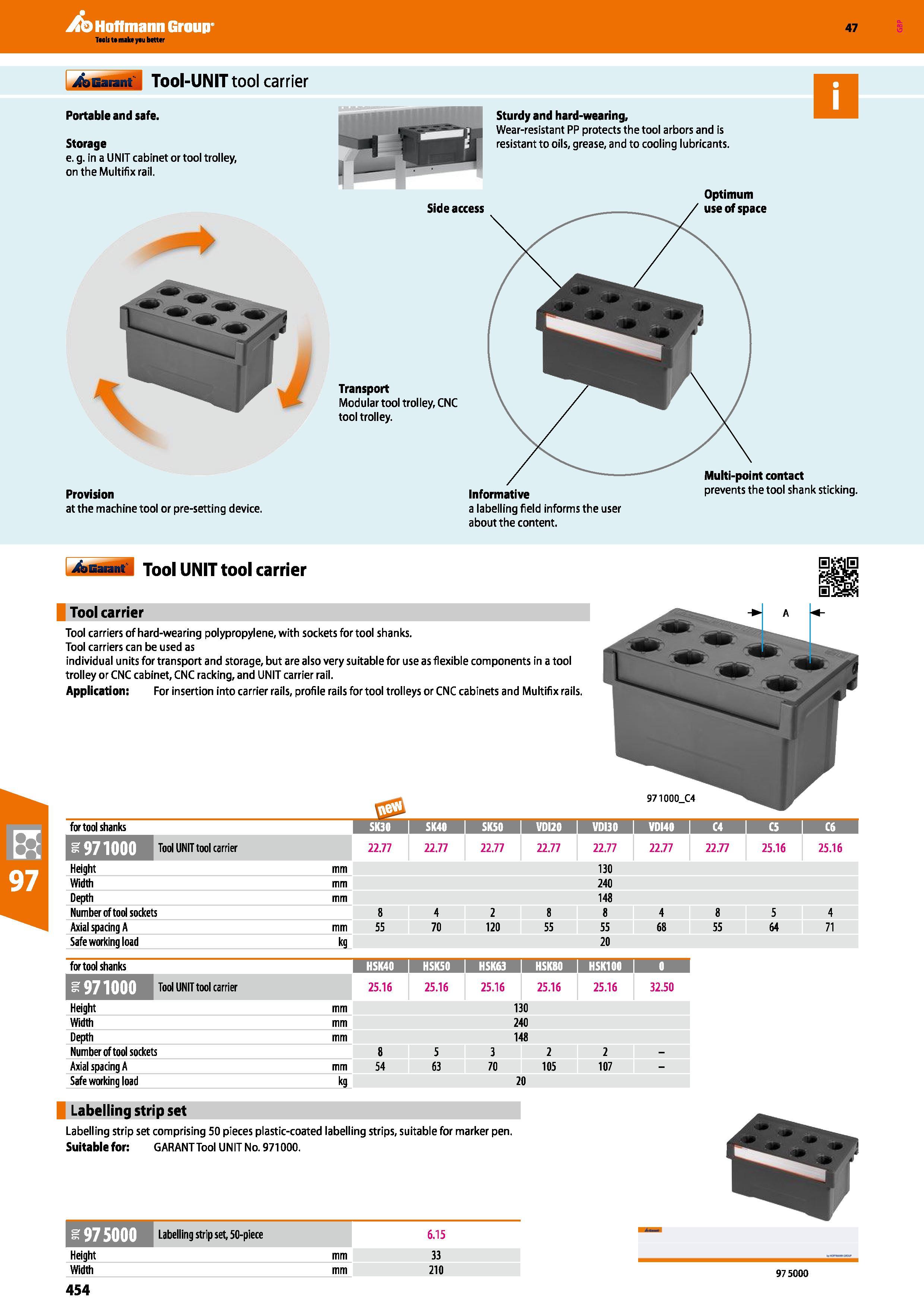

Hoffmann Group 47 4sBa m Tool-UNIT tool carrier Portable and safe. Storage e. g. in a UNIT cabinet or tool trolley, on the Multifix rail. Sturdy and hard-wearing. Wear-resistant PP protects the tool arbors and is resistant to oils, grease, and to cooling lubricants. Side access Optimum use of space Transport Modular tool trolley, CNC tool trolley. Provision at the machine tool or pre-setting device. Informative a labelling field informs the user about the content. Multi-point contact prevents the tool shank sticking. Tool UNIT tool carrier Tool carrier Tool carriers of hard-wearing polypropylene, with sockets for tool shanks. Tool carriers can be used as individual units for transport and storage, but are also very suitable for use as flexible components in a tool trolley or CNC cabinet, CNC racking, and UNIT carrier rail. Application: For insertion into carrier rails, profile rails for tool trolleys or CNC cabinets and Multifix rails. I for tool shanks SK30 SK40 i SK50 I VDI20 I 971000 22.77 22.77 22.77 22.77 Height mm Width mm Depth mm Number of tool sockets 8 4 2 8 Axial spacing A mm 55 70 120 55 Safe working load kg for tool shanks HSK50 s971000 25.16 25.16 25.16 25.16 Height Width Depth Number of tool sockets Axial spacing A Safe working load mm kg 54 5 63 130 240 148 3 2 70 105 20 Labelling strip set Labelling strip set comprising 50 pieces plastic-coated labelling strips, suitable for marker pen. Suitable for: GARANTTool UNIT No. 971000. irrrfrlTB Labelling strip set, 50-piece 6.15 Height mm 33 Width mm 210 97 5000 454 VDI30 VDI40
