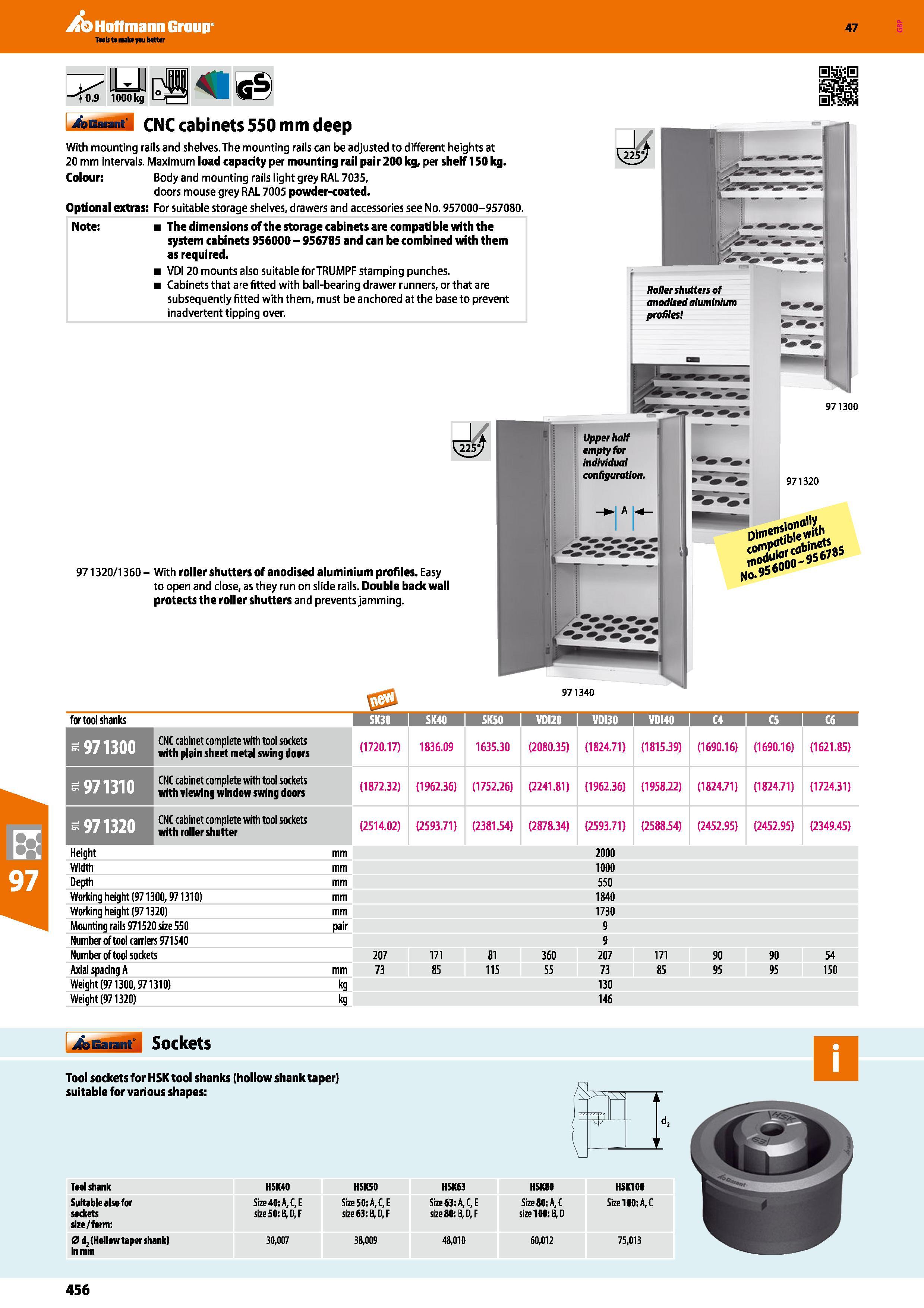

Hoffmann Group 47 <0.9 1000 kg 4asat M CNC cabinets 550 mm deep With mounting rails and shelves. The mounting rails can be adjusted to different heights at 20 mm intervals. Maximum load capacity per mounting rail pair 200 kg, per shelf 150 kg. Colour: Body and mounting rails light grey RAL 7035, doors mouse grey RAL 7005 powder-coated. Optional extras: For suitable storage shelves, drawers and accessories see No. 957000-957080. Note: The dimensions of the storage cabinets are compatible with the system cabinets 956000 - 956785 and can be combined with them as required. VDI20 mounts also suitable for TRUMPF stamping punches. Cabinets that are fitted with ball-bearing drawer runners, or that are subsequently fitted with them, must be anchored at the base to prevent inadvertent tipping over. Roller shutters of anodlsed aluminium profiles ; Upper half empty for individual configuration. Hi 971320/1360 - With roller shutters of anodised aluminium profiles. Easy to open and close, as they run on slide rails. Double back wall protects the roller shutters and prevents jamming. 971300 971320 Vs8S 5, sgssss 971340 for tool shanks SK30 SK40 i SK50 I VDI20 I VDI30 I VDI40 i i C3 I C6 -971300 CNC cabinet complete with tool sockets with plain sheet metal swing doors (1720.17) 1836.09 1635.30 (2080.35) (1824.71) (1815.39) (1690.16) (1690.16) (1621.85) -971310 CNC cabinet complete with tool sockets with viewing window swing doors (1872.32) (1962.36) (1752.26) (2241.81) (1962.36) (1958.22) (1824.71) (1824.71) (1724.31) -971320 CNC cabinet complete with tool sockets with roller shutter (2514.02) (2593.71) (2381.54) (2878.34) (2593.71) (2588.54) (2452.95) (2452.95) (2349.45) Height Width Depth Working height (971300,971310) Working height (971320) Mounting rails 971520 size 550 Number of tool carriers 971540 Number of tool sockets Axial spacing A Weight (971300,971310) Weight (971320) mm pair 207 mm 73 kg kg 171 85 81 115 360 55 2000 1000 550 1840 1730 9 9 207 73 130 146 171 85 90 95 90 95 54 150 Garant Sockets Tool sockets for HSK tool shanks (hollow shank taper) suitable for various shapes: q 12 i Tool shank HSK40 HSK50 HSK63 HSK80 HSK100 Suitable also for sockets size/form: Size 40: A, C, E size 50: B, D, F Size 50: A, C, E size 63: B, D, F Size 63: A, C, E size 10: B, D, F Size 80: A, C size 100: B, D Size 100: A, C 0 d; (Hollow taper shank) in mm 30,007 38,009 48,010 60,012 75,013 456
