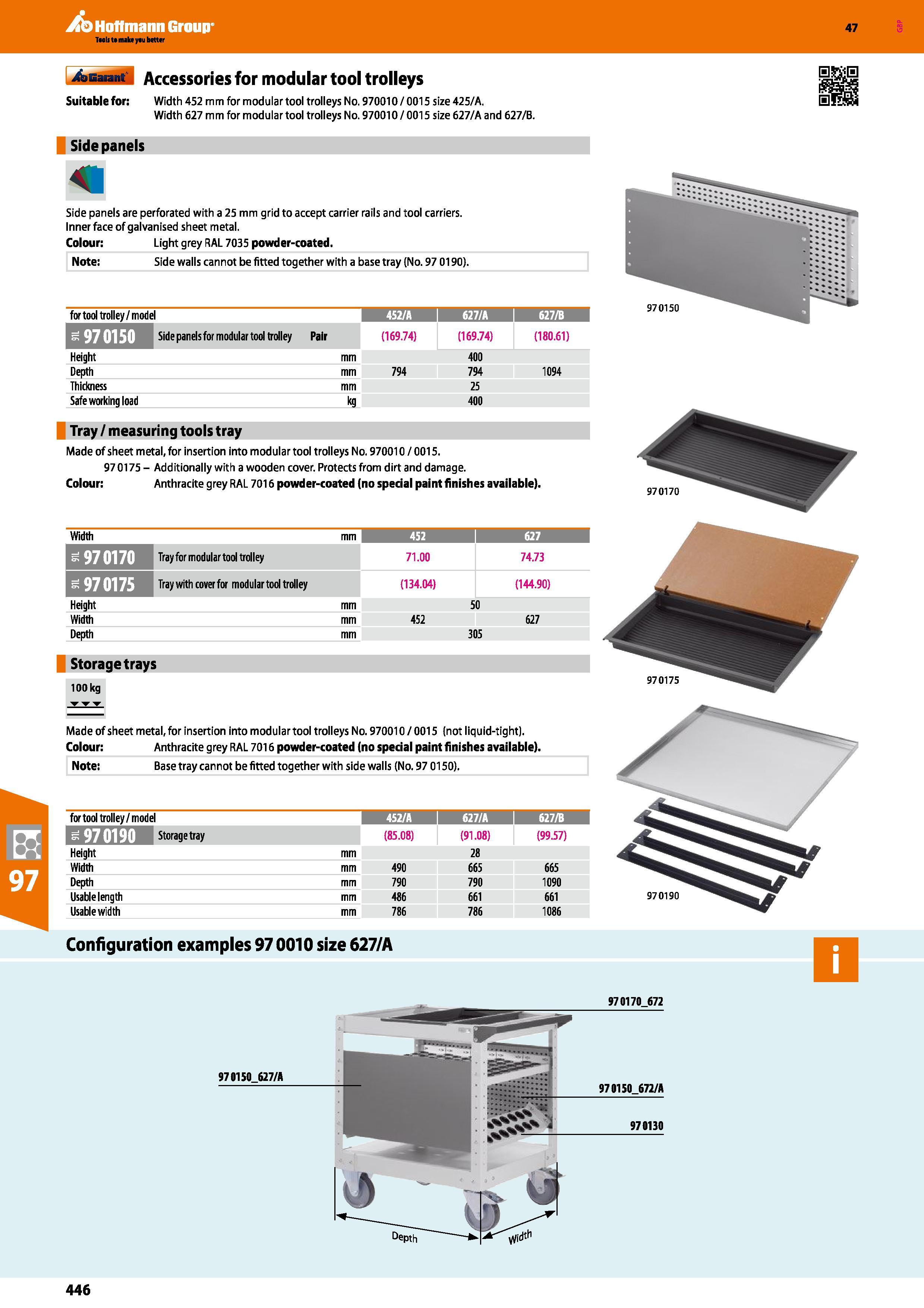

Hoffmann Group 47 A&b&mM Accessories for modular tool trolleys Suitable for: Width 452 mm for modular tool trolleys No. 970010/0015 size 425/A. Width 627 mm for modular tool trolleys No. 970010/0015 size 627/A and 627/B. Side panels Side panels are perforated with a 25 mm grid to accept carrier rails and tool carriers. Inner face of galvanised sheet metal. Colour: Light grey RAL 7035 powder-coated. Note: Side walls cannot be fitted together with a base tray (No. 97 0190). for tool trolley/model 1 452/A i 627/A i 627/B 3 Side panels for modular tool trolley Pair (169.74) (169.74) (180.61) Height mm 400 Depth mm 794 794 1094 Thickness mm 25 Safe working load kg 400 Tray / measuring tools tray Made of sheet metal, for insertion into modular tool trolleys No. 970010/0015. 970175 - Additionally with a wooden cover. Protects from dirt and damage. Colour: Anthracite grey RAL 7016 powder-coated (no special paint finishes available). 970150 Width mm 452 I 627 EH-'/ll) TlM Tray for modular tool trolley 71.00 74.73 E -'/ 1 Tray with cover for modular tool trolley (134.04) (144.90) Height mm 50 Width mm 452 627 Depth Storage trays 305 100 kg Made of sheet metal, for insertion into modular tool trolleys No. 970010 / 0015 (not liquid-tight). Colour: Anthracite grey RAL 7016 powder-coated (no special paint finishes available). Note: Base tray cannot be fitted together with side walls (No. 97 0150). for tool trolley/model 1 452/A i 627/A I 627/B N 970190 EBS (85.08) (91.08) (99.57) Height mm 28 Width mm 490 665 665 Depth mm 790 790 1090 Usable length mm 486 661 661 Usable width mm 786 786 1086 970190 Configuration examples 97 0010 size 627/A 970170_672 970150 627/A 97 0150_672/A 970130 970170 970175 446
