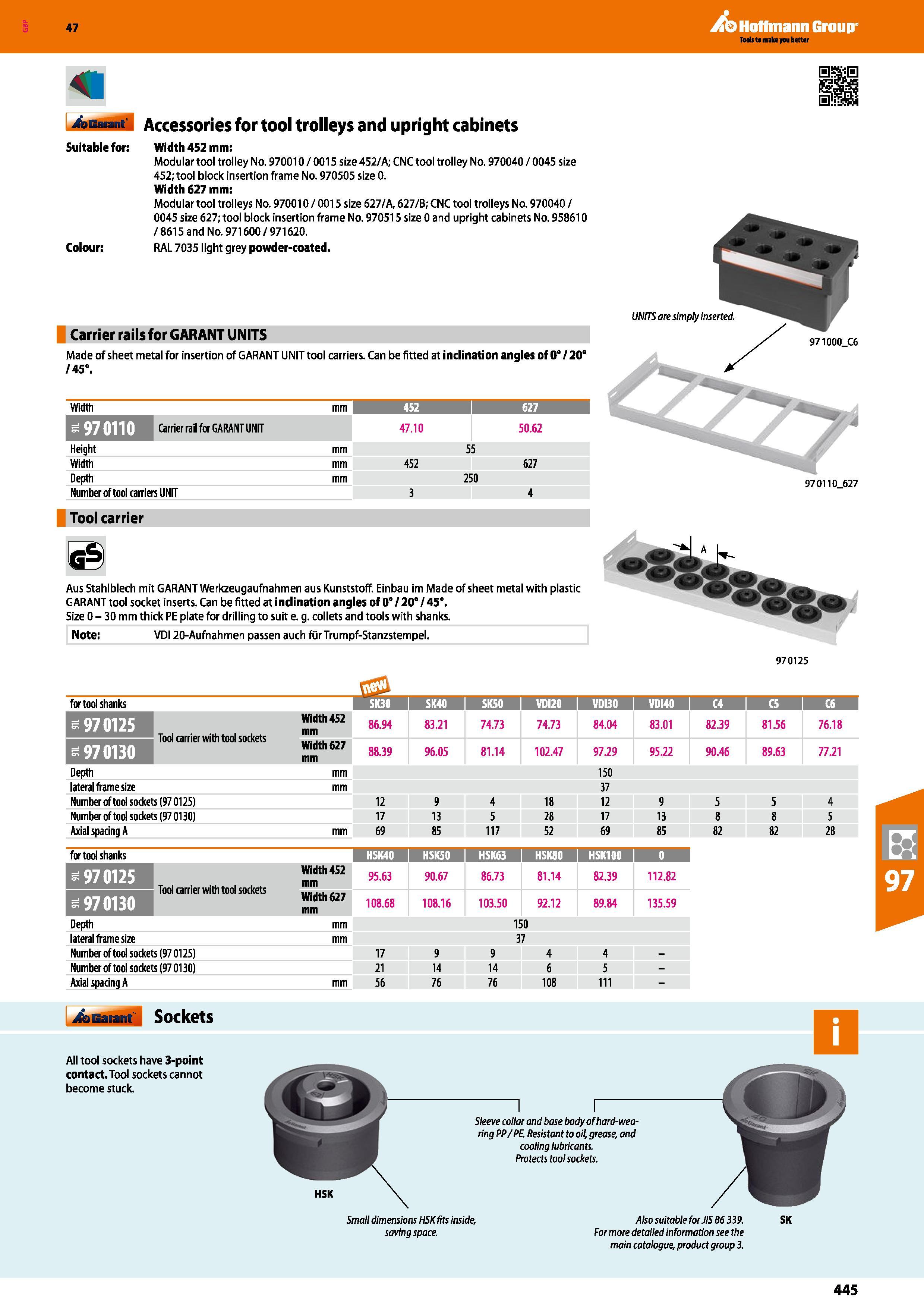

Garant Accessories for tool trolleys and upright cabinets Suitablefor: Width 452 mm: Modular tool trolley No. 970010 / 0015 size 452/A; CNC tool trolley No. 970040 / 0045 size 452; tool block insertion frame No. 970505 size 0. Width 627 mm; Modular tool trolleys No. 970010 / 0015 size 627/A, 627/B; CNC tool trolleys No. 970040 / 0045 size 627; tool block insertion frame No. 970515 size 0 and upright cabinets No. 958610 / 8615 and No. 971600 / 971620. Colour: RAL 7035 light grey powder-coated. Carrier rails for GARANT UNITS Made of sheet metal for insertion of GARANT UNIT tool carriers. Can be fitted at inclination angles of 0°/20° 745°. Width SI 452 I 627 1 Carrier rail for GARANT UNIT 47.10 50.62 Height mm 55 Width mm 452 627 Depth mm 250 Number of tool carriers UNIT 3 4 97 0110_627 Tool carrier Aus Stahlblech mit GARANT Werkzeugaufnahmen aus Kunststoff. Einbau im Made of sheet metal with plastic GARANT tool socket inserts. Can be fitted at inclination angles of 0° / 20° / 45". Size 0-30 mm thick PE plate for drilling to suit e. g. collets and tools with shanks. Note; VDI 20-Aufnahmen passen auch fur Trumpf-Stanzstempel. 970125 for tool shanks MM SK40 I SK50 1 VDI20 1 VDI30 C4 C5 I C6 -970125 Width 452 86.94 83.21 74.73 74.73 84.04 83.01 82.39 81.56 76.18 970130 Tool carrier with tool sockets j.l . _ _ Width 62/ mm 88.39 96.05 81.14 102.47 97.29 95.22 90.46 89.63 77.21 Depth mm 150 lateral frame size mm 37 Number of tool sockets (97 0125) 12 9 4 18 12 9 5 5 4 Number of tool sockets (97 0130) 17 13 5 28 17 13 8 8 5 Axial spacing A mm 69 85 117 52 69 85 82 82 28 for tool shanks 1 HSK40 I HSK50 HSK63 iim HSK100 0 -970125 Width 452 mm 95.63 90.67 86.73 81.14 82.39 112.82 970130 Tool carrier with tool sockets Width 627 mm 108.68 108.16 103.50 92.12 89.84 135.59 Depth mm 150 lateral frame size mm 37 Number of tool sockets (97 0125) 17 9 9 4 4 - Number of tool sockets (97 0130) 21 14 14 6 5 - Axial spacing A mm 56 76 76 108 111 - Sockets All tool sockets have 3-point contact. Tool sockets cannot become stuck. Sleeve collar and base body ofhard-wea-ring PP/PE. Resistant to oil, grease, and cooling lubricants. Protects tool sockets. Small dimensions HSK fits inside, saving space. Also suitable for JISB6 339. SK For more detailed information see the main catalogue, product group 3.
