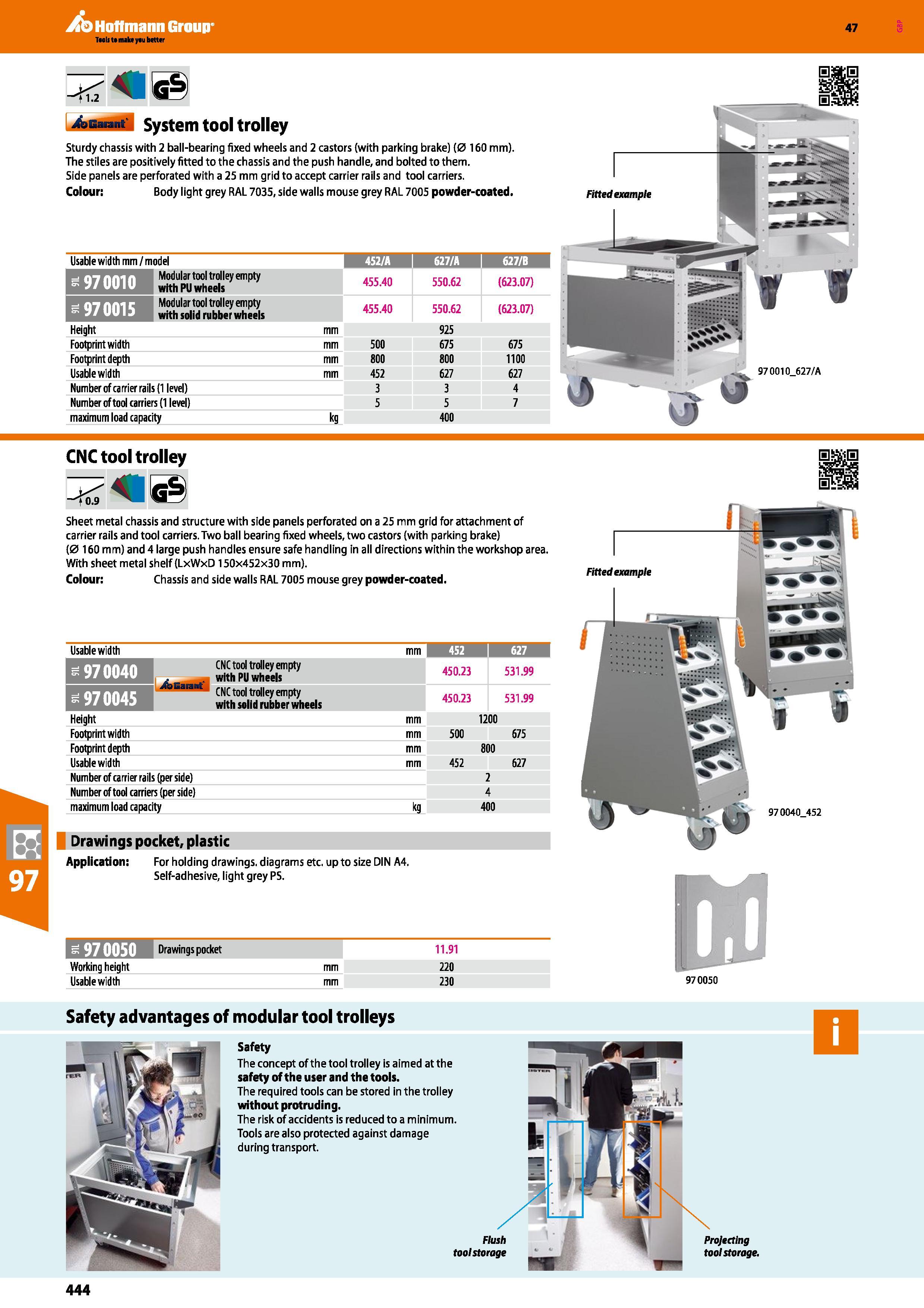

Hoffmann Group 47 <1.2 Garant System tool trolley Sturdy chassis with 2 ball-bearing fixed wheels and 2 castors (with parking brake) (0 160 mm). The stiles are positively fitted to the chassis and the push handle, and bolted to them. Side panels are perforated with a 25 mm grid to accept carrier rails and tool carriers. Colour: Body light grey RAL 7035, side walls mouse grey RAL 7005 powder-coated. Usable width mm /model 1 452/A i 627/A 1 627/B (WCTJfJWJ Modular tool trolley empty with PU wheels 455.40 550.62 (623.07) pWWfffWH Modular tool trolley empty with solid rubber wheels 455.40 550.62 (623.07) Height mm 925 Footprint width mm 500 675 675 Footprint depth mm 800 800 1100 Usable width mm 452 627 627 Number of carrier rails (1 level) 3 3 4 Number of tool carriers (1 level) 5 5 7 maximum load capacity kg 400 970010_627/A CNC tool trolley t 0.9 Sheet metal chassis and structure with side panels perforated on a 25 mm grid for attachment of carrier rails and tool carriers. Two ball bearing fixed wheels, two castors (with parking brake) (0 160 mm) and 4 large push handles ensure safe handling in all directions within the workshop area. With sheet metal shelf (LxWxD 150x452x30 mm). Colour: Chassis and side walls RAL 7005 mouse grey powder-coated. Usable width mm 452 I 627 CNC tool trolley empty jl with PU wheels 450.23 531.99 L'feEaiait CNC tool trolley empty with solid rubber wheels 450.23 531.99 Height mm 1200 Footprint width mm 500 675 Footprint depth mm 800 Usable width mm 452 627 Number of carrier rails (per side) Number of tool carriers (per side) maximum load capacity 2 4 400 Drawings pocket, plastic Application: For holding drawings, diagrams etc. up to size DIN A4. Self-adhesive, light grey PS. 1-970050 l M il,l.U.m 11.91 Working height mm 220 Usable width mm 230 970050 Safety advantages of modular tool trolleys Projecting toolstorage. Flush toolstorage Safety The concept of the tool trolley is aimed at the safety of the user and the tools. The required tools can be stored in the trolley without protruding. The risk of accidents is reduced to a minimum. Tools are also protected against damage during transport. 444
