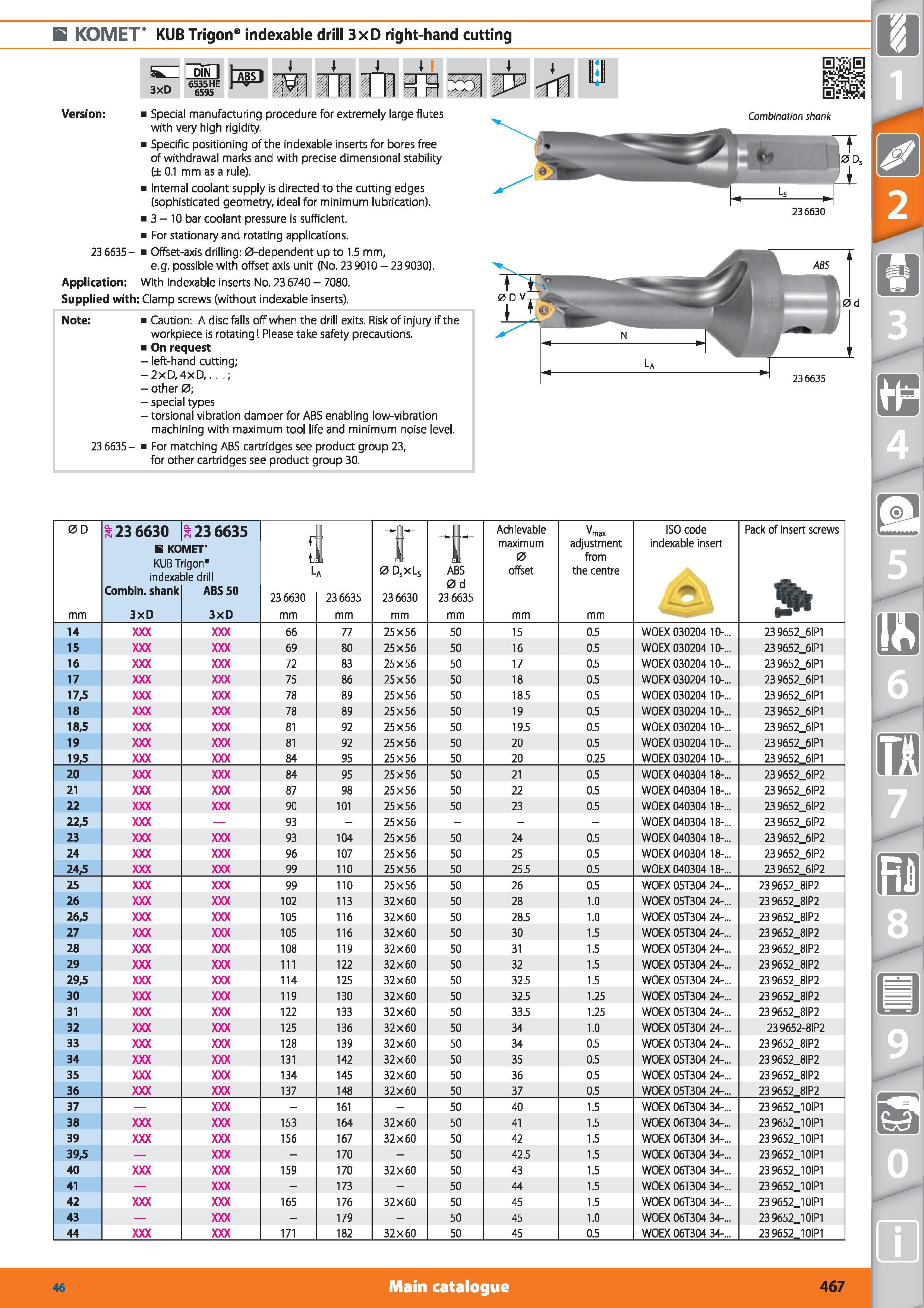

Trigon indexable drill KOMET KUB 3xD right-hand cutting tap 3xD 6535 HE 6595 Version Special manufacturing procedure for extremely large flutes with very high rigidity. Specific positioning of the indexable inserts for bores free of withdrawal marks and with precise dimensional stability (± 0.1 mm as a rule). Internal coolant supply is directed to the cutting edges (sophisticated geometry, ideal for minimum lubrication). 3 - 10 bar coolant pressure is sufficient. For stationary and rotating applications. 23 6635- Offset-axis drilling 0-dependent up to 1.5 mm, e.g. possible with offset axis unit (No. 239010 - 239030). Application With indexable inserts No. 23 6740 - 7080. Supplied with Clamp screws (without indexable inserts). Note Caution A disc falls off when the drill exits. Risk of injury if the workpiece is rotating Please take safety precautions. On request - left-hand cutting; -2xD,4xD,. .; - other 0; - special types - torsional vibration damper for ABS enabling low-vibration machining with maximum tool life and minimum noise level. 23 6635- For matching ABS cartridges see product group 23, for other cartridges see product group 30. N H r t La 23 6635 m\ 00 a 23 6630 H KO KUBT indexa Combin. shank s 23 6635 MET" rigon ale drill ABS 50 i L 23 6630 1 A 236635 T 0 DSXLS 236630 1 AB 0 23 6 5 d 535 Achievable maximum 0 offset V max adjustment from the centre ISO code indexable insert Pack of insert screws mm 3xD 3xD mm 14 66 77 25x56 50 15 0.5 WOEX 030204 10-. 239652_6IP1 15 69 80 25X56 50 16 0.5 WOEX 030204 10-. 23 9652_6IP1 16 72 83 25x56 50 17 0.5 WOEX 030204 10-. 239652_6IP1 17 75 86 25X56 50 18 0.5 WOEX 030204 10-. 23 9652_6IP1 17,5 78 89 25X56 50 18.5 0.5 WOEX 030204 10-. 23 9652_6IP1 18 78 89 25X56 50 19 0.5 WOEX 030204 10-. 239652_6IP1 18,5 81 92 25X56 50 19.5 0.5 WOEX 030204 10-. 239652_6IP1 19 81 92 25x56 50 20 0.5 WOEX 030204 10-. 23 9652_6IP1 19,5 84 95 25X56 50 20 0.25 WOEX 030204 10-. 239652_6IP1 20 84 95 25x56 50 21 0.5 WOEX 040304 18-. 23 9652_6IP2 21 87 98 25X56 50 22 0.5 WOEX 040304 18-. 239652_6IP2 22 90 101 25x56 50 23 0.5 WOEX 040304 18-. 23 9652_6IP2 22,5 93 - 25X56 WOEX 040304 18-. 239652_6IP2 23 93 104 25x56 50 24 0.5 WOEX 040304 18-. 23 9652_6IP2 24 96 107 25X56 50 25 0.5 WOEX 040304 18-. 23 9652_6IP2 24,5 99 110 25X56 50 25.5 0.5 WOEX 040304 18-. 239652 6IP2 25 99 110 25X56 50 26 0.5 WOEX 05T304 24-. 23 9652_8IP2 26 102 113 32X60 50 28 1.0 WOEX 05T304 24-. 23 9652_8IP2 26,5 105 116 32x60 50 28.5 1.0 WOEX 05T304 24-. 23 9652_8IP2 27 105 116 32X60 50 30 1.5 WOEX 05T304 24-. 23 9652_8IP2 28 108 119 32x60 50 31 1.5 WOEX 05T304 24-. 23 9652_8IP2 29 111 122 32X60 50 32 1.5 WOEX 05T304 24-. 23 9652_8IP2 29,5 114 125 32x60 50 32.5 1.5 WOEX 05T304 24-. 23 9652_8IP2 30 119 130 32X60 50 32.5 1.25 WOEX 05T304 24-. 23 9652_8IP2 31 122 133 32X60 50 33.5 1.25 WOEX 05T304 24-. 23 9652_8IP2 32 125 136 32x60 50 34 1.0 WOEX 05T304 24-. 23 9652-81P2 33 128 139 32X60 50 34 0.5 WOEX 05T304 24-. 23 9652_8IP2 34 131 142 32X60 50 35 0.5 WOEX 05T304 24-. 23 9652_8IP2 35 134 145 32X60 50 36 0.5 WOEX 05T304 24-. 23 9652_8IP2 36 137 148 32x60 50 37 0.5 WOEX 05T304 24-. 23 9652_8IP2 37 - 161 - 50 40 1.5 WOEX 06T304 34-. 239652J0IP1 38 153 164 32x60 50 41 1.5 WOEX 06T304 34-. 23 9652 10IP1 39 156 167 32X60 50 42 1.5 WOEX 06T304 34-. 239652J0IP1 39,5 - 170 - 50 42.5 1.5 WOEX 06T304 34-. 239652J0IP1 40 159 170 32X60 50 43 1.5 WOEX 06T304 34-. 239652J0IP1 41 - 173 - 50 44 1.5 WOEX 06T304 34-. 23 9652 10IP1 42 165 176 32X60 50 45 1.5 WOEX 06T304 34-. 239652J0IP1 43 - 179 - 50 45 1.0 WOEX 06T304 34-. 23 9652 10IP1 44 171 182 32X60 50 45 0.5 WOEX 06T304 34-. 239652J0IP1 Main catalogue Hoffmann Group 46 467
