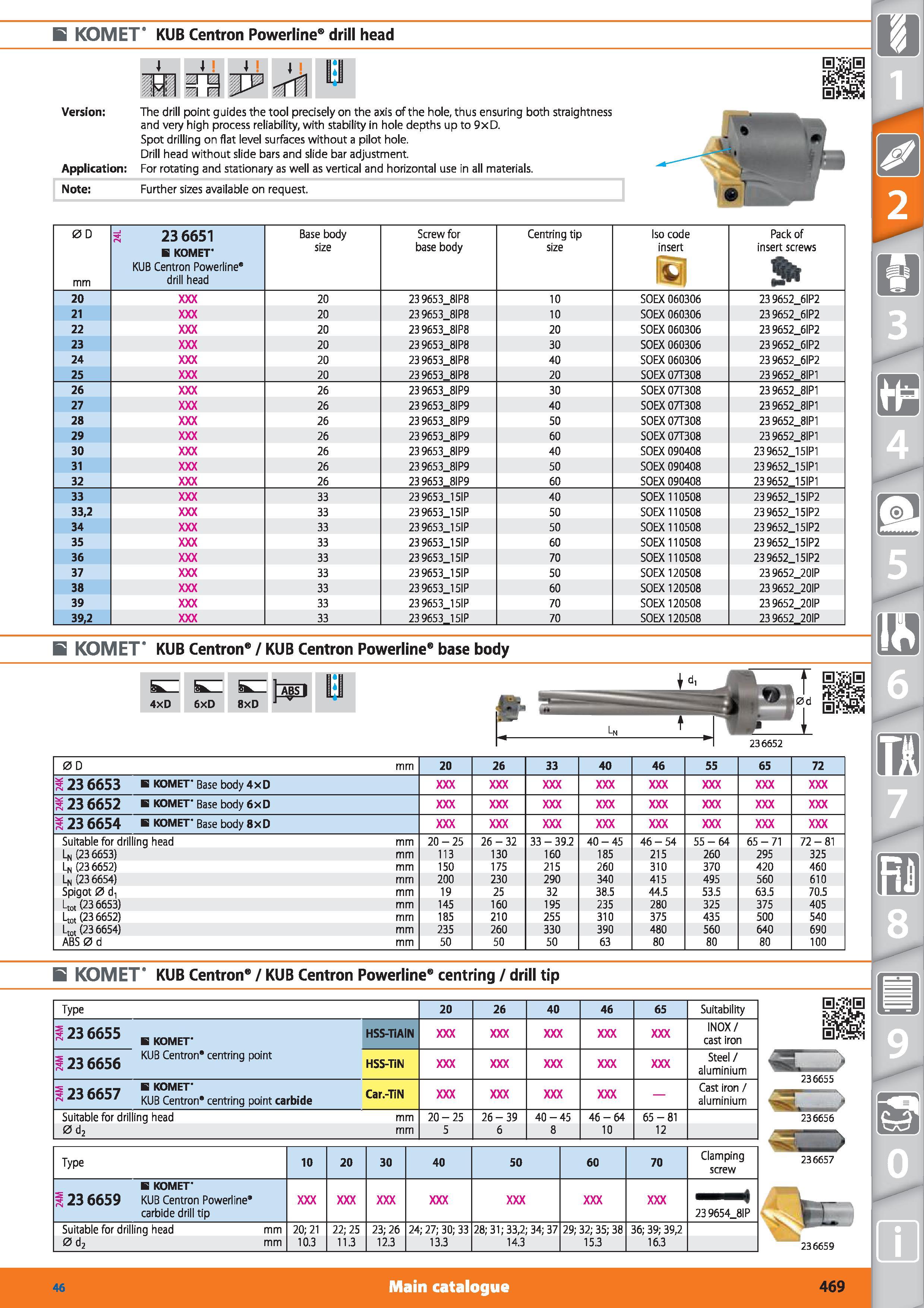

Powerline drill head KOMET KUB Centron Version The drill point guides the tool precisely on the axis of the hole, thus ensuring both straightness and very high process reliability, with stability in hole depths up to 9xD. Spot drilling on flat level surfaces without a pilot hole. Drill head without slide bars and slide bar adjustment. Application For rotating and stationary as well as vertical and horizontal use in all materials. Note Further sizes available on request. 4 4 4 ill l _l l_ -i r L 0 D mm s 236651 KOMET KUB Centron Powerline drill head Base body size Screw for base body Centring tip size Iso code insert Pack of insert screws Jh SI 20 20 23 9653_8IP8 10 SOEX 060306 23 9652_6IP2 21 20 239653_8IP8 10 SOEX 060306 23 9652_6IP2 22 20 23 9653_8IP8 20 SOEX 060306 23 9652_6IP2 23 20 239653_8IP8 30 SOEX 060306 23 9652_6IP2 24 20 239653_8IP8 40 SOEX 060306 23 9652_6IP2 25 20 239653_8IP8 20 SOEX 07T308 23 9652_8IP1 26 26 23 9653_8IP9 30 SOEX 07T308 23 9652_8IP1 27 26 23 9653_8IP9 40 SOEX 07T308 23 9652_8IP1 28 26 23 9653_8IP9 50 SOEX 07T308 23 9652_8IP1 29 26 23 9653_8IP9 60 SOEX 07T308 23 9652_8IP1 30 26 23 9653_8IP9 40 SOEX 090408 239652J5IP1 31 26 239653_8IP9 50 SOEX 090408 239652J5IP1 32 26 23 9653_8IP9 60 SOEX 090408 239652J5IP1 33 33 239653J5IP 40 SOEX 110508 239652J5IP2 33,2 33 239653J5IP 50 SOEX 110508 239652J5IP2 34 33 239653J5IP 50 SOEX 110508 239652J5IP2 35 33 239653J5IP 60 SOEX 110508 239652J5IP2 36 33 239653J5IP 70 SOEX 110508 239652J5IP2 37 33 239653J5IP 50 SOEX 120508 23 9652_20IP 38 33 239653J5IP 60 SOEX 120508 23 9652_20IP 39 33 239653J5IP 70 SOEX 120508 23 9652_20IP 39,2 33 239653 15IP 70 SOEX 120508 239652 20IP KOMET KUB Centron6 / KUB Centron Powerline6 base body 236652 0 D mm 20 26 33 40 46 55 65 72 a 23 6653 KOMET Base body 4xD 23 6652 KOMET Base body 6xD s 23 6654 KOMET Base body 8xD Suitable for drilling head mm 20-25 26-32 33 - 39.2 40-45 46-54 55-64 65-71 72-81 Ln (236653) mm 113 130 160 185 215 260 295 325 Ln (236652) mm 150 175 215 260 310 370 420 460 Ln (236654) mm 200 230 290 340 415 495 560 610 Spigot 0 d, mm 19 25 32 38.5 44.5 53.5 63.5 70.5 Ltot (23 6653) mm 145 160 195 235 280 325 375 405 Uo, (23 6652) mm 185 210 255 310 375 435 500 540 Ltot (23 6654) mm 235 260 330 390 480 560 640 690 ABS 0 d mm 50 50 50 63 80 80 80 100 KOMET KUB Centron / KUB Centron Powerline centring / drill tip Type 20 26 40 46 65 Suitability 123 6655 KOMET HSS-TiAIN INOX/ cast iron 123 6656 KUB Centron centring point HSS-TiN Steel/ aluminium 1236657 KOMET KUB Centron centring point carbide Car.-TiN Cast iron / aluminium Suitable for drilling head mm 20-25 26-39 40-45 46-64 65-81 0d2 mm 5 6 8 10 12 Type 10 20 30 40 50 60 70 Clamping screw KOMET 1 23 6659 KUB Centron Powerline carbide drill tip 23 9654_8IP Suitable for drilling head mm 20; 21 22; 25 23; 26 24; 27; 30; 33 28; 31; 33,2; 34; 37 29; 32; 35; 38 36; 39; 39,2 0 d2 mm 10.3 11.3 12.3 13.3 14.3 15.3 16.3 46 Main catalogue
