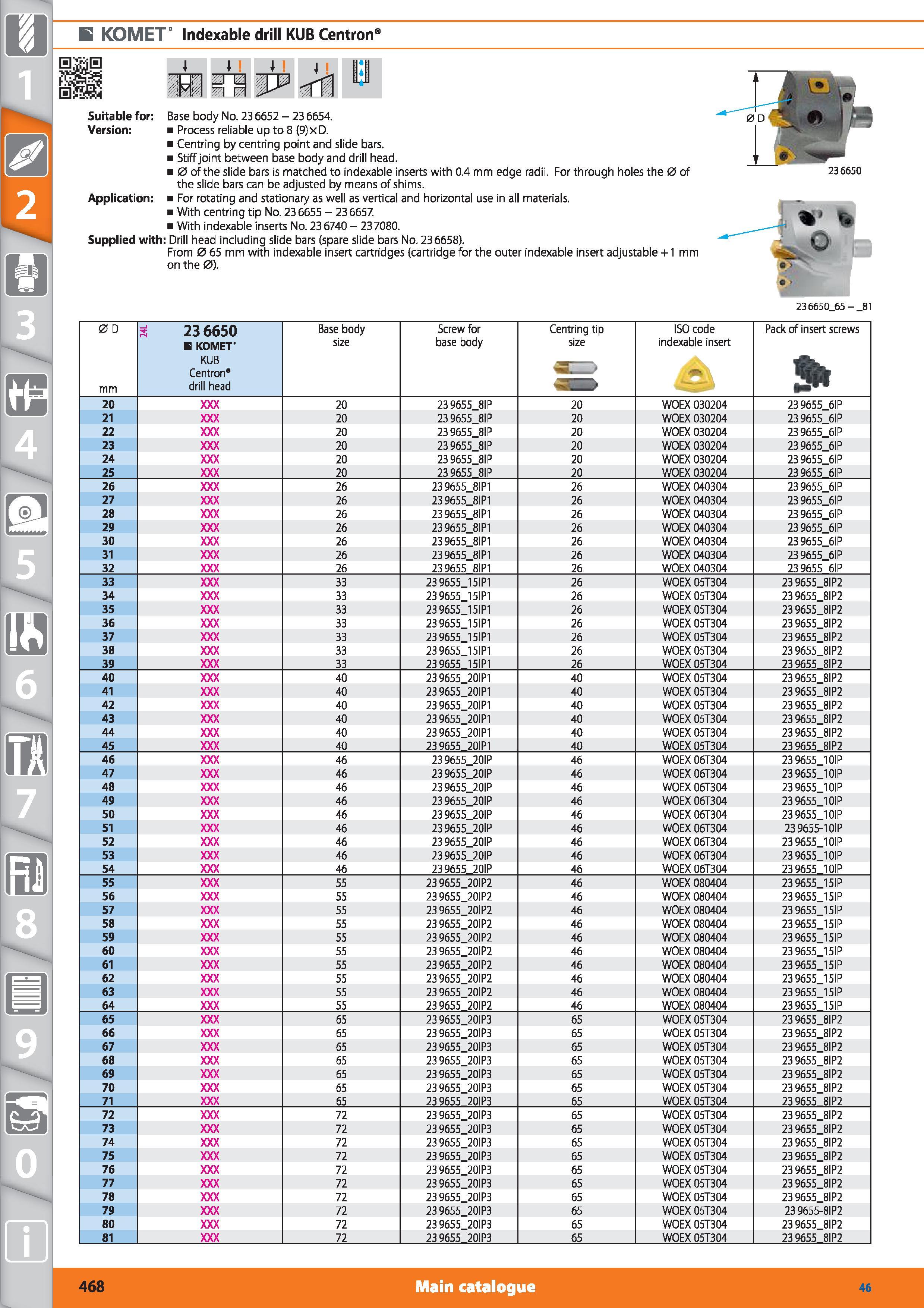

Indexable drill KOMET KUB Centron M Suitable for Base body No 23 6652 - 23 6654 Version Process reliable up to 8 (9)xD Centring by centring point

Indexable drill KOMET KUB Centron M Suitable for Base body No. 23 6652 - 23 6654. Version Process reliable up to 8 (9)xD. Centring by centring point and slide bars. Stiff joint between base body and drill head. 0 of the slide bars is matched to indexable inserts with 0.4 mm edge radii. For through holes the 0 of the slide bars can be adjusted by means of shims. Application For rotating and stationary as well as vertical and horizontal use in all materials. With centring tip No. 236655 - 236657. With indexable inserts No. 236740 - 237080. Supplied with Drill head including slide bars (spare slide bars No. 236658). From 0 65 mm with indexable insert cartridges (cartridge for the outer indexable insert adjustable +1 mm on the 0). 0 D mm s 236650 KOMET KUB Centron drill head Base body size Screw for base body Centring tip size ISO code indexable insert Pack of insert screws 20 20 23 9655_8IP 20 WOEX 030204 23 9655 6IP 21 20 23 9655_8IP 20 WOEX 030204 23 9655_61P 22 20 23 9655_8IP 20 WOEX 030204 23 9655_6IP 23 20 23 9655_8IP 20 WOEX 030204 23 9655_6IP 24 20 23 9655_8IP 20 WOEX 030204 23 9655_6IP 25 20 239655 8IP 20 WOEX 030204 239655 6IP 26 26 23 9655_8IP1 26 WOEX 040304 23 9655 6IP 27 26 23 9655_8IP1 26 WOEX 040304 23 9655_6IP 28 26 23 9655_8IP1 26 WOEX 040304 23 9655_6IP 29 26 23 9655_8IP1 26 WOEX 040304 23 9655_6IP 30 26 23 9655_8IP1 26 WOEX 040304 23 9655_6IP 31 26 239655 8IP1 26 WOEX 040304 239655 6IP 32 26 239655 8IP1 26 WOEX 040304 239655 6IP 33 33 239655J5IP1 26 WOEX 05T304 23 9655_8IP2 34 33 239655J5IP1 26 WOEX 05T304 239655_8IP2 35 33 239655J5IP1 26 WOEX 05T304 23 9655_8IP2 36 33 239655J5IP1 26 WOEX 05T304 23 9655_8IP2 37 33 239655J5IP1 26 WOEX 05T304 23 9655_8IP2 38 33 239655J5IP1 26 WOEX 05T304 23 9655_8IP2 39 33 239655 15IP1 26 WOEX 05T304 239655 8IP2 40 40 23 9655_20IP1 40 WOEX 05T304 23 9655_8IP2 41 40 23 9655_20IP1 40 WOEX 05T304 23 9655_8IP2 42 40 23 9655_20IP1 40 WOEX 05T304 239655_8IP2 43 40 23 9655_20IP1 40 WOEX 05T304 23 9655_8IP2 44 40 23 9655_20IP1 40 WOEX 05T304 23 9655_8IP2 45 40 239655 20IP1 40 WOEX 05T304 239655 8IP2 46 46 23 9655_20IP 46 WOEX 06T304 239655J0IP 47 46 23 9655_20IP 46 WOEX 06T304 239655J0IP 48 46 23 9655_20IP 46 WOEX 06T304 239655J0IP 49 46 23 9655 20IP 46 WOEX 06T304 239655J0IP 50 46 23 9655_20IP 46 WOEX 06T304 239655J0IP 51 46 23 9655_20IP 46 WOEX 06T304 23 9655-10IP 52 46 23 9655 20IP 46 WOEX 06T304 239655J0IP 53 46 23 9655_20IP 46 WOEX 06T304 239655J0IP 54 46 239655 20IP 46 WOEX 06T304 239655 10IP 55 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 56 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 57 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 58 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 59 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 60 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 61 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 62 55 23 9655_20IP2 46 WOEX 080404 239655J5IP 63 55 239655 20IP2 46 WOEX 080404 239655 15IP 64 55 239655 20IP2 46 WOEX 080404 239655 15IP 65 65 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 66 65 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 67 65 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 68 65 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 69 65 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 70 65 23 9655_20IP3 65 WOEX 05T304 239655_8IP2 71 65 239655 20IP3 65 WOEX 05T304 239655 8IP2 72 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 73 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 74 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 75 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 76 72 23 9655_20IP3 65 WOEX 05T304 239655_8IP2 77 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 78 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 79 72 23 9655_20IP3 65 WOEX 05T304 23 9655-8IP2 80 72 23 9655_20IP3 65 WOEX 05T304 23 9655_8IP2 81 72 239655 20IP3 65 WOEX 05T304 239655 8IP2
