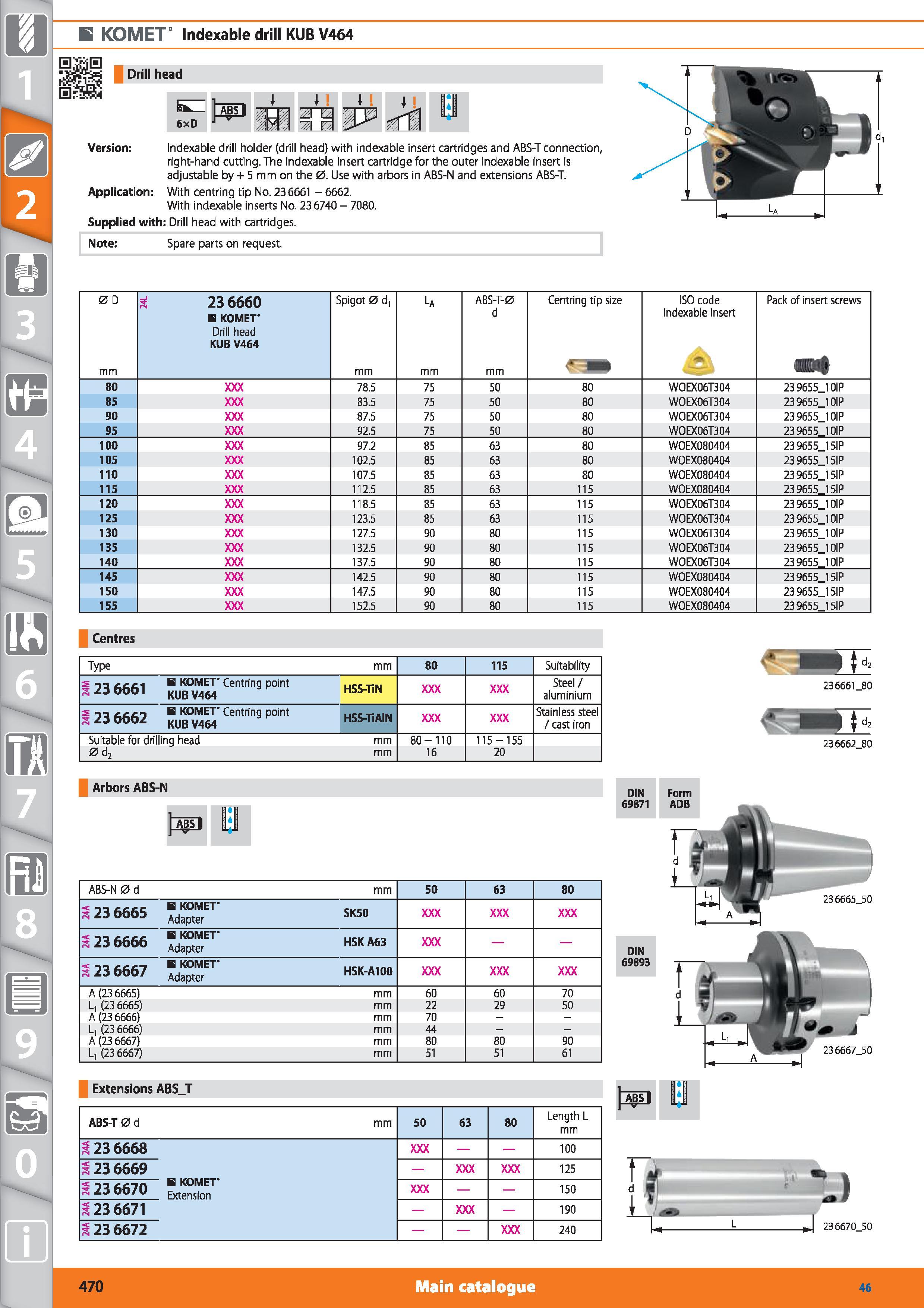

Indexable drill KOMET KUB V464 Drill head 6xD Version Indexable drill holder (drill head) with indexable insert cartridges and ABS-Tconnection, right-hand cutting. The indexable insert cartridge for the outer indexable insert is adjustable by + 5 mm on the 0. Use with arbors in ABS-N and extensions ABS-T. Application With centring tip No. 23 6661 - 6662. With indexable inserts No. 236740 - 7080. Supplied with Drill head with cartridges. Note Spare parts on request. 0 D mm a 23 6660 KOMET Drill head KUB V464 Spigot 0 d, mm U mm ABS-T-0 d mm Centring tip size ISO code indexable insert Pack of insert screws 39 80 78.5 75 50 80 WOEX06T304 239655J0IP 85 83.5 75 50 80 WOEX06T304 239655 10IP 90 87.5 75 50 80 WOEX06T304 239655 10IP 95 92.5 75 50 80 WOEX06T304 239655 10IP 100 97.2 85 63 80 WOEX080404 239655J5IP 105 102.5 85 63 80 WOEX080404 239655J5IP 110 107.5 85 63 80 WOEX080404 239655 15IP 115 112.5 85 63 115 WOEX080404 239655J5IP 120 118.5 85 63 115 WOEX06T304 239655J0IP 125 123.5 85 63 115 WOEX06T304 239655 10IP 130 127.5 90 80 115 WOEX06T304 239655 10IP 135 132.5 90 80 115 WOEX06T304 239655J0IP 140 137.5 90 80 115 WOEX06T304 239655J0IP 145 142.5 90 80 115 WOEX080404 239655J5IP 150 147.5 90 80 115 WOEX080404 239655 15IP 155 152.5 90 80 115 WOEX080404 239655J5IP Centres Type mm 80 115 Suitability 123666KOMET Centring point KUBV464 HSS-TiN Steel / aluminium 1236662 B KOMET Centring point KUBV464 HSS-TiAIN Stainless steel / cast iron Suitable for drilling head mm 80-110 115-155 0d2 mm 16 20 23 6661 _80 236662_80 Arbors ABS-N ABS v ’ DIN 69871 ABS-N 0 d mm 50 63 80 3 23 6665 B KOMET Adapter SK50 s 23 6666 B KOMET Adapter HSKA63 S 23 6667 B KOMET Adapter HSK-A100 A (23 6665) mm 60 60 70 L, (23 6665) mm 22 29 50 A (23 6666) mm 70 L, (23 6666) mm 44 A (23 6667) mm 80 80 90 L, (23 6667) mm 51 51 61 DIN 69893 Extensions ABS_T ABS-T 0 d mm 50 63 80 Length L mm 1236668 100 1236669 125 5 KOMET 23 6670 Extension 150 1236671 190 a 23 6672 240 (30 1J r. 236670_50 Form 470 Main catalogue Hoffmann Group 46
