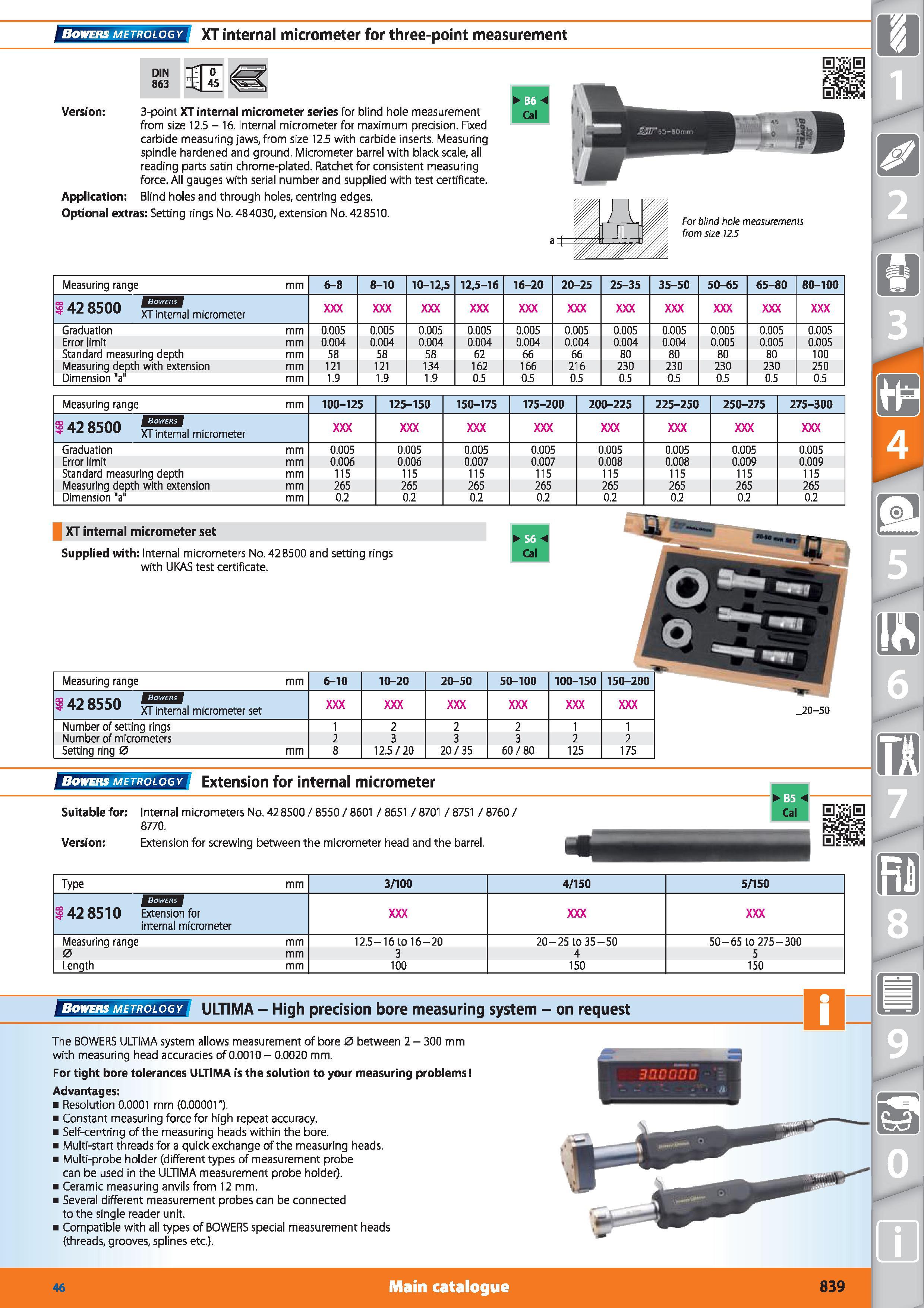

Bowers metrology XT internal micrometer for three-point measurement DIN 863 J 0 45 (3 Version 3-point XT internal micrometer series for blind hole measurement from size 12.5 - 16. Internal micrometer for maximum precision. Fixed carbide measuring jaws, from size 12.5 with carbide inserts. Measuring spindle hardened and ground. Micrometer barrel with black scale, all reading parts satin chrome-plated. Ratchet for consistent measuring force. All gauges with serial number and supplied with test certificate. Application Blind holes and through holes, centring edges. Optional extras Setting rings No. 484030, extension No. 428510. Measuring range mm 6-8 8-10 10-12,5 12,5-16 16-20 20-25 25-35 35-50 50-65 65-80 80-100 i 42 8500 Sfalmicrometer Graduation mm 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 Standard measuring depth mm 58 58 58 62 66 66 80 80 80 80 100 Measuring depth with extension mm 121 121 134 162 166 216 230 230 230 230 250 Dimension "a" mm 1.9 1.9 1.9 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 Measuring range mm 100-125 125-150 150-175 175-200 200-225 225-250 250-275 275-300 i 42 8500 fFF i XT internal micrometer Graduation mm 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 Error limit mm 0.006 0.006 0.007 0.007 0.008 0.008 0.009 0.009 Standard measuring depth mm 115 115 115 115 115 115 115 115 Measuring depth with extension mm 265 265 265 265 265 265 265 265 Dimension "a" mm 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 XT internal micrometer set Supplied with Internal micrometers No. 428500 and setting rings with UKAS test certificate. i r Measuring range mm 6-10 10-20 20-50 50-100 100-150 150-200 142 8550 t -r xy intema micrometer set Number of setting rings 1 2 2 2 1 1 Number of micrometers 2 3 3 3 2 2 Setting ring 0 mm 8 12.5/20 20/35 60/80 125 175 _20-50 Bowers metrology Extension for internal micrometer Suitable for Internal micrometers No. 428500 / 8550 / 8601 / 8651 / 8701 / 8751 / 8760 / 8770. Version Extension for screwing between the micrometer head and the barrel. Type mm 3/100 4/150 5/150 42 8510 Extension for internal micrometer Measuring range mm 12.5-16 to 16-20 20-25 to 35-50 50- 65 to 275-300 0 mm 3 4 5 Length mm 100 150 150 Bowers metrology ULTIMA - High precision bore measuring system - on request The BOWERS ULTIMA system allows measurement of bore 0 between 2 - 300 mm with measuring head accuracies of 0.0010 - 0.0020 mm. For tight bore tolerances ULTIMA is the solution to your measuring problems I Advantages Resolution 0.0001 mm (0.00001"). Constant measuring force for high repeat accuracy. Self-centring of the measuring heads within the bore. Multi-start threads for a quick exchange of the measuring heads. Multi-probe holder (different types of measurement probe can be used in the ULTIMA measurement probe holder). Ceramic measuring anvils from 12 mm. Several different measurement probes can be connected to the single reader unit. Compatible with all types of BOWERS special measurement heads (threads, grooves, splines etc.). Main catalogue Hoffmann Group 46 839
