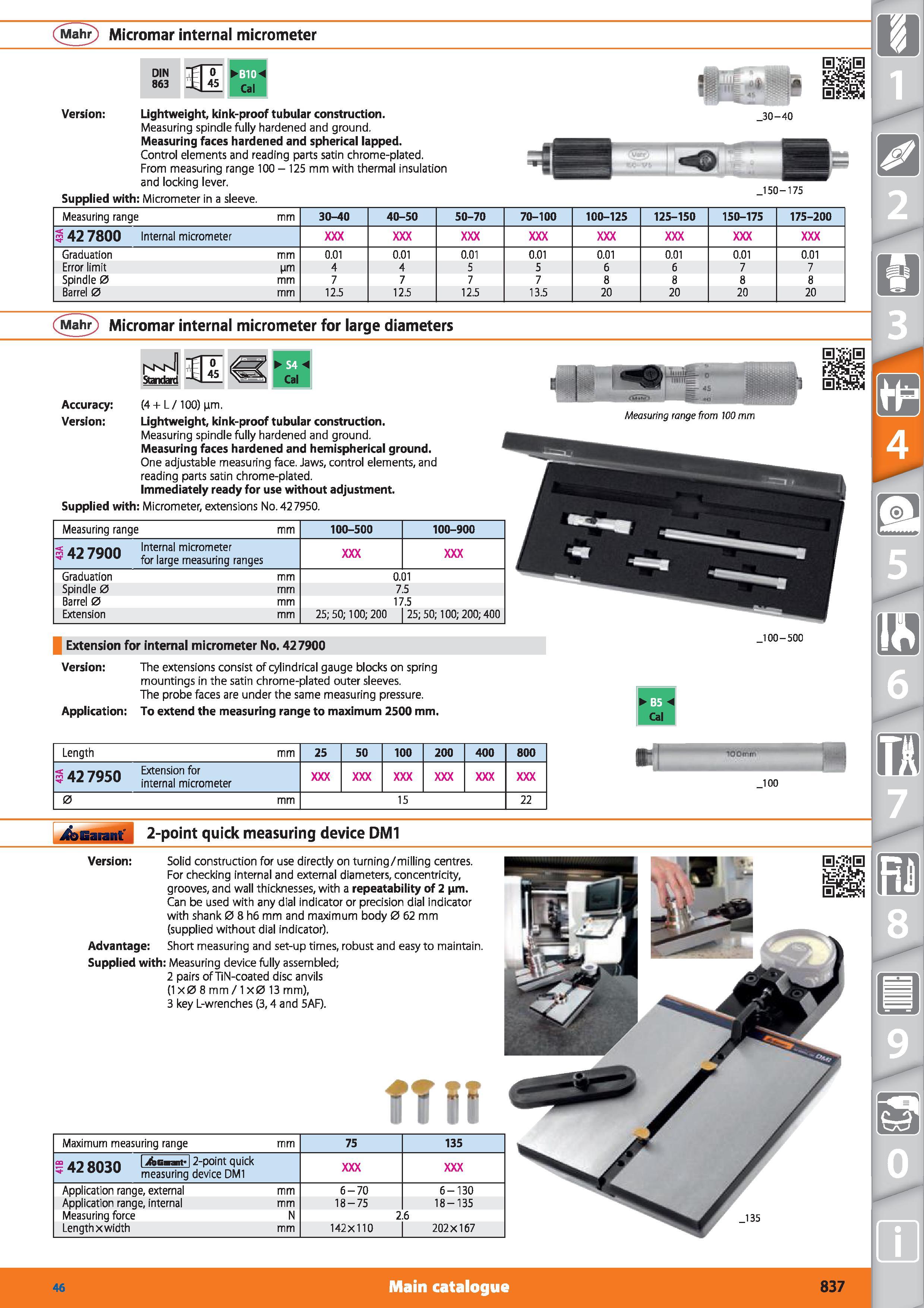

Mahr Micromar internal micrometer DIN 863 Version Lightweight, kink-proof tubular construction. Measuring spindle fully hardened and ground. Measuring faces hardened and spherical lapped. Control elements and reading parts satin chrome-plated. From measuring range 100 - 125 mm with thermal insulation and locking lever. Supplied with Micrometer in a sleeve. _30-40 J 50-175 Measuring range mm 30-40 40-50 50-70 70-100 100-125 125-150 150-175 175-200 5 42 7800 Internal micrometer Graduation mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Error limit m 4 4 5 5 6 6 7 7 Spindle 0 mm 7 7 7 7 8 8 8 8 Barrel 0 mm 12.5 12.5 12.5 13.5 20 20 20 20 Mahr Micromar internal micrometer for large diameters Accuracy (4 + L / 100) urn. Version Lightweight, kink-proof tubular construction. Measuring spindle fully hardened and ground. Measuring faces hardened and hemispherical ground. One adjustable measuring face. Jaws, control elements, and reading parts satin chrome-plated. Immediately ready for use without adjustment. Supplied with Micrometer, extensions No. 42 7950. Measuring range i 42 7900 Internal micrometer for large measuring ranges Graduation Spindle 0 Barrel 0 Extension mm 100-500 100-900 25; 50; 100; 200 0.01 7.5 17.5 I 25; 50; 100; 200; 400 Extension for internal micrometer No. 427900 Version The extensions consist of cylindrical gauge blocks on spring mountings in the satin chrome-plated outer sleeves. The probe faces are under the same measuring pressure. Application To extend the measuring range to maximum 2500 mm. .100 - 500 Length mm 25 50 100 200 400 800 1427950 Extension for internal micrometer 0 mm 15 22 Garant , 2-point quick measuring device DM1 Version Solid construction for use directly on turning/milling centres. For checking internal and external diameters, concentricity, grooves, and wall thicknesses, with a repeatability of 2 nm. Can be used with any dial indicator or precision dial indicator with shank 0 8 h6 mm and maximum body 0 62 mm (supplied without dial indicator). Advantage Short measuring and set-up times, robust and easy to maintain. Supplied with Measuring device fully assembled; 2 pairs of TiN-coated disc anvils (1x0 8 mm /1X0 13 mm), 3 key L-wrenches (3,4 and 5AF). nn Maximum measuring range mm 75 135 m a onin 1 jfecnnt 12-point quick measuring device DM1 Application range, external mm 6-70 6-130 Application range, internal mm 18-75 18-135 Measuring force N 2.6 Length x width mm 142x110 202x167 Main catalogue Hoffmann Group 46 837
