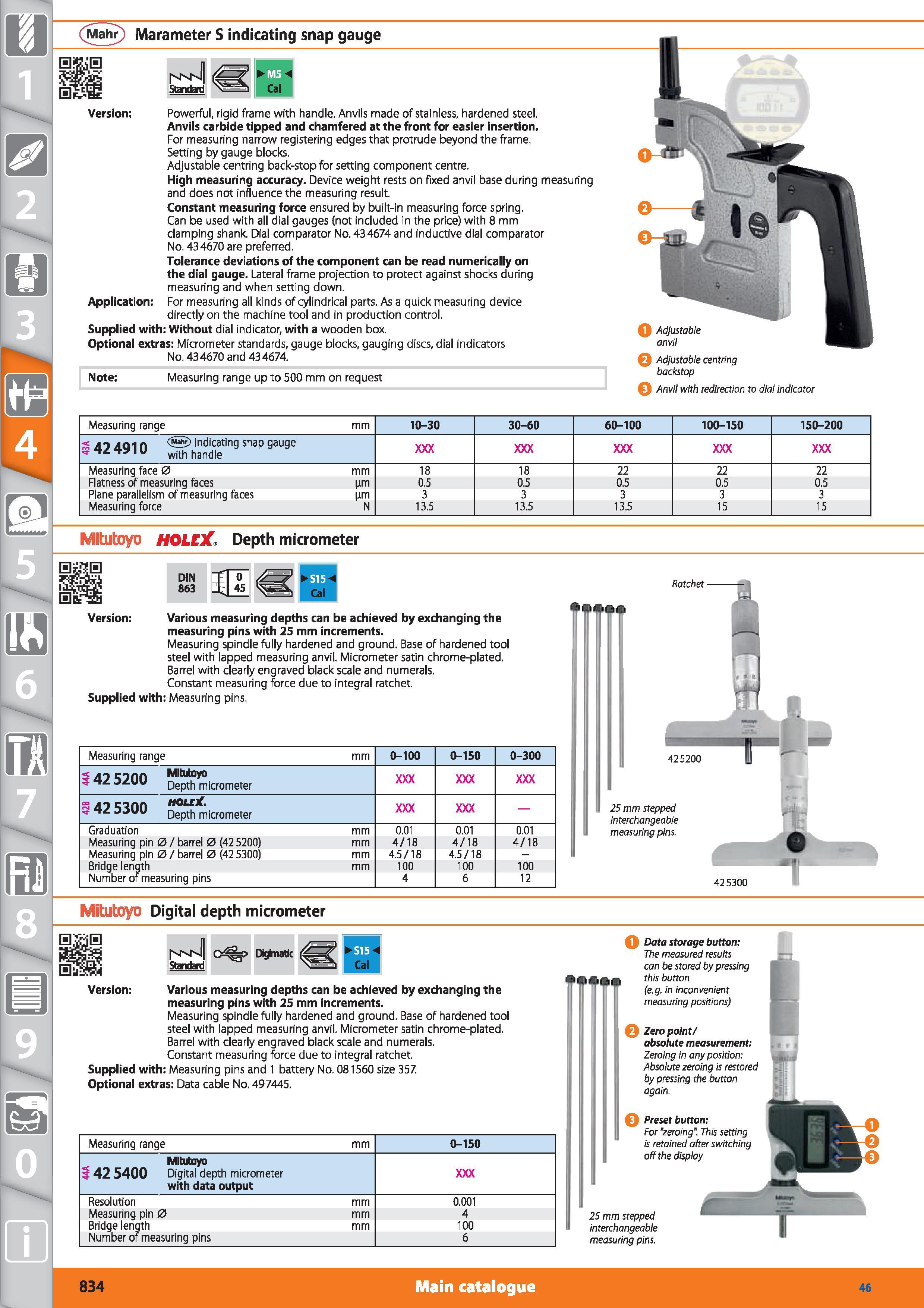

Mahr Marameter S indicating snap gauge Version Powerful, rigid frame with handle. Anvils made of stainless, hardened steel. Anvils carbide tipped and chamfered at the front for easier insertion. For measuring narrow registering edges that protrude beyond the frame. Setting by gauge blocks. Adjustable centring back-stop for setting component centre. High measuring accuracy. Device weight rests on fixed anvil base during measuring and does not influence the measuring result. Constant measuring force ensured by built-in measuring force spring. Can be used with all dial gauges (not included in the price) with 8 mm clamping shank Dial comparator No. 434674 and inductive dial comparator No. 434670 are preferred. Tolerance deviations of the component can be read numerically on the dial gauge. Lateral frame projection to protect against shocks during measuring and when setting down. Application For measuring all kinds of cylindrical parts. As a quick measuring device directly on the machine tool and in production control. Supplied with Without dial indicator, with a wooden box. Optional extras Micrometer standards, gauge blocks, gauging discs, dial indicators No. 434670 and 434674. Note Measuring range up to 500 mm on request Measuring range mm 10-30 30-60 60-100 100-150 150-200 < aq n Indicating snap gauge with hand e Measuring face 0 mm 18 18 22 22 22 Flatness of measuring faces Jim 0.5 0.5 0.5 0.5 0.5 Plane parallelism of measuring faces urn 3 3 3 3 3 Measuring force N 13.5 13.5 13.5 15 15 Mitutoyo HOLEX Depth micrometer DIN 863 45 fnr 45 Version Various measuring depths can be achieved by exchanging the measuring pins with 25 mm increments. Measuring spindle fully hardened and ground. Base of hardened tool steel with lapped measuring anvil. Micrometer satin chrome-plated. Barrel with clearly engraved black scale and numerals. Constant measuring force due to integral ratchet. Supplied with Measuring pins. Measuring range mm 0-100 0-150 0-300 3 4 won M tutay° Depth micrometer m c,nn HOLEX 't Depth micrometer Graduation mm 0.01 0.01 0.01 Measuring pin 0 / barrel 0 (425200) mm 4/18 4/18 4/18 Measuring pin 0 / barrel 0 (425300) mm 4.5/18 4.5/18 Bridge length Number of measuring pins mm 100 100 100 4 6 12 25 mm stepped interchangeable measuring pins. Mitutoyo Digital depth micrometer vmJ Standard Dighiatk Version Various measuring depths can be achieved by exchanging the measuring pins with 25 mm increments. Measuring spindle fully hardened and ground. Base of hardened tool steel with lapped measuring anvil. Micrometer satin chrome-plated. Barrel with clearly engraved black scale and numerals. Constant measuring force due to integral ratchet. Supplied with Measuring pins and 1 battery No. 081560 size 357. Optional extras Data cable No. 497445. TTITT Measuring range mm 0-150 Mitutoyo 3 42 5400 Digital depth micrometer with data output Resolution mm 0.001 Measuring pin 0 mm 4 Bridge length mm 100 Number of measuring pins 6 425300 ( Data storage button The measured results can be stored by pressing this button (e.g. in inconvenient measuring positions) ( Zero point/ absolute measurement Zeroing in any position Absolute zeroing is restored by pressing the button again. ( Preset button For “zeroing". This setting is retained after switching off the display 25 mm stepped interchangeable measuring pins. Q Adjustable anvil Q Adjustable centring backstop 0 Anvil with redirection to dial indicator Ratchet 425200 834 Main catalogue Hoffmann Group 46
