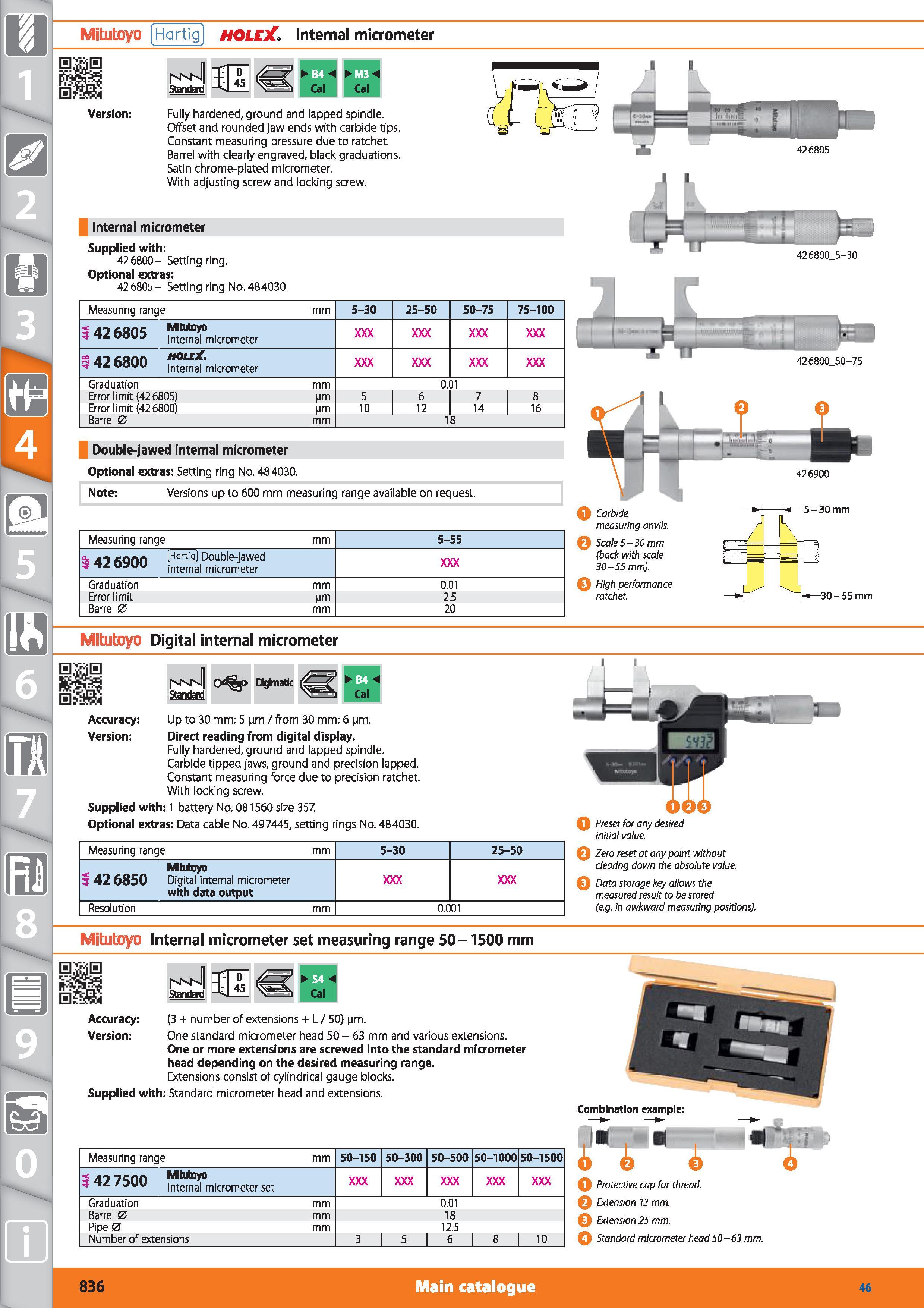

1 Mitutoyo Hartig HOLEX Internal micrometer Standard 0 45 Version Fully hardened, ground and lapped spindle. Offset and rounded jaw ends with carbide tips. Constant measuring pressure due to ratchet. Barrel with clearly engraved, black graduations. Satin chrome-plated micrometer. With adjusting screw and locking screw. Internal micrometer Supplied with 42 6800- Setting ring. Optional extras 42 6805- Setting ring No. 484030. Measuring range mm 5-30 25-50 50-75 75-100 1426805 IrnernaTmicrometer 42 6800 S'micrometer Graduation mm 0.01 Error limit (42 6805) (jm 5 6 7 8 Error limit (42 6800) im 10 12 14 16 Barrel 0 mm 1 8 426800_50-75 Double-jawed internal micrometer Optional extras Setting ring No. 484030. Note Versions up to 600 mm measuring range available on request. 426900 m Measuring range mm 5-55 42 6900 lHart'9l Double-jawed ti internal micrometer Graduation mm 0.01 Error limit nm 2.5 Barrel 0 mm 20 Q Carbide measuring anvils. Q Scale 5-30 mm (back with scale 30-55 mm). Q High performance ratchet. Mitutoyo Digital internal micrometer Standard C y> Digin atic E \ Cal to Accuracy Up to 30 mm 5 nm / from 30 mm 6 jm. Version Direct reading from digital display. Fully hardened, ground and lapped spindle. Carbide tipped jaws, ground and precision lapped. Constant measuring force due to precision ratchet. With locking screw. Supplied with 1 battery No. 081560 size 357. Optional extras Data cable No. 497445, setting rings No. 484030. Measuring range mm 5-30 25-50 Mitutoyo 3 42 6850 Digital internal micrometer with data output Resolution mm 0.001 Q Preset for any desired initial value. Q Zero reset at any point without clearing down the absolute value. Q Data storage key allows the measured result to be stored (e.g. in awkward measuring positions). Mitutoyo Internal micrometer set measuring range 50-1500 mm hMvfl Standard Accuracy (3 + number of extensions + L / 50) m. Version One standard micrometer head 50 - 63 mm and various extensions. One or more extensions are screwed into the standard micrometer head depending on the desired measuring range. Extensions consist of cylindrical gauge blocks. Supplied with Standard micrometer head and extensions. Measuring range mm 50-150 50-300 50-500 50-1000 50-1500 S 42 7500 MltutoY° ',vv Internal micrometer set Graduation mm 0.01 Barrel 0 mm 18 Pipe 0 mm 12.5 Number of extensions 3 5 6 8 10 426805 mm Combination example ii ”5 "bo 6 Q Protective cap for thread Q Extension 13 mm. Q Extension 25 mm. Q Standard micrometer head 50-63 mm. 836 Main catalogue Hoffmann Group 46
