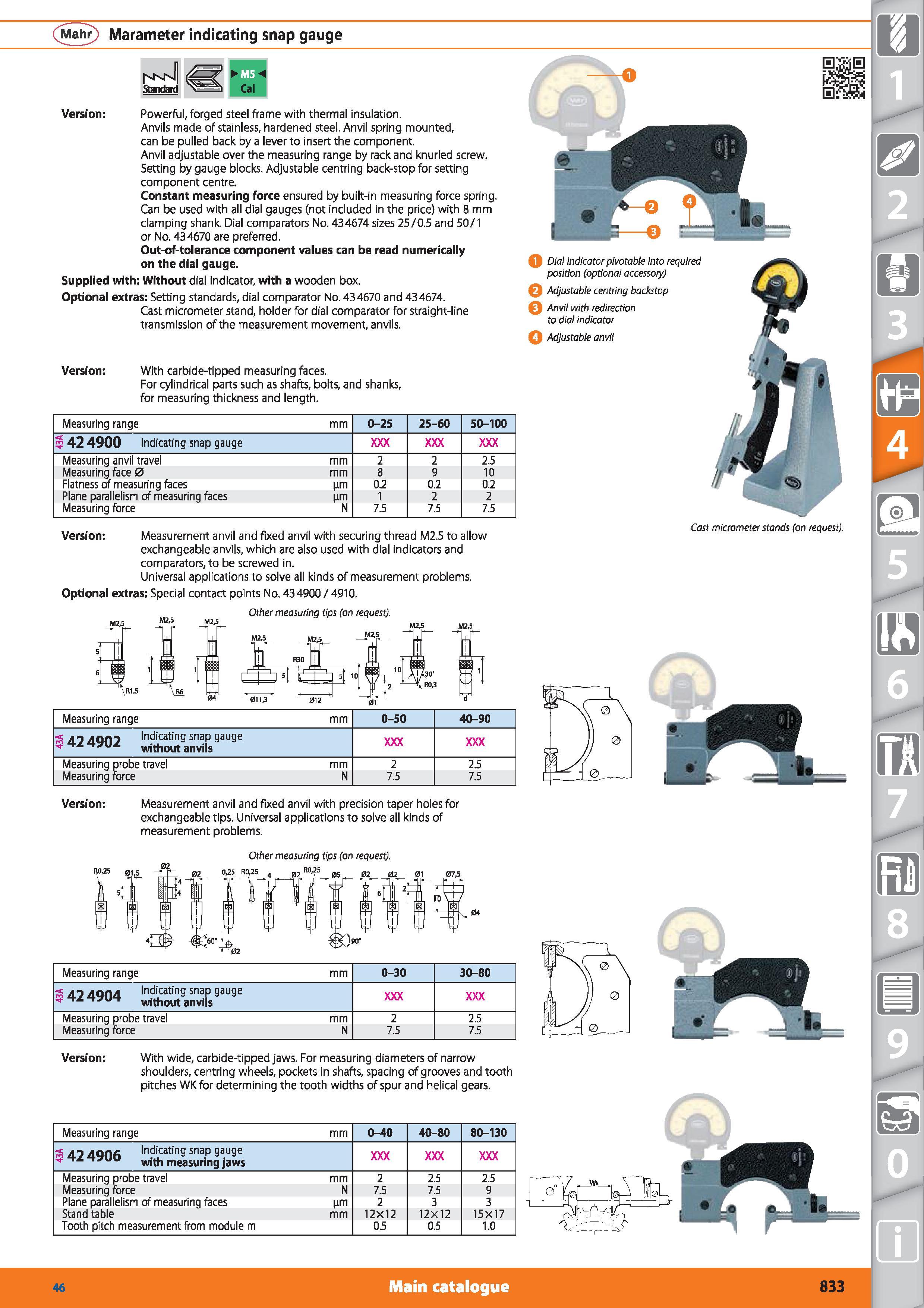

Mahr Marameter indicating snap gauge Standard Cal Version Powerful, forged steel frame with thermal insulation. Anvils made of stainless, hardened steel. Anvil spring mounted, can be pulled back by a lever to insert the component. Anvil adjustable over the measuring range by rack and knurled screw. Setting by gauge blocks. Adjustable centring back-stop for setting component centre. Constant measuring force ensured by built-in measuring force spring. Can be used with all dial gauges (not included in the price) with 8 mm clamping shank. Dial comparators No. 434674 sizes 25/0.5 and 50/1 or No. 434670 are preferred. Out-of-tolerance component values can be read numerically on the dial gauge. Supplied with Without dial indicator, with a wooden box. Optional extras Setting standards, dial comparator No. 434670 and 434674. Cast micrometer stand, holder for dial comparator for straight-line transmission of the measurement movement, anvils. Version With carbide-tipped measuring faces. For cylindrical parts such as shafts, bolts, and shanks, for measuring thickness and length. Measuring range mm 0-25 25-60 50-100 3 42 4900 Indicating snap gauge Measuring anvil travel mm 2 2 2.5 Measuring face 0 mm 8 9 10 Flatness of measuring faces nm 0.2 0.2 0.2 Plane parallelism of measuring faces nm 1 2 2 Measuring force N 7.5 7.5 7.5 Version Measurement anvil and fixed anvil with securing thread M2.5 to allow exchangeable anvils, which are also used with dial indicators and comparators, to be screwed in. Universal applications to solve all kinds of measurement problems. Optional extras Special contact points No. 434900 / 4910. Other measuring tips (on request). M2,5 M2,5 i r Li Measuring range mm 0-50 40-90 S AO 4Q07 Indicating snap gauge HZ HVUZ without anvMs Measuring probe travel mm 2 2.5 Measuring force N 7.5 7.5 Version Measurement anvil and fixed anvil with precision taper holes for exchangeable tips. Universal applications to solve all kinds of measurement problems. Other measuring tips (on request). 02 T 05 02 02 01 Measuring range mm 0-30 30-80 S AO AQflA Indicating snap gauge 'r without anvils Measuring probe travel mm 2 2.5 Measuring force N 7.5 7.5 \\ 0 \ j L )) 0 o Version With wide, carbide-tipped jaws. For measuring diameters of narrow shoulders, centring wheels, pockets in shafts, spacing of grooves and tooth pitches WKfor determining the tooth widths of spur and helical gears. Measuring range mm 0-40 40-80 80-130 S 42 4906 lndicatinS snaP 9au9e with measuring jaws Measuring probe travel mm 2 2.5 2.5 Measuring force N 7.5 7.5 9 Plane parallelism of measuring faces nm 2 3 3 Stand table mm 12X12 12X12 15X17 Tooth pitch measurement from module m 0.5 0.5 1.0 Main catalogue Hoffmann Group 46 Q Dial indicator pivotable into required position (optional accessory) Q Adjustable centring backstop Anvil with redirection to dial indicator Adjustable anvil Cast micrometer stands (on request).
