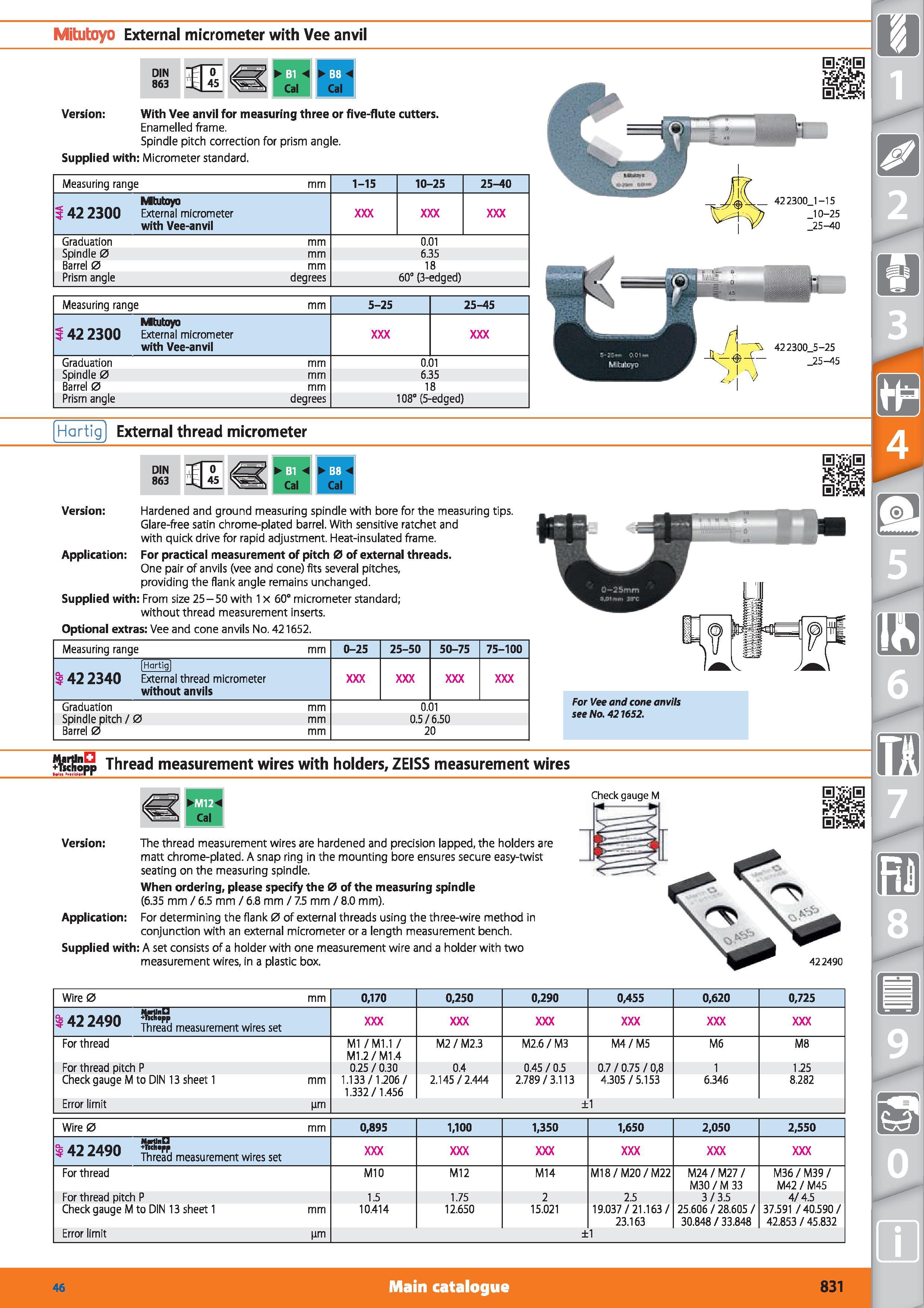

Mitutoyo External micrometer with Vee anvil DIN 863 Version With Vee anvil for measuring three or five-flute cutters. Enamelled frame. Spindle pitch correction for prism angle. Supplied with Micrometer standard. Measuring range mm 1-15 10-25 25-40 Mtutoya f 42 2300 External micrometer with Vee-anvil Graduation mm 0.01 Spindle 0 mm 6.35 Barrel 0 mm 18 Prism angle degrees 60° (3-edged) Measuring range mm 5-25 25-45 142 2300 Mhitoyo External micrometer with Vee-anvil Graduation mm 0.01 Spindle 0 mm 6.35 Barrel 0 mm 18 Prism angle degrees 108° (5-edged) Hartig External thread micrometer DIN 863 Version Hardened and ground measuring spindle with bore for the measuring tips. Glare-free satin chrome-plated barrel. With sensitive ratchet and with quick drive for rapid adjustment. Heat-insulated frame. Application For practical measurement of pitch 0 of external threads. One pair of anvils (vee and cone) fits several pitches, providing the flank angle remains unchanged. Supplied with From size 25-50 with 1 x 60° micrometer standard; without thread measurement inserts. Optional extras Vee and cone anvils No. 421652. Measuring range mm 0-25 25-50 50-75 75-100 Hartig 5 42 2340 External thread micrometer without anvils Graduation mm 0.01 Spindle pitch / 0 mm 0.5/6.50 Barrel 0 mm 20 +&l opp Thread measurement wires with holders, ZEISS measurement wires ’9 Check gauge M Version The thread measurement wires are hardened and precision lapped, the holders are matt chrome-plated. A snap ring in the mounting bore ensures secure easy-twist seating on the measuring spindle. When ordering, please specify the 0 of the measuring spindle (6.35 mm / 6.5 mm / 6.8 mm / 7.5 mm / 8.0 mm). Application For determining the flank 0 of external threads using the three-wire method in conjunction with an external micrometer or a length measurement bench. Supplied with A set consists of a holder with one measurement wire and a holder with two measurement wires, in a plastic box. m 1 422490 Wire 0 mm 0,170 0,250 0,290 0/455 0,620 0,725 is 42 2490 Thread measurement wires set For thread Ml / M1.1 / M1.2/M1.4 M2 / M2.3 M2.6/M3 M4/M5 M6 M8 For thread pitch P 0.25/0.30 0.4 0.45/0.5 0.7/0.75/0,8 1 1.25 Check gauge M to DIN 13 sheet 1 mm 1.133/1.206/ 1.332/1.456 2.145/2.444 2.789/3.113 4.305/5.153 6.346 8.282 Error limit nm ±1 Wire 0 mm 0,895 1,100 1,350 1,650 2,050 2,550 MavtlnD S 42 2490 > ,,pp Thread measurement wires set For thread M10 M12 M14 M18/M20/M22 M24/M27/ M30/M33 M36/M39/ M42 / M45 For thread pitch P 1.5 1.75 2 2.5 3/3.5 4/4.5 Check gauge M to DIN 13 sheet 1 mm 10.414 12.650 15.021 19.037/21.163/ 23.163 25.606/28.605/ 30.848 / 33.848 37.591 / 40.590/ 42.853 / 45.832 Error limit (jm ±1 Main catalogue Hoffmann Group 46 831
