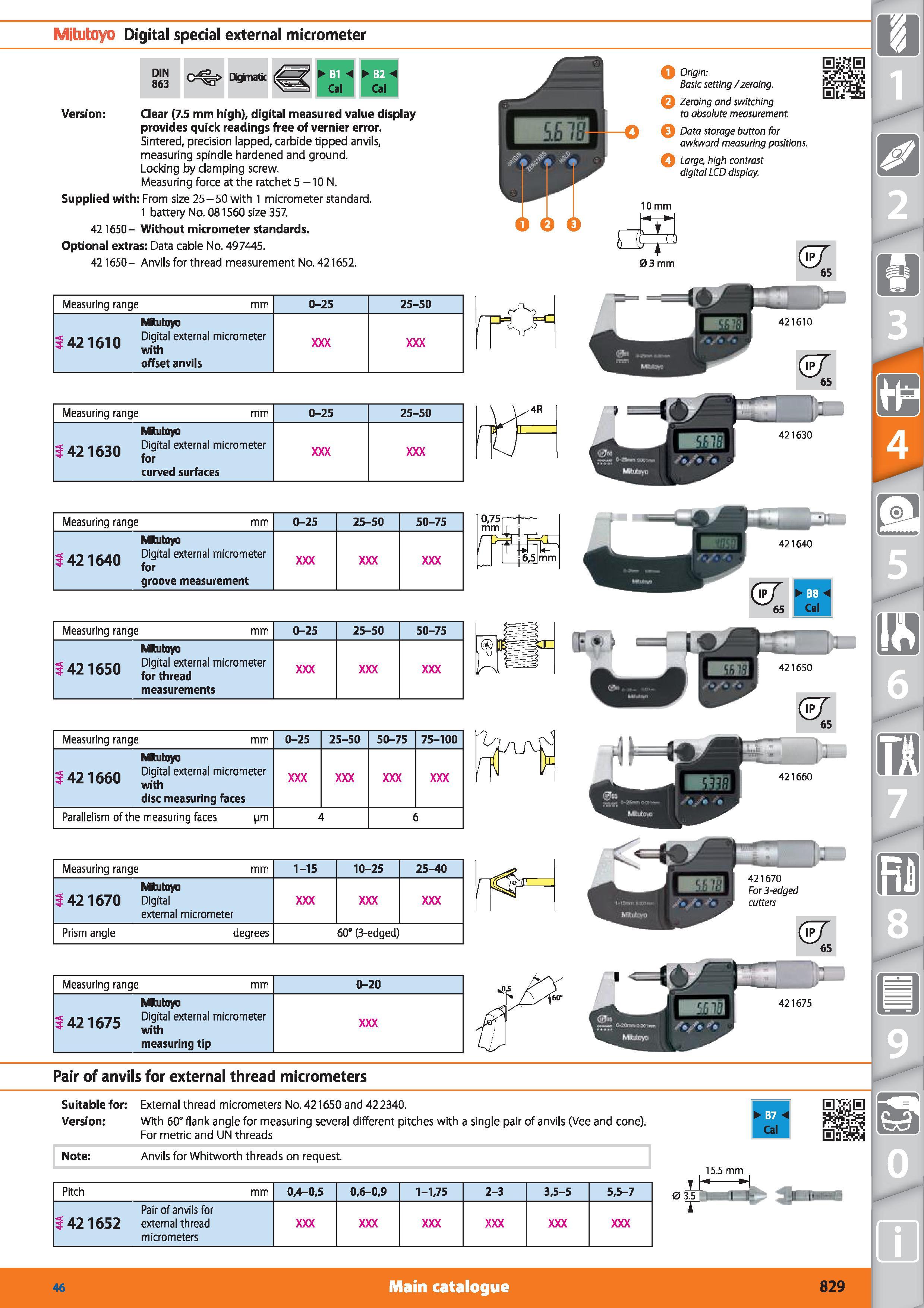

829 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.829

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 829 0829 ENG Lab2u

Mitutoyo Digital special external micrometer DIN 863 Diginatk Version Clear (7.5 mm high), digital measured value display provides quick readings free of vernier error. Sintered, precision lapped, carbide tipped anvils, measuring spindle hardened and ground. Locking by clamping screw. Measuring force at the ratchet 5 -10 N. Supplied with From size 25-50 with 1 micrometer standard. 1 battery No. 081560 size 357. 42 1650- Without micrometer standards. Optional extras Data cable No. 497445. 42 1650- Anvils for thread measurement No. 421652. Q Origin Basic setting /zeroing. Zeroing and switching to absolute measurement Data storage button for awkward measuring positions. 5 Large, high contrast digital LCD display. Measuring range mm 0-25 25-50 Mhitoyo < hi 1 .1 n Digital external micrometer 3 42 1610 wiyth offset anvils Measuring range mm 0-25 25-50 Mhitoyo -i ii Digital external micrometer 3 42 1630 for curved surfaces Measuring range mm 0-25 25-50 50-75 Mhitoyo < i e.At\ Digital external micrometer 3 421640 for groove measurement Measuring range mm 0-25 25-50 50-75 Mhitoyo jn i Digital external micrometer 3 42 1650 f0 thread measurements Measuring range mm 0-25 25-50 50-75 75-100 Mhitoyo < hi 1 c.c.n Digital external micrometer 3 42 1660 wjth disc measuring faces Parallelism of the measuring faces (jm 4 6 rpO 4R 0,75 mm Measuring range mm 1-15 10-25 25-40 Mhitoyo 1 42 1670 Digital external micrometer Prism angle degrees 60° (3-edged Measuring range mm 0-20 Mhitoyo AT 1 en Digital external micrometer 3 IO/3 wjth measuring tip 42 670 For 3-edged cutters Pair of anvils for external thread micrometers Suitablefor External thread micrometers No.421650and 422340. Version With 60° flank angle for measuring several different pitches with a single pair of anvils (Vee and cone). For metric and UN threads Note Anvils for Whitworth threads on request. Pitch mm 0/4 0,5 0,6-0,9 1-1,75 2-3 3,5-5 5,5-7 1421652 Pair of anvils for external thread micrometers 1675 15.5 mm 0 3.5 Main catalogue Hoffmann Group 46 829
