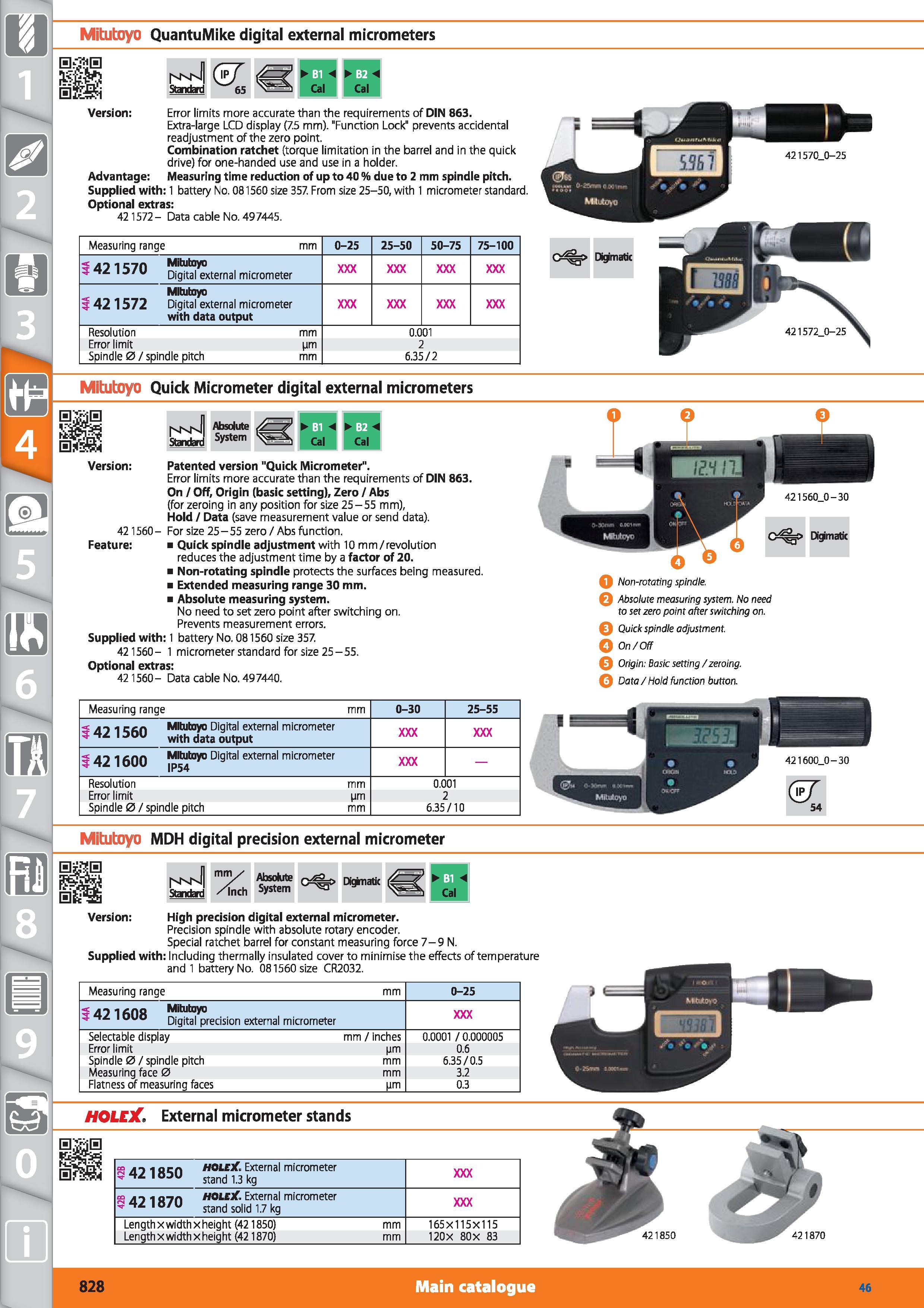

1 Mitutoyo QuantuMike digital external micrometers hMvfl (vj' Standard 65 D Cal Version Error limits more accurate than the requirements of DIN 863. Extra-large LCD display (7.5 mm). "Function Lock" prevents accidental readjustment of the zero point. Combination ratchet (torque limitation in the barrel and in the quick drive) for one-handed use and use in a holder. Advantage Measuring time reduction of up to 40 due to 2 mm spindle pitch. Supplied with 1 battery No. 081560 size 357. From size 25-50, with 1 micrometer standard. Optional extras 421572- Data cable No. 497445. Da Measuring range mm 0-25 25-50 50-75 75-100 3421570 Mitutoyo Digital external micrometer 3421572 Mitutoyo Digital external micrometer with data output Resolution mm 0.001 Error limit (jm 2 Spindle 0 / spindle pitch mm 6.35/2 Mitutoyo Quick Micrometer digital external micrometers Standard Absolute System IU to Version Patented version "Quick Micrometer". Error limits more accurate than the requirements of DIN 863. On / Off, Origin (basic setting). Zero / Abs (for zeroing in any position for size 25-55 mm), Hold / Data (save measurement value or send data). 421560- For size 25-55 zero/Abs function. Feature Quick spindle adjustment with 10 mm/revolution reduces the adjustment time by a factor of 20. Non-rotating spindle protects the surfaces being measured. Extended measuring range 30 mm. Absolute measuring system. No need to set zero point after switching on. Prevents measurement errors. Supplied with 1 battery No. 081560 size 357. 421560- 1 micrometer standard for size 25-55. Optional extras 421560- Data cable No. 497440. Measuring range mm 0-30 25-55 s a-j i r/rn Mitutoyo Digital external micrometer 5 HZ. 130U with data output 3 42 1600 Mltub,VD Digital external micrometer Resolution mm 0.001 Error limit m 2 Spindle 0 / spindle pitch mm 6.35/10 Mitutoyo MDH digital precision external micrometer Standard mm/ /Inch Absolute System Digknatk R - Cal Version High precision digital external micrometer. Precision spindle with absolute rotary encoder. Special ratchet barrel for constant measuring force 7-9 N. Supplied with Including thermally insulated cover to minimise the effects of temperature and 1 battery No. 081560 size CR2032. Measuring range mm 0-25 3 42 1608 Mituto 0 5 z. duo Digital precision external micrometer Selectable display mm / inches 0.0001 / 0.000005 Error limit (im 0.6 Spindle 0 / spindle pitch mm 6.35/0.5 Measuring face 0 mm 3.2 Flatness of measuring faces jm 0.3 HOLEX External micrometer stands co gen NOlf/. External micrometer 3 HZ o DU standl.3kg co a-in NOU/. External micrometer 3 IB/U stand solid 1.7 kg Lengthxwidthxheight (421850) mm 165X115X115 Lengthxwidthxheight (421870) mm 120X 80X 83 421850 1870 Q Non-rotating spindle. Q Absolute measuring system. No need to set zero point after switching on. Q Quick spindle adjustment. O On/Off Origin Basic setting/zeroing. 0 Data / Hold function button. Digimatk 421560_0-30 828 Main catalogue Hoffmann Group 46
