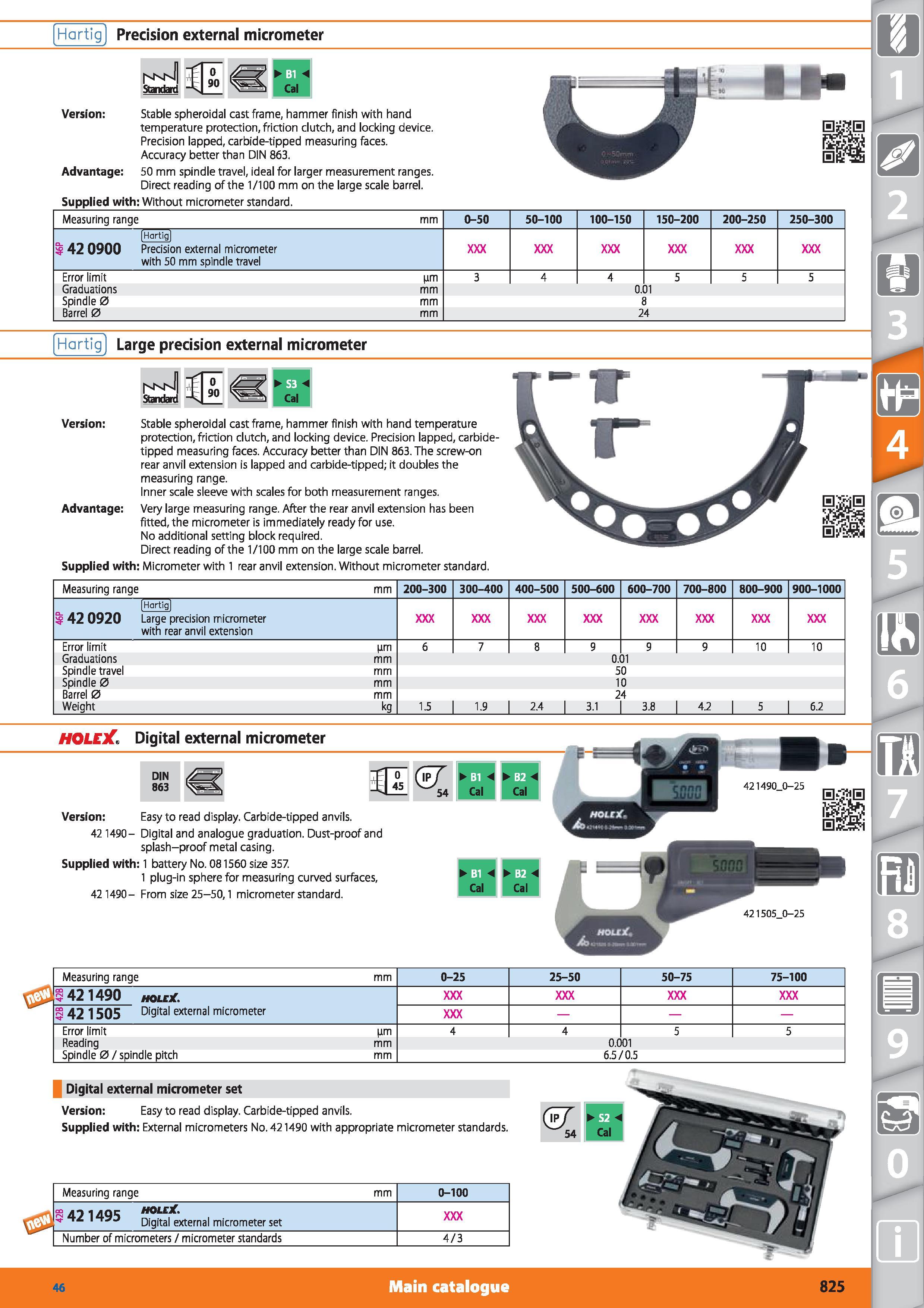

825 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.825

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 825 0825 ENG Lab2u

Hartig Precision external micrometer vkn Standard Version Stable spheroidal cast frame, hammer finish with hand temperature protection, friction clutch, and locking device. Precision lapped, carbide-tipped measuring faces. Accuracy better than DIN 863. Advantage 50 mm spindle travel, ideal for larger measurement ranges. Direct reading of the 1/100 mm on the large scale barrel. Supplied with Without micrometer standard. Measuring range mm 0-50 50-100 100-150 150-200 200-250 250-300 Hartig 5 42 0900 Precision external micrometer with 50 mm spindle travel Error limit nm 3 4 4 5 5 5 Graduations mm 0.01 Spindle 0 mm 8 Barrel 0 mm 24 HartigJ Large precision external micrometer Standard 90 Version Stable spheroidal cast frame, hammer finish with hand temperature protection, friction clutch, and locking device. Precision lapped, carbide-tipped measuring faces. Accuracy better than DIN 863. The screw-on rear anvil extension is lapped and carbide-tipped; it doubles the measuring range. Inner scale sleeve with scales for both measurement ranges. Advantage Very large measuring range. After the rear anvil extension has been fitted, the micrometer is immediately ready for use. No additional setting block required. Direct reading of the 1/100 mm on the large scale barrel. Supplied with Micrometer with 1 rear anvil extension. Without micrometer standard. Measuring range Hartig 42 0920 Large precision micrometer with rear anvil extension Error limit Graduations Spindle travel Spindle 0 Barrel 0 Weight (jm mm kg 200-300 300-400 400-500 500-600 600-700 700-800 800-900 900-1000 10 0.01 50 10 24 1.9 2.4 3.1 3.8 4.2 10 6.2 HOLEX Digital external micrometer DIN 863 I1 o 3 45 ( f 54 < Cal Cal Version Easy to read display. Carbide-tipped anvils. 42 1490- Digital and analogue graduation. Dust-proof and splash-proof metal casing. Supplied with 1 battery No. 081560 size 357. 1 plug-in sphere for measuring curved surfaces, 421490- From size 25-50,1 micrometer standard. E 1 Cal Cal 421505 0-25 Measuring range mm 0-25 25-50 50-75 75-100 421490 holc S 42 1505 Digital external micrometer Error limit (im 4 4 5 5 Reading mm 0.001 Spindle 0 / spindle pitch mm 6.5/0.5 Digital external micrometer set Version Easy to read display. Carbide-tipped anvils. Supplied with External micrometers No. 421490 with appropriate micrometer standards. 8 Measuring range mm 0-100 42 1495 tfOLcX. Digital external micrometer set Number of micrometers / micrometer standards 4/3 46 Main catalogue
