824 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.824

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 824 0824 ENG Lab2u

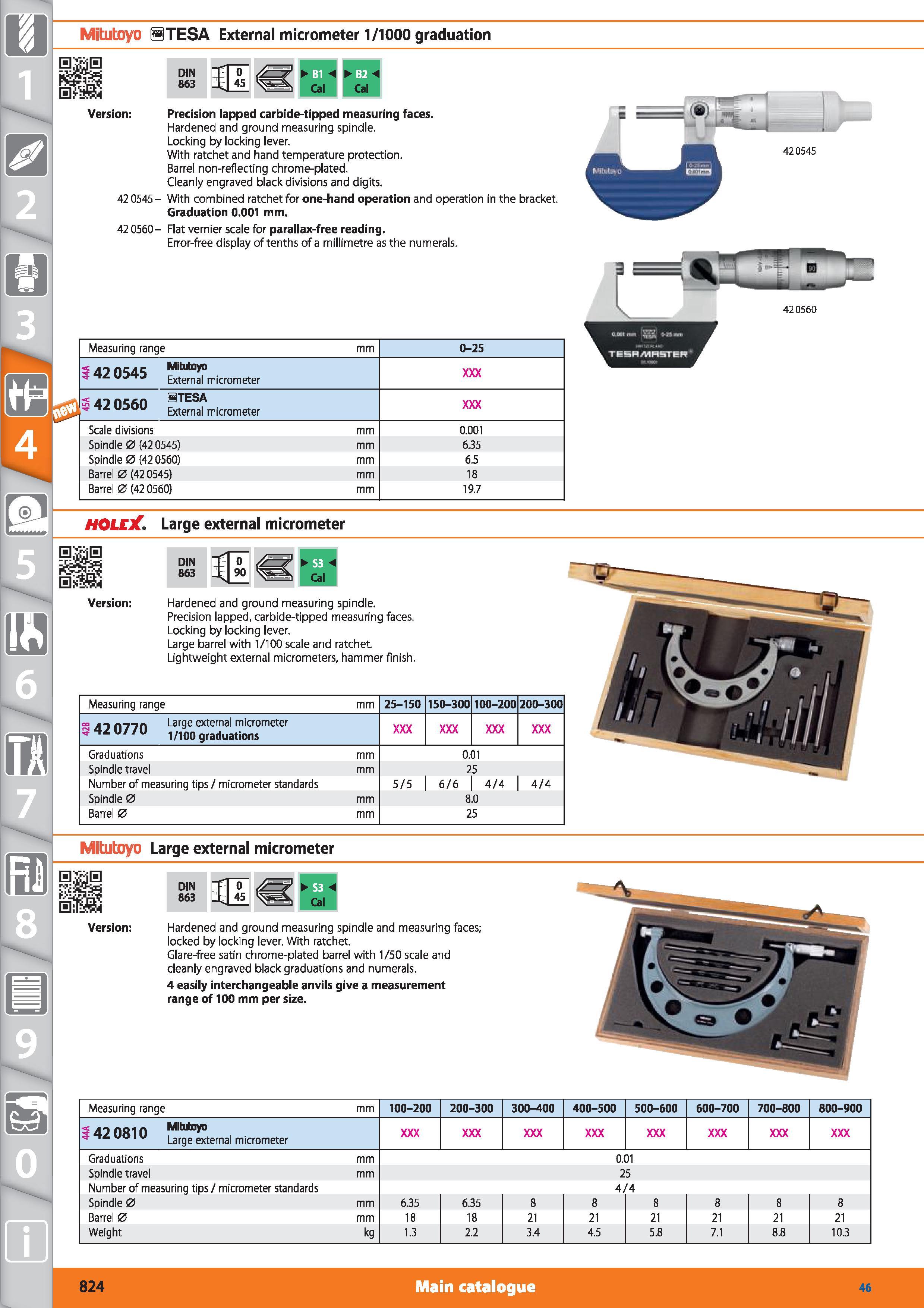

Mitutoyo BTESA External micrometer 1/1000 graduation DIN 863 Cal Version Precision lapped carbide-tipped measuring faces. Hardened and ground measuring spindle. Locking by locking lever. With ratchet and hand temperature protection. Barrel non-reflecting chrome-plated. Cleanly engraved black divisions and digits. 42 0545- With combined ratchet for one-hand operation and operation in the bracket. Graduation 0.001 mm. 42 0560 - Flat vernier scale for parallax-free reading. Error-free display of tenths of a millimetre as the numerals. 420545 Measuring range mm 0-25 S 42 0545 Mihitayo External micrometer < i\Ean HTESA 3 42 0560 External micrometer Scale divisions mm 0.001 Spindle 0 (420545) mm 6.35 Spindle 0(420560) mm 6.5 Barrel 0 (420545) mm 18 Barrel 0 (420560) mm 19.7 HOLEX Large external micrometer DIN 863 Hardened and ground measuring spindle. Precision lapped, carbide-tipped measuring faces. Locking by locking lever. Large barrel with 1/100 scale and ratchet. Lightweight external micrometers, hammer finish. Measuring range mm 25-150 150-300 100-200 200-300 "in niin Large external micrometer 9 42 0770 1/100 graduations Graduations mm 0.01 Spindle travel mm 25 Number of measuring tips / micrometer standards 5/5 6/6 4/4 4/4 Spindle 0 mm 8.0 Barrel 0 mm 25 Mitutoyo Large external micrometer DIN 863 < Cal Version Hardened and ground measuring spindle and measuring faces; locked by locking lever. With ratchet. Glare-free satin chrome-plated barrel with 1/50 scale and cleanly engraved black graduations and numerals. 4 easily interchangeable anvils give a measurement range of 100 mm per size. Measuring range mm 100-200 200-300 300-400 400-500 500-600 600-700 700-800 800-900 < a Mitutoyo 5 Large external micrometer Graduations mm 0.01 Spindle travel mm 25 Number of measuring tips / micrometer standards 4/4 Spindle 0 mm 6.35 6.35 8 8 8 8 8 8 Barrel 0 mm 18 18 21 21 21 21 21 21 Weight kg 1.3 2.2 3.4 4.5 5.8 7.1 8.8 10.3 824 Main catalogue Hoffmann Group 46
