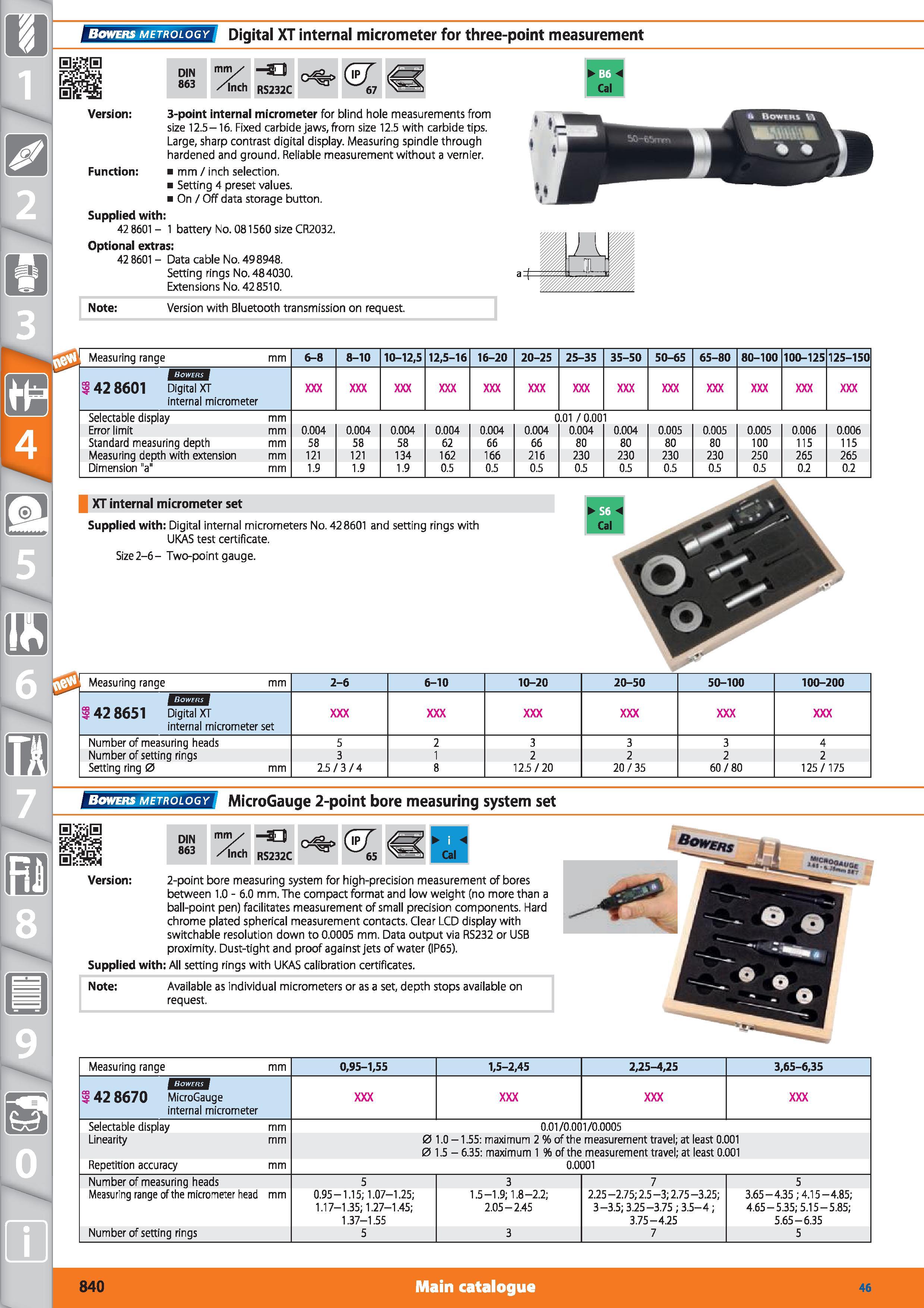

Bowers metrology Digital XT internal micrometer for three-point measurement DIN 863 mm/ /Inch RS232C & 67 Version 3-point internal micrometer for blind hole measurements from size 12.5-16. Fixed carbide jaws, from size 12.5 with carbide tips. Large, sharp contrast digital display. Measuring spindle through hardened and ground. Reliable measurement without a vernier. Function mm / inch selection. Setting 4 preset values. On / Off data storage button. Supplied with 42 8601 - 1 battery No. 081560 size CR2032. Optional extras 42 8601 - Data cable No. 498948. Setting rings No. 484030. Extensions No. 428510. Note Version with Bluetooth transmission on request. Cal Measuring range mm 6-8 8-10 10-12,5 12,5-16 16-20 20-25 25-35 35-50 50-65 65-80 80-100 100-125 125-150 42 8601 Digital XT internal micrometer Selectable display mm c .01 /0.00 Error limit mm 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.004 0.005 0.005 0.005 0.006 0.006 Standard measuring depth mm 58 58 58 62 66 66 80 80 80 80 100 115 115 Measuring depth with extension mm 121 121 134 162 166 216 230 230 230 230 250 265 265 Dimension "a" mm 1.9 1.9 1.9 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.2 0.2 XT internal micrometer set Supplied with Digital internal micrometers No. 428601 and setting rings with UKAS test certificate. Size 2-6- Two-point gauge. Measuring range mm 2-6 6-10 10-20 20-50 50-100 100-200 5 42 8651 Digital XT internal micrometer set Number of measuring heads 5 2 3 3 3 4 Number of setting rings 3 1 2 2 2 2 Setting ring 0 mm 2.5/3/4 8 12.5/20 20/35 60/80 125/175 Bowers metrology MicroGauge 2-point bore measuring system set DIN 863 mm /Inch RS232C T 65 Cal Version 2-point bore measuring system for high-precision measurement of bores between 1.0 - 6.0 mm. The compact format and low weight (no more than a ball-point pen) facilitates measurement of small precision components. Hard chrome plated spherical measurement contacts. Clear LCD display with switchable resolution down to 0.0005 mm. Data output via RS232 or USB proximity. Dust-tight and proof against jets of water (IP65). Supplied with All setting rings with UKAS calibration certificates. Note Available as individual micrometers or as a set, depth stops available on request. Measuring range mm 0,95-1,55 1,5-2,45 2,25-4,25 3,65-6,35 42 8670 MicroGauge internal micrometer Selectable display mm 0.01/0.001/0.0005 Linearity mm 0 1.0 -1.55 maximum 2 of the measurement travel; at least 0.001 0 1.5 - 6.35 maximum 1 of the measurement travel; at least 0.001 Repetition accuracy mm 0.0001 Number of measuring heads 5 3 7 5 Measuring range of the micrometer head mm 0.95-1.15 1.07-1.25; 1.17-1.35; 1.27-1.45; 1.37-1.55 1.5-1.9; 1.8-2.2; 2.05-2.45 2.25 -2.75; 2.5 -3; 2.75 -3.25; 3-3.5; 3.25-3.75; 3.5-4; 3.75-4.25 3.65 - 4.35; 4.15-4.85; 4.65-5.35; 5.15-5.85; 5.65-6.35 Number of setting rings 5 3 7 5 840 Main catalogue Hoffmann Group 46
