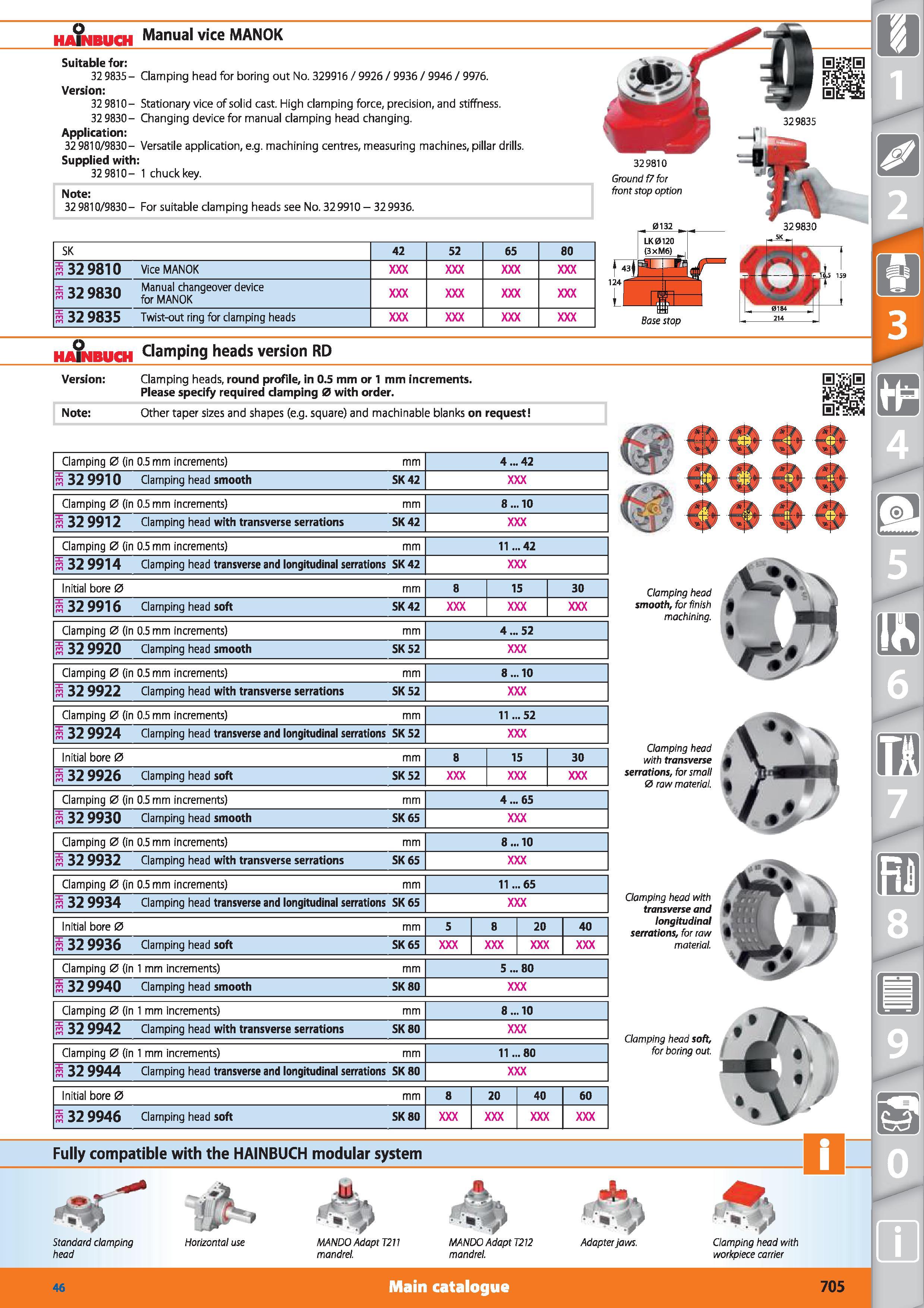

HaHnbuCH Manual vice MANOK Suitable for 32 9835 - Clamping head for boring out No. 329916 / 9926 / 9936 / 9946 / 9976. Version 32 9810- Stationary vice of solid cast. High clamping force, precision, and stiffness. 32 9830 - Changing device for manual clamping head changing. Application 32 9810/9830- Versatile application, e.g. machining centres, measuring machines, pillar drills. Supplied with 32 9810- 1 chuck key. Note 32 9810/9830- For suitable clamping heads see No. 329910 - 329936. SK 42 52 65 80 r 32 9810 Vice MANOK a 32 9830 Manual changeover device for MANOK r 32 9835 Twist-out ring for clamping heads Hfl HWIfH Clamping heads version RD Version Clamping heads, round profile, in 0.5 mm or 1 mm increments. Please specify required clamping 0 with order. Note Other taper sizes and shapes (e.g. square) and machinable blanks on request Clamping 0 (in 0.5 mm increments) mm 4 42 r 32 9910 Clamping head smooth SK42 Clamping 0 (in 0.5 mm increments) mm 8 10 r 32 9912 Clamping head with transverse serrations SK42 Clamping 0 (in 0.5 mm increments) mm 11. .42 r 329914 Clamping head transverse and longitudinal serrations SK 42 Initial bore 0 mm 8 15 30 r 32 9916 Clamping head soft SK42 Clamping 0 (in 0.5 mm increments) mm 4 52 r 32 9920 Clamping head smooth SK 52 Clamping 0 (in 0.5 mm increments) mm 8 10 r 32 9922 Clamping head with transverse serrations SK 52 Clamping 0 (in 0.5 mm increments) mm 11. .52 r 32 9924 Clamping head transverse and longitudinal serrations SK 52 Initial bore 0 mm 8 15 30 r 32 9926 Clamping head soft SK 52 Clamping 0 (in 0.5 mm increments) mm 4 65 r 32 9930 Clamping head smooth SK65 Clamping 0 (in 0.5 mm increments) mm 8 10 r 32 9932 Clamping head with transverse serrations SK65 Clamping 0 (in 0.5 mm increments) mm 11. .65 r 32 9934 Clamping head transverse and longitudinal serrations SK 65 Initial bore 0 mm 5 8 20 40 r 32 9936 Clamping head soft SK65 Clamping 0 (in 1 mm increments) mm 5 80 r 32 9940 Clamping head smooth SK80 Clamping 0 (in 1 mm increments) mm 8 10 r 32 9942 Clamping head with transverse serrations SK80 Clamping 0 (in 1 mm increments) mm 11. .80 r 32 9944 Clamping head transverse and longitudinal serrations SK 80 Initial bore 0 mm 8 20 40 60 r 32 9946 Clamping head soft SK80 Clamping head with transverse and longitudinal serrations, for raw material. Clamping head soft, for boring out. / Fully compatible with the HAINBUCH modular system Standard clamping Horizontal use ii Ui , head MANDO Adapt T211 mandrel. MANDO Adapt T212 mandrel. I Adapter jaws. Clamping head with workpiece carrier Main catalogue Hoffmann Group 46 705
