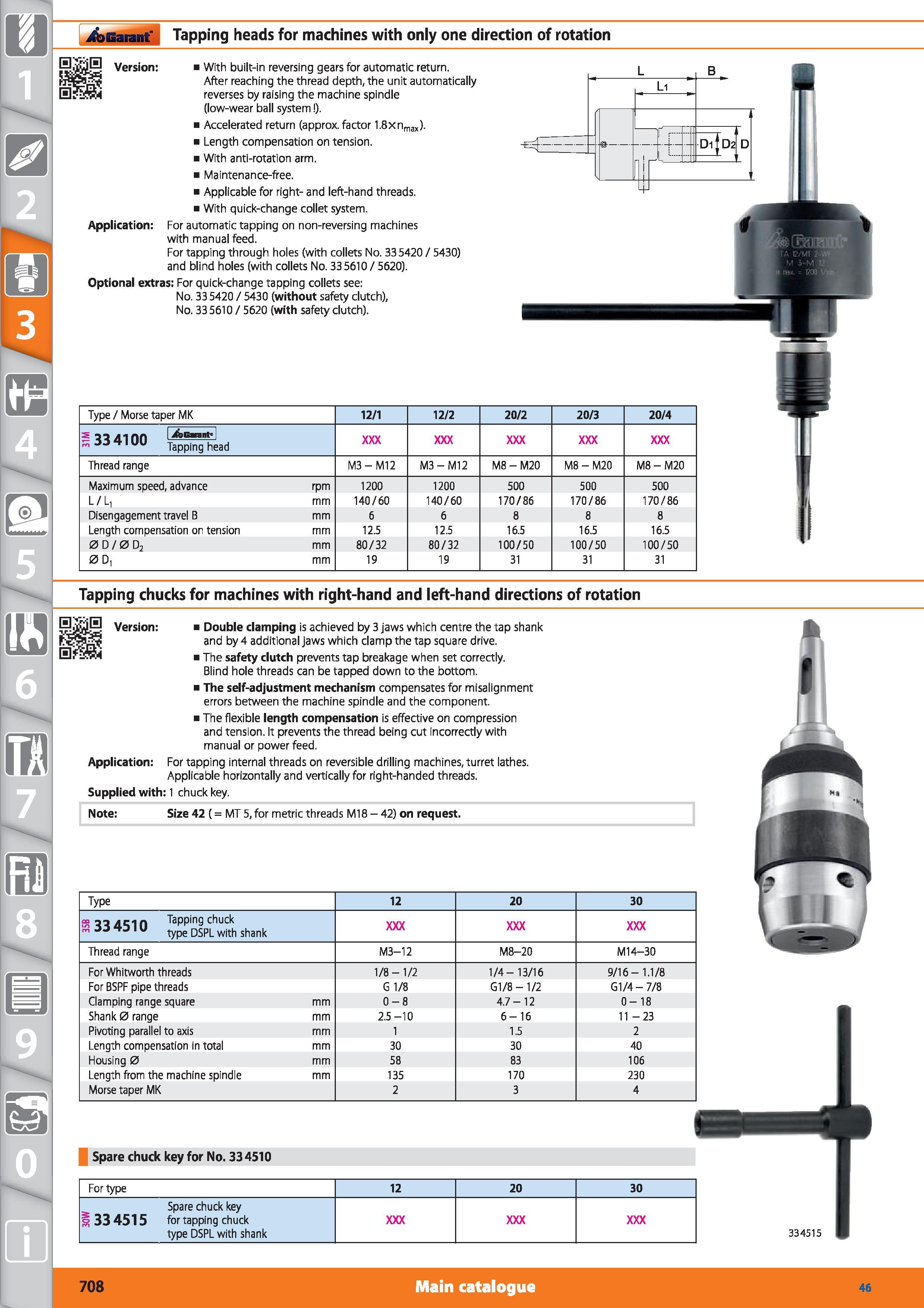

Garant Tapping heads for machines with only one direction of rotation Version With built-in reversing gears for automatic return. After reaching the thread depth, the unit automatically reverses by raising the machine spindle (low-wear ball system ). Accelerated return (approx. factor 1.8xnmax). Length compensation on tension. With anti-rotation arm. Maintenance-free. Applicable for right- and left-hand threads. With quick-change collet system. Application For automatic tapping on non-reversing machines with manual feed. For tapping through holes (with collets No. 33 5420 / 5430) and blind holes (with collets No. 335610/5620). Optional extras For quick-change tapping collets see No. 33 5420 / 5430 (without safety clutch). No. 33 5610 / 5620 (with safety clutch). Type / Morse taper MK 12/1 12/2 20/2 20/3 20/4 5 33 41 nn lAnnnf mU,luu Tapping head Thread range M3-M12 M3 - Ml 2 M8 - M20 M8 - M20 M8 - M20 Maximum speed, advance rpm 1200 1200 500 500 500 L/L, mm 140/60 140/60 170/86 170/86 170/86 Disengagement travel B mm 6 6 8 8 8 Length compensation on tension mm 12.5 12.5 16.5 16.5 16.5 0 D / 0 D2 mm 80/32 80/32 100/50 100/50 100/50 0 D, mm 19 19 31 31 31 Tapping chucks for machines with right-hand and left-hand directions of rotation Version Double clamping is achieved by 3 jaws which centre the tap shank and by 4 additional jaws which clamp the tap square drive. The safety clutch prevents tap breakage when set correctly. Blind hole threads can be tapped down to the bottom. The self-adjustment mechanism compensates for misalignment errors between the machine spindle and the component. The flexible length compensation is effective on compression and tension. It prevents the thread being cut incorrectly with manual or power feed. Application For tapping internal threads on reversible drilling machines, turret lathes. Applicable horizontally and vertically for right-handed threads. Supplied with 1 chuck key. Note Size 42 (= MT 5, for metric threads M18 - 42) on request. Spare chuck key for No. 334510 Type 12 20 30 aa aci n Tapping chuck mW,3lu type DSPLwith shank Thread range M3-12 M8-20 M14-30 For Whitworth threads 1/8 - 1/2 1/4-13/16 9/16-1.1/8 For BSPF pipe threads G 1/8 G1/8 -1/2 G1/4-7/8 Clamping range square mm 0-8 4.7-12 0-18 Shank 0 range mm 2.5-10 6-16 11 -23 Pivoting parallel to axis mm 1 1.5 2 Length compensation in total mm 30 30 40 Housing 0 mm 58 83 106 Length from the machine spindle mm 135 170 230 Morse taper MK 2 3 4 For type 12 20 30 Spare chuck key 33 4515 for tapping chuck type DSPL with shank 334515 708 Main catalogue Hoffmann Group 46
