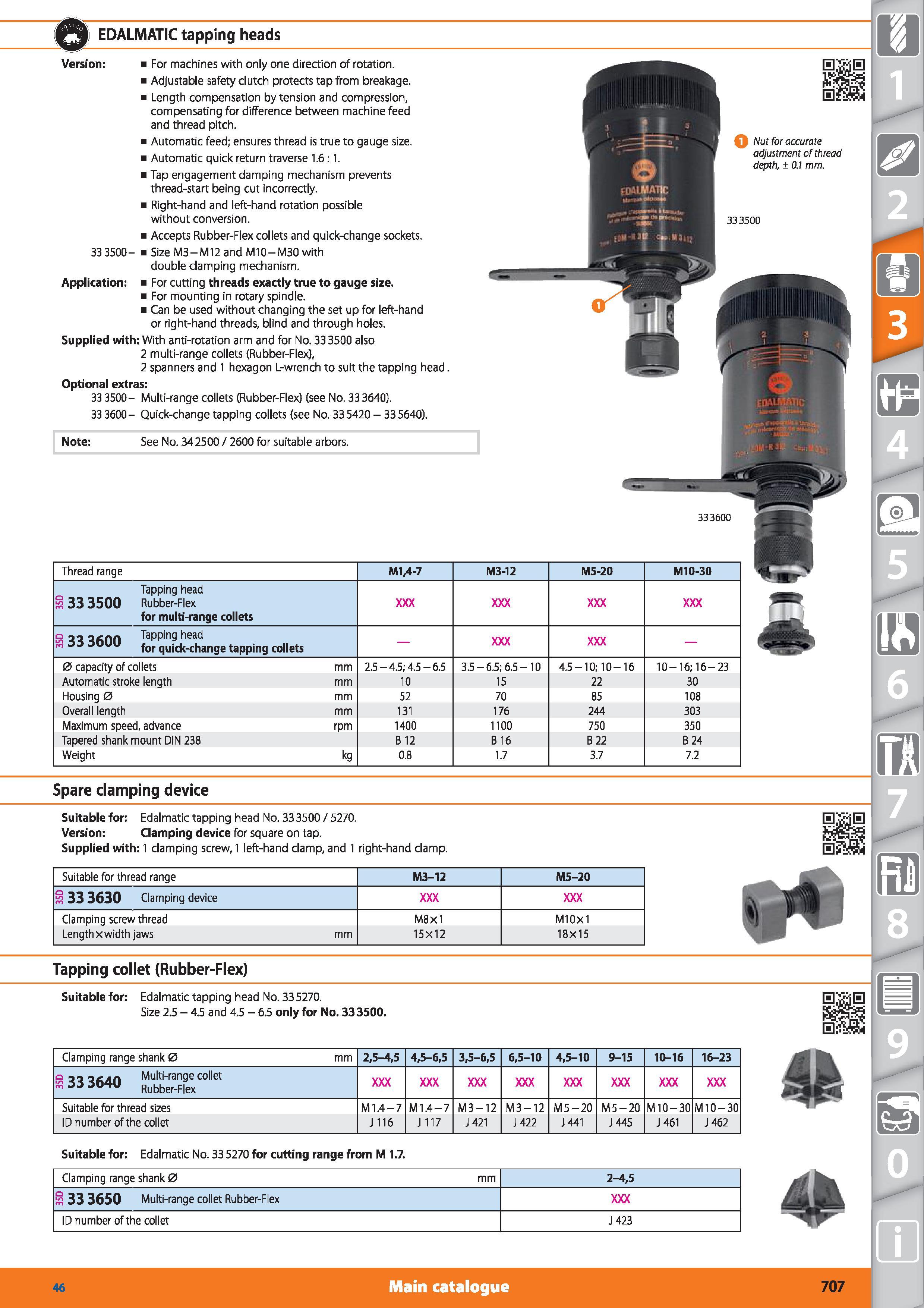

EDALMATIC tapping heads Version For machines with only one direction of rotation. Adjustable safety clutch protects tap from breakage. Length compensation by tension and compression, compensating for difference between machine feed and thread pitch. Automatic feed; ensures thread is true to gauge size. Automatic quick return traverse 1.6:1. Tap engagement damping mechanism prevents thread-start being cut incorrectly. Right-hand and left-hand rotation possible without conversion. Accepts Rubber-Flex collets and quick-change sockets. 33 3500- Size M3-M12 and M10-M30 with double clamping mechanism. Application For cutting threads exactly true to gauge size. For mounting in rotary spindle. Can be used without changing the set up for left-hand or right-hand threads, blind and through holes. Supplied with With anti-rotation arm and for No. 33 3500 also 2 multi-range collets (Rubber-Flex), 2 spanners and 1 hexagon L-wrench to suit the tapping head. Optional extras 33 3500- Multi-range collets (Rubber-Flex) (see No. 333640). 33 3600- Quick-change tapping collets (see No. 335420 - 335640). Q Nut for accurate adjustment of thread depth, ± 0.1 mm. Note See No. 34 2500 / 2600 for suitable arbors. Thread range M1/4-7 M3-12 M5-20 M10-30 Tapping head S 33 3500 Rubber-Flex for multi-range collets B 33 3600 Tapping head m for quick-change tapping collets 0 capacity of collets mm 2.5-4.5; 4.5-6.5 3.5-6.5; 6.5-10 4.5-10; 10-16 10-16;16-23 Automatic stroke length mm 10 15 22 30 Housing 0 mm 52 70 85 108 Overall length mm 131 176 244 303 Maximum speed, advance rpm 1400 1100 750 350 Tapered shank mount DIN 238 B 12 B 16 B 22 B 24 Weight kg 0.8 1.7 3.7 7.2 m\ in Spare clamping device Suitable for Edalmatic tapping head No. 33 3500 / 5270. Version Clamping device for square on tap. Supplied with 1 clamping screw, 1 left-hand clamp, and 1 right-hand clamp. Suitable for thread range M3-12 M5-20 S 33 3630 Clamping device Clamping screw thread M8x1 M10X1 Length x width jaws mm 15X12 18X15 Tapping collet (Rubber-Flex) Suitable for Edalmatic tapping head No. 335270. Size 2.5 - 4.5 and 4.5 - 6.5 only for No. 333500. Clamping range shank 0 mm 2,5-4,5 4,5-6,5 3,5-6,5 6,5-10 4,5-10 9-15 10-16 16-23 q Multi-range collet s 33 3640 Rubber_Ffex Suitable for thread sizes M1.4-7 M1.4-7 M3-12 M3-12 M5-20 M5-20 M10-30 M10-30 ID number of the collet J 116 J 117 J 421 J 422 J 441 J 445 J 461 J 462 Suitable for Edalmatic No. 33 5270 for cutting range from M 1.7. Clamping range shank 0 mm 2-4,5 S 33 3650 Multi-range collet Rubber-Flex ID number of the collet J 423 J Main catalogue Hoffmann Group 46 707
