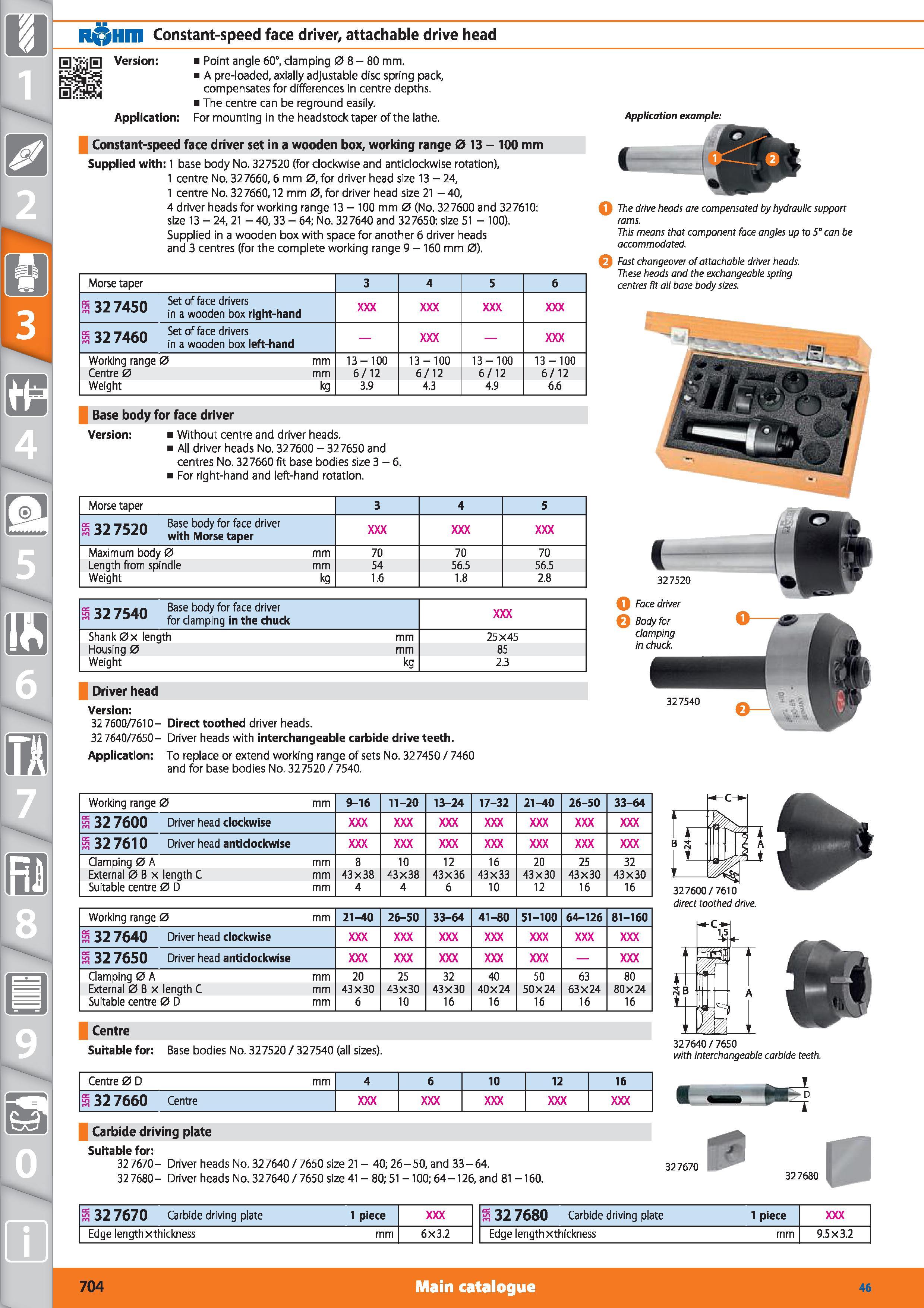

1 R Hm Constant-speed face driver, attachable drive head da IU Version Point angle 60°, clamping 0 8 - 80 mm. A pre-loaded, axially adjustable disc spring pack, compensates for differences in centre depths. The centre can be reground easily. Application For mounting in the headstock taper of the lathe. Constant-speed face driver set in a wooden box, working range 0 13 - 100 mm Supplied with 1 base body No. 32 7520 (for clockwise and anticlockwise rotation), 1 centre No. 32 7660,6 mm 0, for driver head size 13 - 24, 1 centre No. 32 7660,12 mm 0, for driver head size 21 - 40, 4 driver heads for working range 13-100 mm 0 (No. 327600 and 32 7610 size 13 - 24,21 - 40,33 - 64; No. 327640 and 32 7650 size 51 - 100). Supplied in a wooden box with space for another 6 driver heads and 3 centres (for the complete working range 9 - 160 mm 0). Morse taper 3 4 5 6 s 32 7450 Set of face drivers in a wooden box right-hand s 32 7460 Set of face drivers in a wooden box left-hand Working range 0 mm 13-100 13-100 13-100 13-100 Centre 0 mm 6/12 6/12 6/12 6/12 Weight kg 3.9 4.3 4.9 6.6 Q The drive heads are compensated by hydraulic support rams. This means that component face angles up to J" can be accommodated. Q Fast changeover of attachable driver heads. These heads and the exchangeable spring centres fit all base body sizes. Base body for face driver Version Without centre and driver heads. All driver heads No. 327600 - 327650 and centres No. 327660 fit base bodies size 3-6. For right-hand and left-hand rotation. Morse taper 3 4 5 n-i-ir-in Base body for face driver H 32 7520 wjth Morse taper Maximum body 0 mm 70 70 70 Length from spindle mm 54 56.5 56.5 Weight kg 1.6 1.8 2.8 a. 7c4.fi Base body for face driver B 3 /J4U for c ampjng n the chuck Shank 0x length mm 25x45 Housing 0 mm 85 Weight kg 2.3 Driver head Version 32 7600/7610- Direct toothed driver heads. 32 7640/7650- Driver heads with interchangeable carbide drive teeth. Application To replace or extend working range of sets No. 32 7450 / 7460 and for base bodies No. 32 7520 / 7540. Working range 0 mm 9-16 11-20 13-24 17-32 21-40 26-50 33-64 ifl 32 7600 Driver head clockwise 32 7610 Driver head anticlockwise Clamping 0 A mm 8 10 12 16 20 25 32 External 0 B x length C mm 43X38 43X38 43X36 43X33 43X30 43X30 43X30 Suitable centre 0 D mm 4 4 6 10 12 16 16 Working range 0 mm 21-40 26-50 33-64 41-80 51-100 64-126 81-160 is 32 7640 Driver head clockwise 3 32 7650 Driver head anticlockwise Clamping 0 A mm 20 25 32 40 50 63 80 External 0 B x length C mm 43X30 43X30 43X30 40X24 50X24 63X24 80X24 Suitable centre 0 D mm 6 10 16 16 16 16 16 Centre Suitable for Base bodies No. 32 7520 / 32 7540 (all sizes). Centre 0 D mm 4 6 10 12 16 S 32 7660 Centre Carbide driving plate Suitable for 32 7670- Driver heads No. 327640 / 7650 size 21 32 7680- Driver heads No. 327640 / 7650 size 41 327640 / 7650 with interchangeable carbide teeth. 40; 26-50, and 33-64. 80; 51 -100:64-126, and 81- 160. 327670 32 7680 S 32 7670 Carbide driving plate 1 piece S 32 7680 Carbide driving plate 1 piece Edge length xthickness mm 6X3.2 Edge length xthickness mm 9.5 X 3.2 Application example ( 327520 Face driver Body for clamping in chuck. 327540 327600 / 7610 direct toothed drive. 704 Main catalogue Hoffmann Group 46
