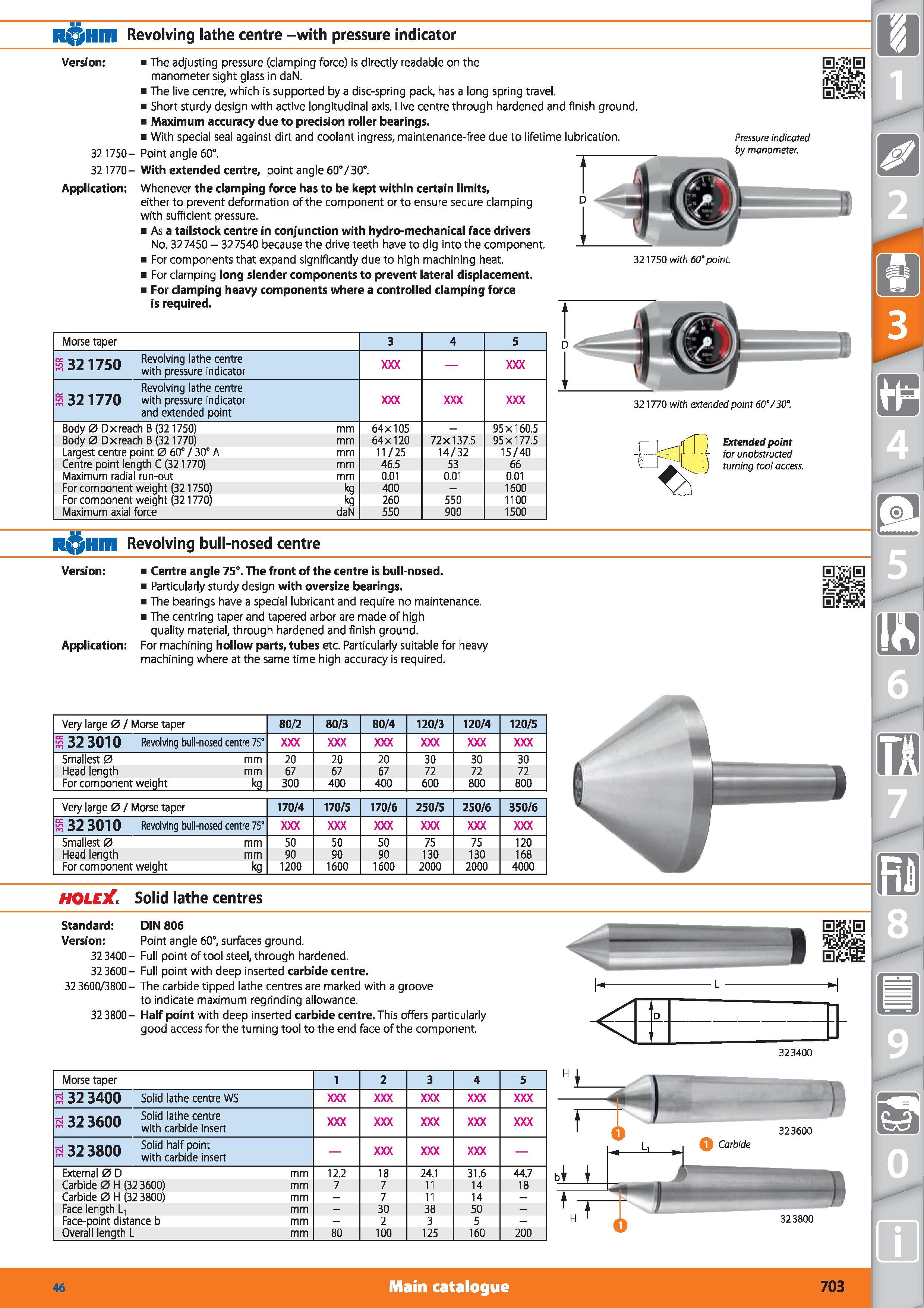

703 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.703

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 703 0703 ENG Lab2u

R Hm Revolving lathe centre -with pressure indicator Version The adjusting pressure (clamping force) is directly readable on the manometer sight glass in daN. The live centre, which is supported by a disc-spring pack, has a long spring travel. Short sturdy design with active longitudinal axis. Live centre through hardened and finish ground. Maximum accuracy due to precision roller bearings. With special seal against dirt and coolant ingress, maintenance-free due to lifetime lubrication. 32 1750- Point angle 60°. 32 1770- With extended centre, point angle 60°/30°. Application Whenever the clamping force has to be kept within certain limits, either to prevent deformation of the component or to ensure secure clamping with sufficient pressure. As a tailstock centre in conjunction with hydro-mechanical face drivers No. 32 7450 - 32 7540 because the drive teeth have to dig into the component. For components that expand significantly due to high machining heat. For clamping long slender components to prevent lateral displacement. For clamping heavy components where a controlled clamping force is required. 321750 with 60°point. Morse taper 3 4 5 K 33 17 fl Revolving lathe centre 3 l/DU wi(h pressure indicator Revolving lathe centre S 32 1770 with pressure indicator and extended point Body 0 Dx reach B (321750) mm 64x105 - 95x160.5 Body 0 Dx reach B (321770) mm 64x120 72x137.5 95x177.5 Largest centre point 0 60° / 30° A mm 11/25 14/32 15/40 Centre point length C (321770) mm 46.5 53 66 Maximum radial run-out mm 0.01 0.01 0.01 For component weight (321750) kg 400 - 1600 For component weight (321770) kg 260 550 1100 Maximum axial force daN 550 900 1500 321770 with extended point 60°/30°. Extended point for unobstructed turning tool access. R Hm Revolving bull-nosed centre Version Centre angle 75°. The front of the centre is bull-nosed. Particularly sturdy design with oversize bearings. The bearings have a special lubricant and require no maintenance. The centring taper and tapered arbor are made of high quality material, through hardened and finish ground. Application For machining hollow parts, tubes etc. Particularly suitable for heavy machining where at the same time high accuracy is required. HOLEX Solid lathe centres Standard DIN 806 Version Point angle 60°, surfaces ground. 32 3400- Full point of tool steel, through hardened. 32 3600- Full point with deep inserted carbide centre. 32 3600/3800- The carbide tipped lathe centres are marked with a groove to indicate maximum regrinding allowance. 32 3800- Half point with deep inserted carbide centre. This offers particularly good access for the turning tool to the end face of the component. Very large 0 / Morse taper 80/2 80/3 80/4 120/3 120/4 120/5 S 32 3010 Revolving bull-nosed centre 75° Smallest 0 mm 20 20 20 30 30 30 Head length mm 67 67 67 72 72 72 For component weight kg 300 400 400 600 800 800 Very large 0 / Morse taper 170/4 170/5 170/6 250/5 250/6 350/6 S 32 3010 Revolving bull-nosed centre 75° Smallest 0 mm 50 50 50 75 75 120 Head length mm 90 90 90 130 130 168 For component weight kg 1200 1600 1600 2000 2000 4000 323400 Morse taper 1 2 3 4 5 S 32 3400 Solid lathe centre WS j Solid lathe centre m with carbide insert 37 sonn Solid half point m with carbide insert External 0 D mm 12.2 18 24.1 31.6 44.7 Carbide 0H (32 3600) mm 7 7 11 14 18 Carbide 0H (32 3800) mm - 7 11 14 - Face length L, mm - 30 38 50 - Face-point distance b mm 2 3 5 Overall length L mm 80 100 125 160 200 323800 m Main catalogue Hoffmann Group 46 703
