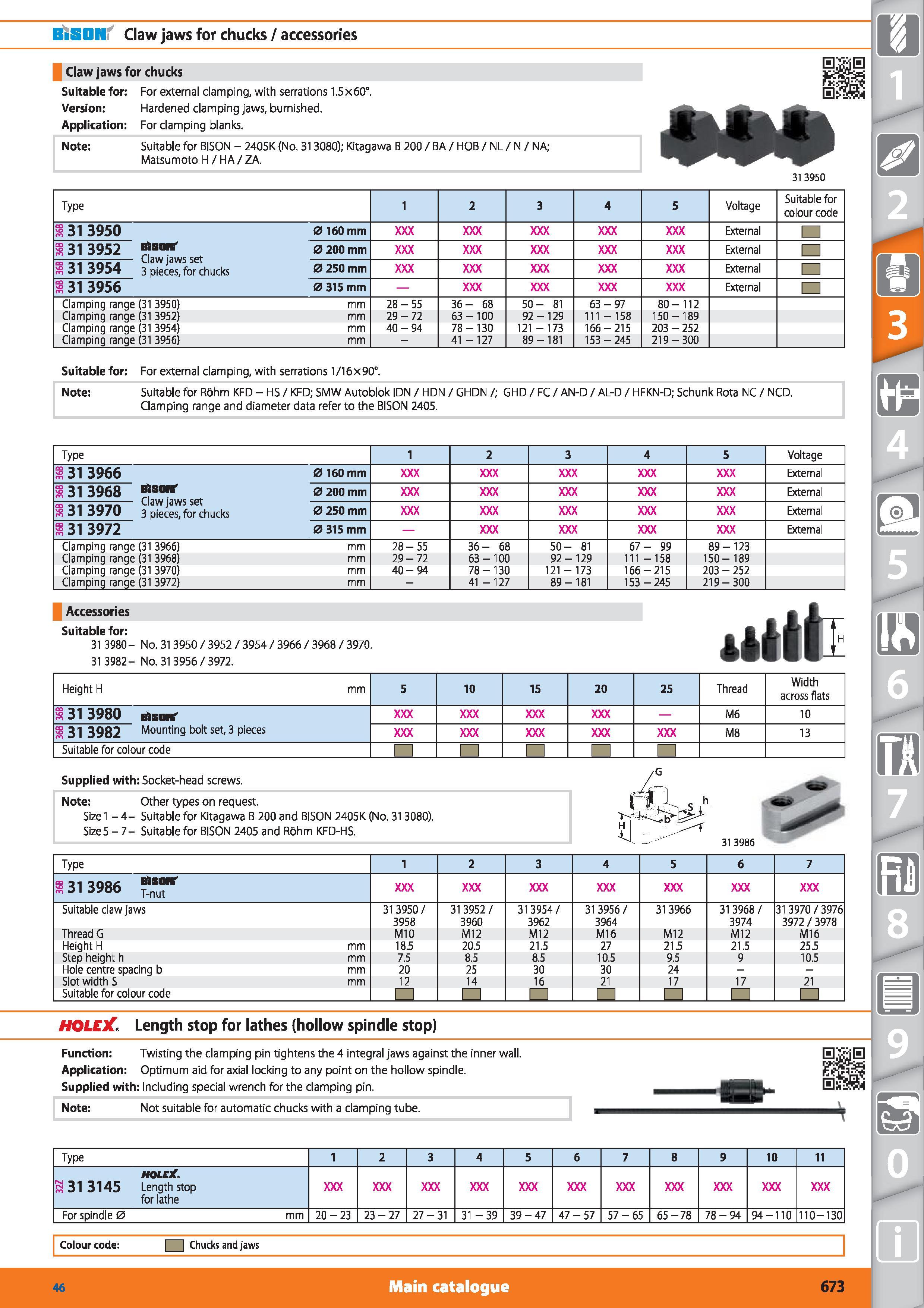

BiSON Claw jaws for chucks / accessories Claw jaws for chucks Suitable for For external clamping, with serrations 1.5x60°. Version Hardened clamping jaws, burnished. Application For clamping blanks. Note Suitable for BISON - 2405K (No. 313080); Kitagawa B 200 / BA / HOB / NL / N / NA; Matsumoto H / HA / ZA. 31 3950 Type 1 2 3 4 5 Voltage Suitable for colour code s 31 3950 0 160 mm External s 31 3952 rilBH' Claw jaws set 3 pieces, for chucks 0 200 mm External 31 3954 0 250 mm External s 31 3956 0 315 mm External Clamping range (31 3950) mm 28-55 36- 68 50- 81 63-97 80-112 Clamping range (31 3952) mm 29-72 63-100 92-129 111-158 150-189 Clamping range (31 3954) mm 40-94 78-130 121 -173 166-215 203 - 252 Clamping range (31 3956) mm - 41 -127 89-181 153 -245 219-300 Suitable for For external clamping, with serrations 1/16x90°. Note Suitable for Rohm KFD - HS / KFD; SMW Autoblok IDN / HDN / GHDN /; GHD/FC/ AN-D / AL-D / HFKN-D; Schunk Rota NC / NCD. Clamping range and diameter data refer to the BISON 2405. Type 1 2 3 4 5 Voltage s 31 3966 0 160 mm External s 31 3968 rtsoiir Claw jaws set 3 pieces, for chucks 0 200 mm External 31 3970 0 250 mm External 3 31 3972 0 315 mm External Clamping range (31 3966) mm 28-55 36- 68 50- 81 67- 99 89-123 Clamping range (31 3968) mm 29-72 63-100 92-129 111-158 150-189 Clamping range (31 3970) mm 40-94 78-130 121 - 173 166-215 203 - 252 Clamping range (31 3972) mm - 41 - 127 89-181 153 -245 219-300 Accessories Suitable for 31 3980 - No. 31 3950 / 3952 / 3954 / 3966 / 3968 / 3970. 31 3982- No. 31 3956 / 3972. liiil Height H mm 5 10 15 20 25 Thread Width across flats s 31 3980 risoiii' M6 10 S 31 3982 Mounting bolt set, 3 pieces M8 13 Suitable for colour code Supplied with Socket-head screws. Note Other types on request. Size 1-4- Suitable for Kitagawa B 200 and BISON 2405K (No. 31 3080). Size5 - 7- Suitable for BISON 2405 and Rohm KFD-HS. 31 3986 Type 1 2 3 4 5 6 7 3 31 3986 Suitable claw jaws 313950 / 31 3952 / 313954/ 31 3956/ 313966 313968 / 31 3970/3976 3958 3960 3962 3964 3974 3972/3978 Thread G M10 M12 M12 M16 M12 M12 M16 Height H mm 18.5 20.5 21.5 27 21.5 21.5 25.5 Step height h mm 7.5 8.5 8.5 10.5 9.5 9 10.5 Hole centre spacing b mm 20 25 30 30 24 Slot width S mm 12 14 16 21 17 17 21 Suitable for colour code HOLEX Length stop for lathes (hollow spindle stop) Function Twisting the clamping pin tightens the 4 integral jaws against the inner wall. Application Optimum aid for axial locking to any point on the hollow spindle. Note Not suitable for automatic chucks with a clamping tube. Type 1 2 3 4 5 6 7 8 9 10 11 holbC. pj 31 3145 Length stop for lathe For spindle 0 mm 20-23 23-27 27-31 31-39 39-47 47-57 57-65 65-78 78-94 94-110 110-130 Colour code Chucks and jaws m Main catalogue Hoffmann Group 46 673
