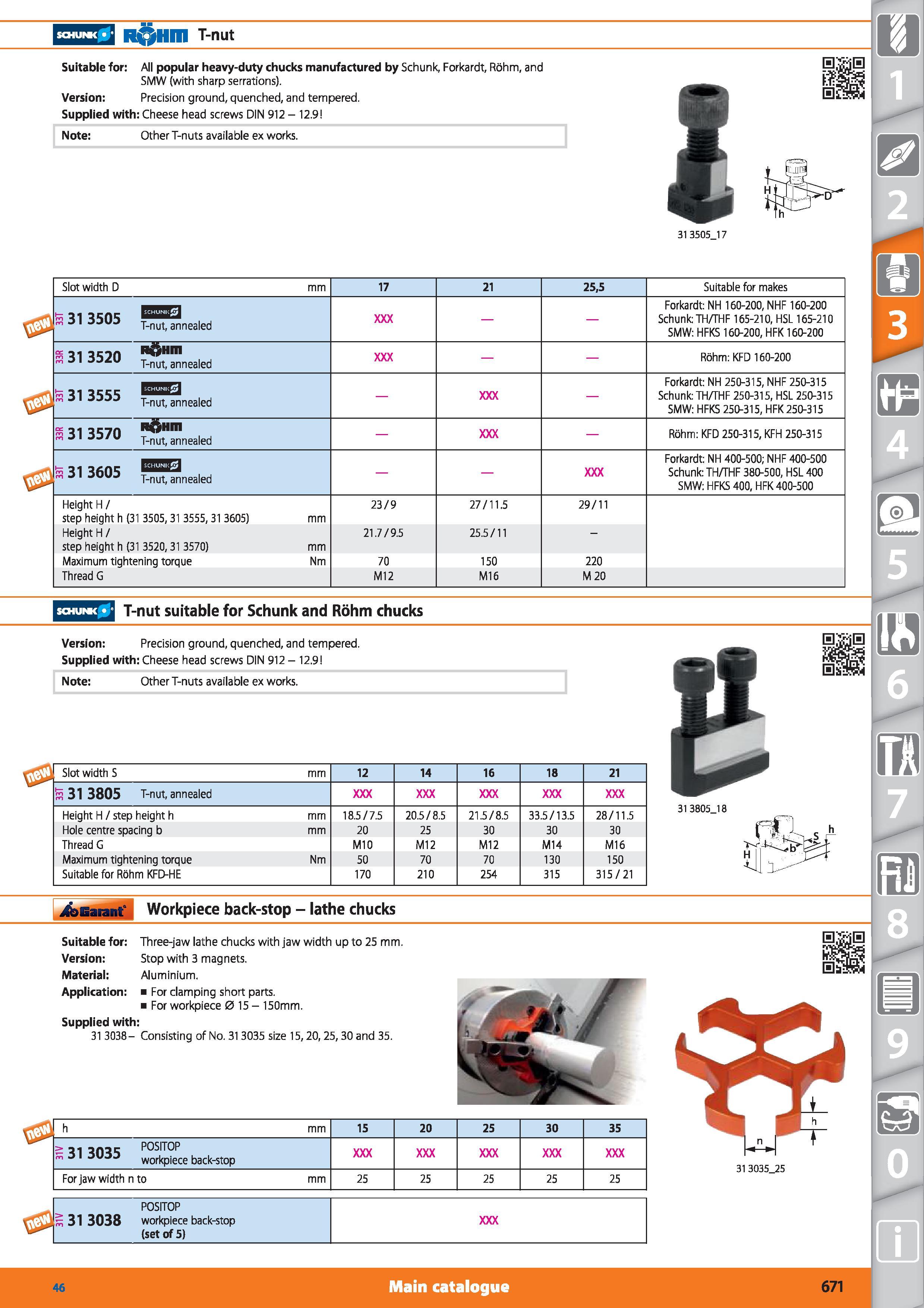

R Hm T-nut Suitable for All popular heavy-duty chucks manufactured by Schunk, Forkardt, Rohm, and SMW (with sharp serrations). Version Precision ground, quenched, and tempered. Supplied with Cheese head screws DIN 912 - 12.9 Note Other T-nuts available ex works. 313505J7 El -11s Slot width D mm 17 21 25,5 Suitable for makes 5 31 3505 T-nut, annealed Forkardt NH 160-200, NHF 160-200 Schunk TH/THF 165-210, HSL 165-210 SMW HFKS 160-200, HFK 160-200 s 31 3520 R Hm T-nut, annealed Rohm KFD 160-200 s 31 3555 T-nut, annealed Forkardt NH 250-315, NHF 250-315 Schunk TH/THF 250-315, HSL 250-315 SMW HFKS 250-315, HFK 250-315 31 3570 RftHm T-nut, annealed Rohm KFD 250-315, KFH 250-315 s 31 3605 T-nut, annealed Forkardt NH 400-500; NHF 400-500 Schunk TH/THF 380-500, HSL 400 SMW HFKS 400, HFK 400-500 Height H / step height h (31 3505,31 3555,31 3605) mm 23/9 27/11.5 29/11 Height H / step height h (31 3520,31 3570) mm 21.7/9.5 25.5/11 - Maximum tightening torque Nm 70 150 220 Thread G M12 M16 M 20 T-nut suitable for Schunk and Rohm chucks IP Version Precision ground, quenched, and tempered. Supplied with Cheese head screws DIN 912 - 12.9 Note Other T-nuts available ex works. Slot width S mm 12 14 16 18 21 5 31 3805 T-nut, annealed Height H / step height h mm 18.5/7.5 20.5/8.5 21.5/8.5 33.5/13.5 28/11.5 Hole centre spacing b mm 20 25 30 30 30 Thread G M10 M12 M12 M14 M16 Maximum tightening torque Nm 50 70 70 130 150 Suitable for Rohm KFD-HE 170 210 254 315 315/21 31 3805 J 8 jfeGarant , Workpiece back-stop - lathe chucks Suitable for Three-jaw lathe chucks with jaw width up to 25 mm. Version Stop with 3 magnets. Material Aluminium. Application For clamping short parts. For workpiece 0 15 - 150mm. Supplied with 31 3038- Consisting of No. 31 3035 size 15,20, 25,30 and 35. 3. h mm 15 20 25 30 35 > 31 3035 P0SIT0P m j workpiece back-stop For jaw width n to mm 25 25 25 25 25 31 3035_25 POSITOP 31 3038 workpiece back-stop (set of 5) m Main catalogue Hoffmann Group 46 671
