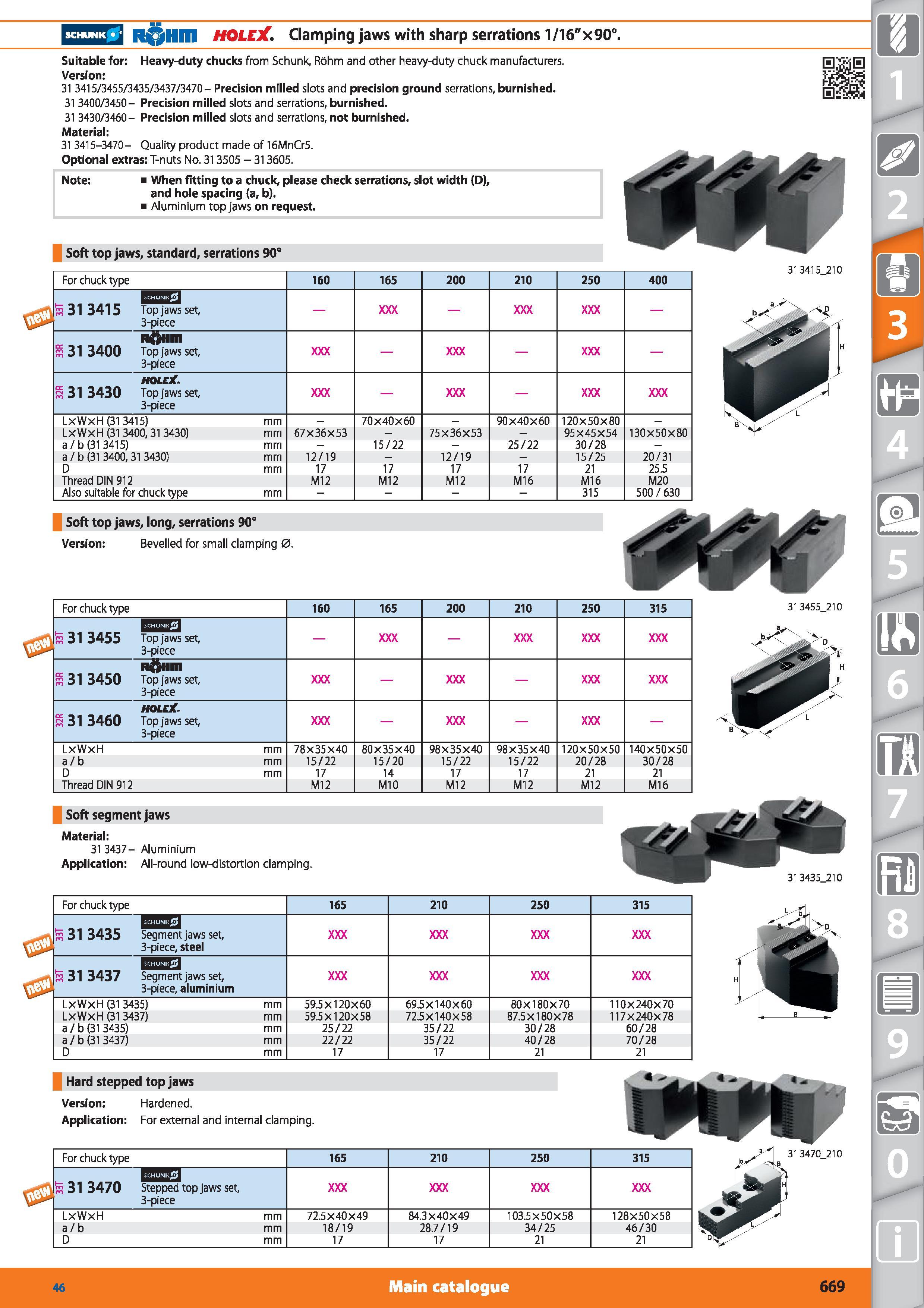

R HIII HOLEX Clamping jaws with sharp serrations 1/16"x90° Suitable for Heavy-duty chucks from Schunk, Rohm and other heavy-duty chuck manufacturers. Version 31 3415/3455/3435/3437/3470- Precision milled slots and precision ground serrations, burnished. 31 3400/3450- Precision milled slots and serrations, burnished. 31 3430/3460- Precision milled slots and serrations, not burnished. Material 31 3415-3470- Quality product made of 16MnCr5. Optional extras T-nuts No. 313505 - 313605. Note When fitting to a chuck, please check serrations, slot width (D), and hole spacing (a, b). Aluminium top jaws on request. Soft top jaws, standard, serrations 90° For chuck type 160 165 200 210 250 400 R31 3415 Top jaws set, 3-piece s 31 3400 R&Hm Top jaws set, 3-piece s 31 3430 HOLE3C. Top jaws set, 3-piece LxWxH (31 3415) mm - 70x40x60 - 90 x40x60 120x50x80 - LxWxH (31 3400,31 3430) mm 67x36x53 - 75x36x53 - 95X45X54 130X50X80 a / b (31 3415) mm - 15/22 - 25/22 30/28 - a / b (31 3400, 31 3430) mm 12/19 - 12/19 - 15/25 20/31 D mm 17 17 17 17 21 25.5 Thread DIN 912 M12 M12 M12 M16 M16 M20 Also suitable for chuck type mm 315 500 / 630 1 For chuck type 160 165 200 210 250 315 3 31 3455 Top jaws set, 3-piece s 31 3450 R&Hm Top jaws set, 3-piece s 31 3460 HOLEX Top jaws set, 3-piece LxWxH mm 78x35x40 80x35x40 98 x 35 x40 98 x 35 x40 120x50x50 140x50x50 a/b mm 15/22 15/20 15/22 15/22 20/28 30/28 D mm 17 14 17 17 21 21 Thread DIN 912 M12 M10 M12 M12 M12 M16 Soft segment jaws Material 31 3437- Aluminium Application All-round low-distortion clamping. For chuck type 165 210 250 315 I SCHUNKfij 5 31 3435 Segment jaws set, 3-piece, steel 5 31 3437 Segment jaws set, 3-piece, aluminium I LxWxH (31 3435) mm 59.5X120X60 69.5X140X 60 80X180X70 110X240X70 LxWxH (31 3437) mm 59.5X120X58 72.5X140X58 87.5X180X78 117X240X78 a / b (31 3435) mm 25/22 35/22 30/28 60/28 a / b (31 3437) mm 22/22 35/22 40/28 70/28 D mm 17 17 21 21 Hard stepped top jaws Version Hardened. Application For external and internal clamping. For chuck type 165 210 250 315 5 31 3470 Stepped top jaws set, 3-piece LxWxH mm 72.5 x40 x49 84.3x40x49 103.5x50x58 128x50x58 a/b mm 18/19 28.7/19 34/25 46/30 D mm 17 17 21 21 31 3435_210 31 3470 210 m Soft top jaws, long, serrations 90° Version Bevelled for small clamping 0. Main catalogue Hoffmann Group 46 669
