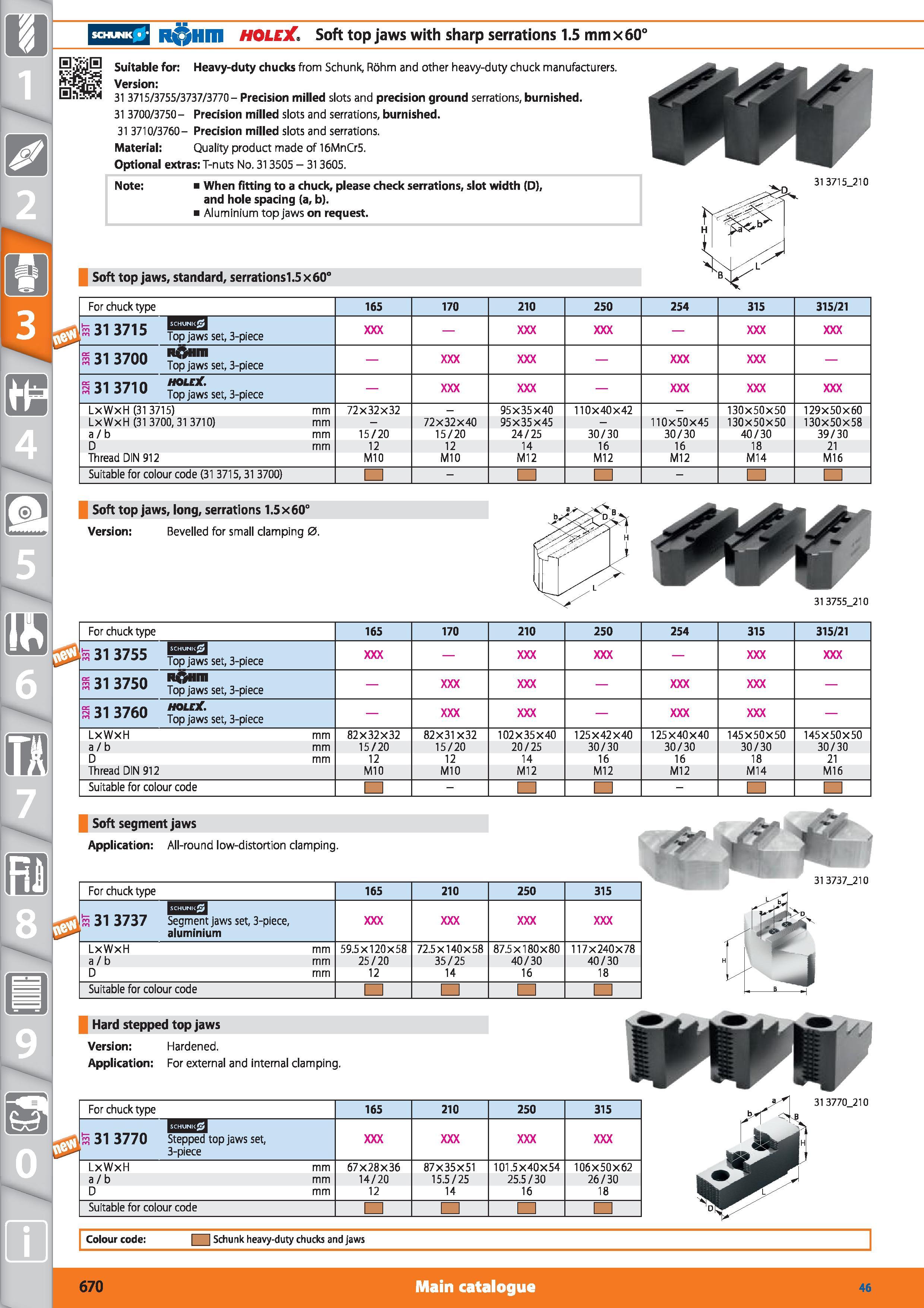

670 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.670

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 670 0670 ENG Lab2u

1 9 R Hm HOLEX Soft top jaws with sharp serrations 1.5 mm x60° HSjH EnT Suitable for Heavy-duty chucks from Schunk, Rohm and other heavy-duty chuck manufacturers. Version 31 3715/3755/3737/3770- Precision milled slots and precision ground serrations, burnished. 31 3700/3750- Precision milled slots and serrations, burnished. 31 3710/3760- Precision milled slots and serrations. Material Quality product made of 16MnCr5. Optional extras T-nuts No. 313505 - 313605. When fitting to a chuck, please check serrations, slot width (D), and hole spacing (a, b). Aluminium top jaws on request. Note Soft top jaws, standard, serrations1.5x60° For chuck type 165 170 210 250 254 315 315/21 s 31 3715 1 schunkSS 1 Top jaws set, 3-piece 31 3700 R am Top jaws set, 3-piece s 31 3710 HOLEX Top jaws set, 3-piece 1 LxWxFI (313715) mm 72x32x32 - 95x35x40 110x40x42 - 130x50x50 129x50x60 LxWxH (31 3700,31 3710) mm 72x32x40 95x35x45 110x50x45 130x50x50 130x50x58 a / b mm 15/20 15/20 24/25 30/30 30/30 40/30 39/30 D mm 12 12 14 16 16 18 21 Thread DIN 912 M10 M10 M12 M12 M12 M14 M16 Suitable for colour code (31 3715,31 3700) - - Soft top jaws, long, serrations 1.5x60° Version Bevelled for small clamping 0. 31 3755_210 For chuck type 165 170 210 250 254 315 315/21 31 3755 bpr Top jaws set, 3-piece 31 3750 R6 m Top jaws set, 3-piece a 31 3760 LxWxFI mm 82X32X32 82X31X32 102 X 35 X40 125 X42 X40 125 X40 X40 145X50X50 145X50X50 a / b mm 15/20 15/20 20/25 30/30 30/30 30/30 30/30 D mm 12 12 14 16 16 18 21 Thread DIN 912 M10 M10 M12 M12 M12 M14 M16 Suitable for colour code - - Soft segment jaws Application All-round low-distortion clamping. For chuck type 165 210 250 315 IS 31 3737 Segment jaws set, 3-piece, aluminium LxWxFI mm 59.5x120x58 72.5x140x58 87.5x180x80 117x240x78 a / b mm 25/20 35/25 40/30 40/30 D mm 12 14 16 18 Suitable for colour code Hard stepped top jaws Version Hardened. Application For external and internal clamping. Si For chuck type 165 210 250 315 S 31 3770 Stepped top jaws set, 3-piece LxWxFI mm 67x28x36 87x35x51 101.5X40X54 106X50X62 a/b mm 14/20 15.5/25 25.5/30 26/30 D mm 12 14 16 18 Suitable for colour code 31 3770 210 Colour code I Schunk heavy-duty chucks and jaws 670 Main catalogue Hoffmann Group 46
