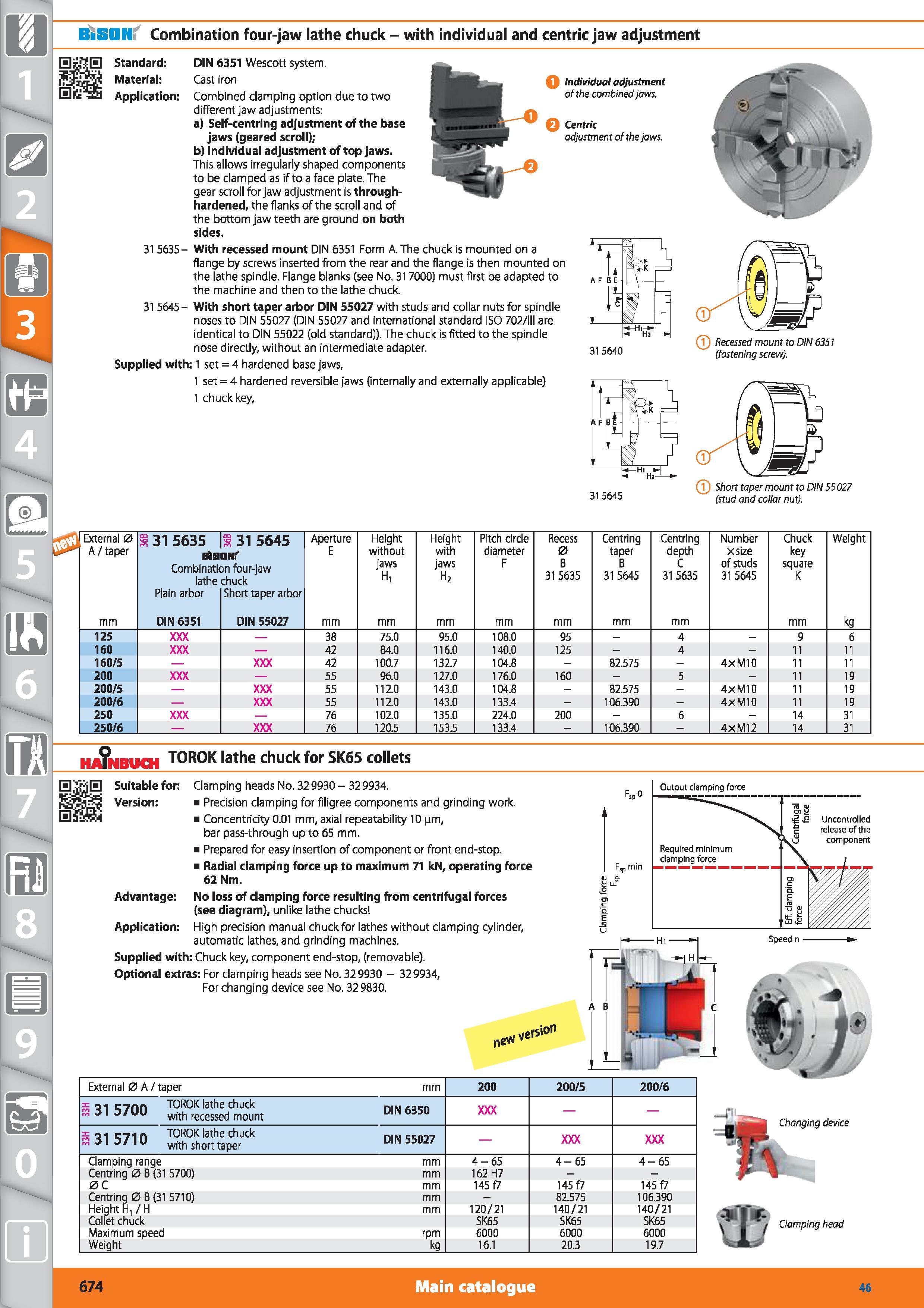

BiSON Combination four-jaw lathe chuck - with individual and centric jaw adjustment Standard DIN 6351 Wescott system. Material Cast iron Application Combined clamping option due to two different jaw adjustments a) Self-centring adjustment of the base jaws (geared scroll); b) Individual adjustment of top jaws. This allows irregularly shaped components to be clamped as if to a face plate. The gear scroll for jaw adjustment is through-hardened, the flanks of the scroll and of the bottom jaw teeth are ground on both sides. 31 5635- With recessed mount DIN 6351 Form A. The chuck is mounted on a flange by screws inserted from the rear and the flange is then mounted on the lathe spindle. Flange blanks (see No. 317000) must first be adapted to the machine and then to the lathe chuck. 31 5645- With short taper arbor DIN 55027 with studs and collar nuts for spindle noses to DIN 55027 (DIN 55027 and international standard ISO 702/111 are identical to DIN 55022 (old standard)). The chuck is fitted to the spindle nose directly, without an intermediate adapter. Supplied with 1 set 4 hardened base jaws, 1 set 4 hardened reversible jaws (internally and externally applicable) 1 chuck key. Q Individual adjustment of the combined jaws. Centric adjustment of the jaws. \ 315640 - i Recessed mount to DIN 6351 (fastening screw). 315645 (stud and collar nut). External 0 A / taper 31 5635 ris Combinatk lathe Plain arbor s 31 5645 DM' jn four-jaw chuck Short taper arbor Aperture E Height without jaws H, Height with jaws h2 Pitch circle diameter F Recess 0 B 31 5635 Centring taper B 31 5645 Centring depth C 31 5635 Number xsize of studs 31 5645 Chuck key square K Weight mm DIN 6351 DIN 55027 mm kg 125 38 75.0 95.0 108.0 95 4 9 6 160 42 84.0 116.0 140.0 125 - 4 - 11 11 160/5 42 100.7 132.7 104.8 82.575 4XM10 11 11 200 55 96.0 127.0 176.0 160 5 11 19 200/5 55 112.0 143.0 104.8 82.575 4XM10 11 19 200/6 55 112.0 143.0 133.4 106.390 4xM10 11 19 250 76 102.0 135.0 224.0 200 6 14 31 250/6 76 120.5 153.5 133.4 - 106.390 - 4xM12 14 31 HflVfiniFfH TOROK lathe chuck for SK65 collets Suitable for Clamping heads No. 32 9930 - 32 9934. Version Precision clamping for filigree components and grinding work. Concentricity 0.01 mm, axial repeatability 10 nm, bar pass-through up to 65 mm. Prepared for easy insertion of component or front end-stop. Radial clamping force up to maximum 71 kN, operating force 62 Nm. No loss of clamping force resulting from centrifugal forces (see diagram), unlike lathe chucks High precision manual chuck for lathes without clamping cylinder, automatic lathes, and grinding machines. Supplied with Chuck key, component end-stop, (removable). Optional extras For clamping heads see No. 329930 - 329934, For changing device see No. 329830. Output clamping force Advantage Application neW versi°n External 0 A/taper mm 200 200/5 200/6 S 31 c7nn TOROK lathe chuck with recessed mount DIN 6350 i 51 C71 n TOROK lathe chuck m31 37 1 u with short taper DIN 55027 Clamping range mm 4-65 4-65 4-65 Centring 0 B (31 5700) mm 162 H7 0C mm 145 f7 145 f7 145 f7 Centring 0 B (31 5710) mm 82.575 106.390 Height H, / H mm 120/21 140/21 140/21 Collet chuck SK65 SK65 SK65 Maximum speed rpm 6000 6000 6000 Weight kg 16.1 20.3 19.7 -T Changing device Clamping head 674 Main catalogue Hoffmann Group 46
