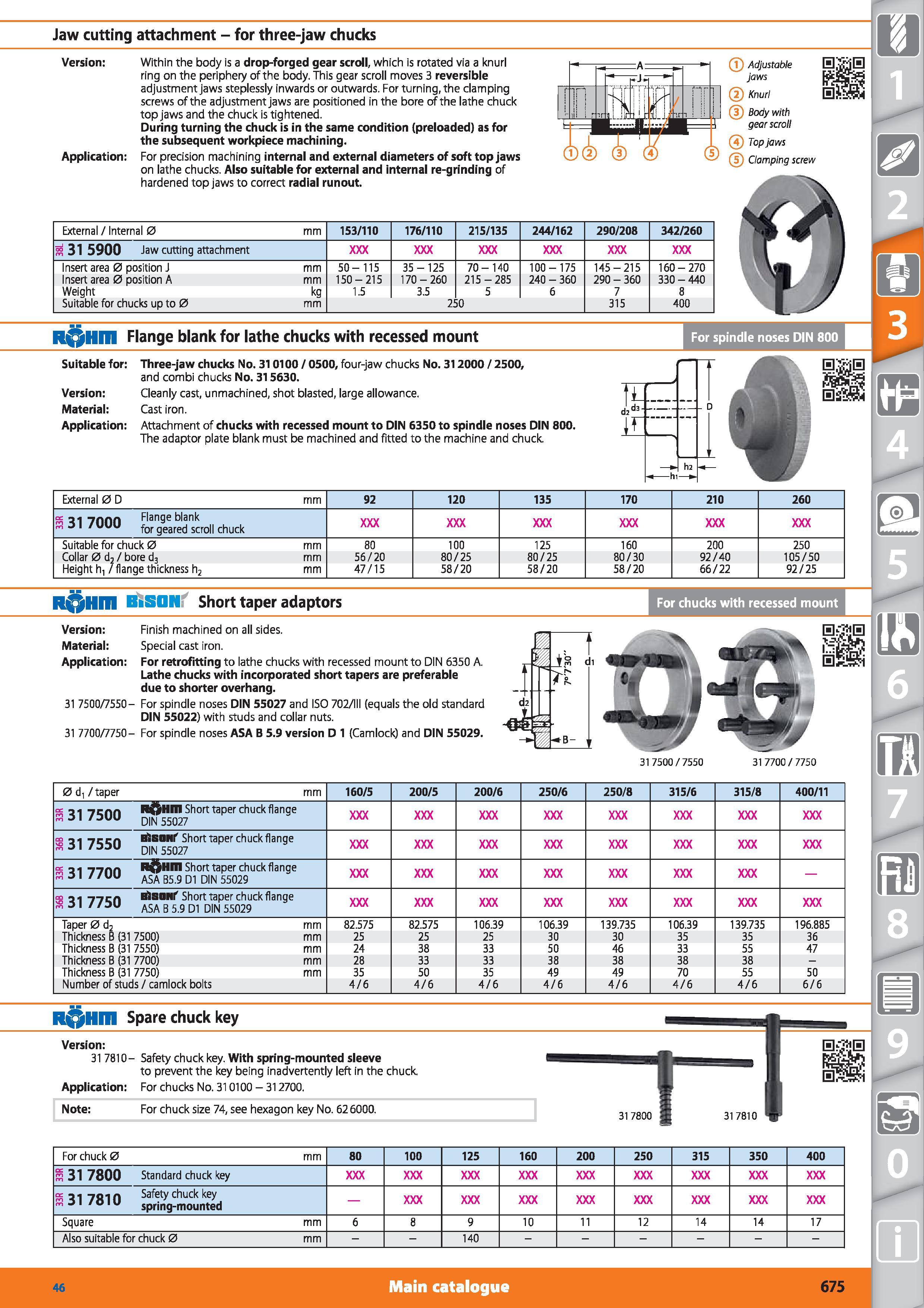

Jaw cutting attachment - for three-jaw chucks Version Within the body is a drop-forged gear scroll, which is rotated via a knurl ring on the periphery of the body. This gear scroll moves 3 reversible adjustment jaws steplessly inwards or outwards. For turning, the clamping screws of the adjustment jaws are positioned in the bore of the lathe chuck top jaws and the chuck is tightened. During turning the chuck is in the same condition (preloaded) as for the subsequent workpiece machining. Application For precision machining internal and external diameters of soft top jaws on lathe chucks. Also suitable for external and internal re-grinding of hardened top jaws to correct radial runout. (j Adjustable jaws (5 Knurl (3 Body with gear scroll (5 Top jaws ( Clamping screw External / Internal 0 mm 153/110 176/110 215/135 244/162 290/208 342/260 8 31 5900 Jaw cutting attachment Insert area 0 position J mm 50-115 35-125 70-140 100-175 145-215 160-270 Insert area 0 position A mm 150-215 170 - 260 215-285 240 - 360 290 - 360 330 - 440 Weight kg 1.5 3.5 5 6 7 8 Suitable for chucks up to 0 mm 250 315 400 R HIH Flange blank for lathe chucks with recessed mount Suitable for Three-jaw chucks No. 310100 / 0500, four-jaw chucks No. 312000 / 2500, and combi chucks No. 315630. Version Cleanly cast, unmachined, shot blasted, large allowance. Material Cast iron. Application Attachment of chucks with recessed mount to DIN 6350 to spindle noses DIN 800. The adaptor plate blank must be machined and fitted to the machine and chuck. Jtl h h2 - For spindle noses DIN 800 External 0 D mm 92 120 135 170 210 260 S ai vnnn Flange blank a 31 7000 for geared saoN chuck Suitable for chuck 0 mm 80 100 125 160 200 250 Collar 0 d2 / bore d3 mm 56/20 80/25 80/25 80/30 92/40 105/50 Height h, / flange thickness h2 mm 47/15 58/20 58/20 58/20 66/22 92/25 R Hm BiSON Short taper adaptors For chucks with recessed mount Version Finish machined on all sides. Material Special cast iron. Application For retrofitting to lathe chucks with recessed mount to DIN 6350 A. Lathe chucks with incorporated short tapers are preferable due to shorter overhang. 31 7500/7550- For spindle noses DIN 55027 and ISO 702/111 (equals the old standard DIN 55022) with studs and collar nuts. 31 7700/7750- For spindle noses ASA B 5.9 version D 1 (Camlock) and DIN 55029. 317500 / 7550 31 7700/7750 0 d1 / taper mm 160/5 200/5 200/6 250/6 250/8 315/6 315/8 400/11 r 31 7500 RQHm short taper chuck flange DIN 55027 s 31 7550 rtSMir Short taper chuck flange DIN 55027 r 31 7700 R Hm Short taper chuck flange ASA B5.9 DI DIN 55029 s 31 7750 rilBHIir Short taper chuck flange ASA B 5.9 DI DIN 55029 Taper 0 d2 mm 82.575 82.575 106.39 106.39 139.735 106.39 139.735 196.885 Thickness B (31 7500) mm 25 25 25 30 30 35 35 36 Thickness B (31 7550) mm 24 38 33 50 46 33 55 47 Thickness B (31 7700) mm 28 33 33 38 38 38 38 - Thickness B (31 7750) mm 35 50 35 49 49 70 55 50 Number of studs / camlock bolts 4/6 4/6 4/6 4/6 4/6 4/6 4/6 6/6 R HIH Spare chuck key Version 31 7810- Safety chuck key. With spring-mounted sleeve to prevent the key being inadvertently left in the chuck. Application For chucks No. 310100 - 312700. Note For chuck size 74, see hexagon key No. 626000. 317800 For chuck 0 mm 80 100 125 160 200 250 315 350 400 R 31 7800 Standard chuck key r 317810 Safety chuck key spring-mounted Square mm 6 8 9 10 11 12 14 14 17 Also suitable for chuck 0 mm 140 Main catalogue Hoffmann Group 46 675
