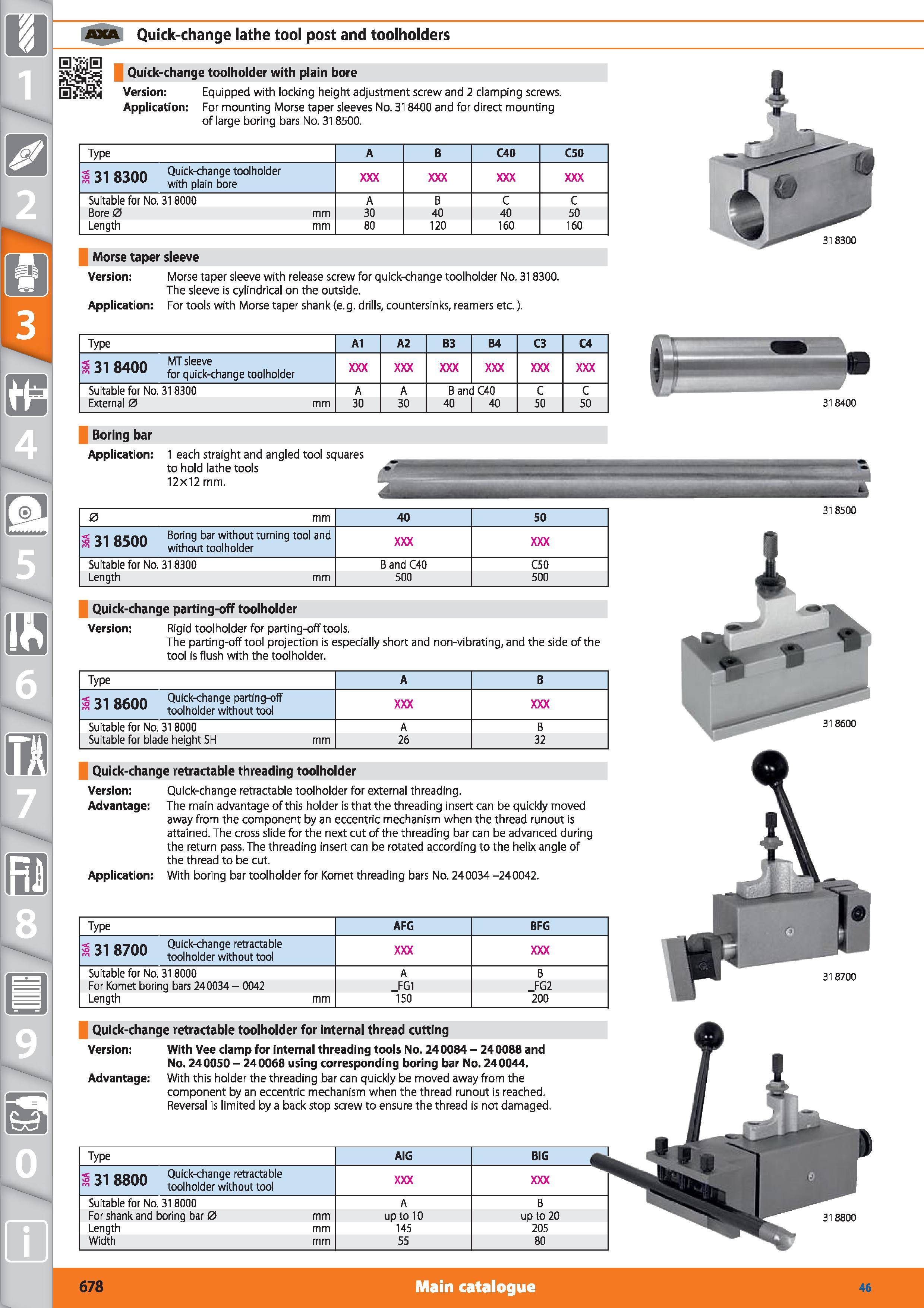

Quick-change lathe tool post and toolholders Quick-change toolholder with plain bore Version Equipped with locking height adjustment screw and 2 clamping screws. Application For mounting Morse taper sleeves No. 318400 and for direct mounting of large boring bars No. 318500. Type A B C40 C50 1 31 8300 Quick-change toolholder with plain bore Suitable for No. 318000 A B c c Bore 0 mm 30 40 40 50 Length mm 80 120 160 160 Morse taper sleeve Version Morse taper sleeve with release screw for quick-change toolholder No. 318300. The sleeve is cylindrical on the outside. Application For tools with Morse taper shank (e.g. drills, countersinks, reamers etc.). Type A1 A2 B3 B4 C3 C4 131 8400 MT sleeve for quick-change toolholder Suitable for No. 318300 A A B and C40 c c External 0 mm 30 30 40 40 50 50 Boring bar Application 1 each straight and angled tool squares to hold lathe tools 12x12 mm. 31 8400 (Ul to m ; 31 g7nn Quick-change retractable i 3 o/UU toolholder without tool Suitable for No. 318000 For Komet boring bars 240034 - Length 0042 Quick-change retractable toolholder for internal thread cutting Version With Vee clamp for internal threading tools No. 24 0084 - 24 0088 and No. 240050 - 240068 using corresponding boring bar No. 240044. Advantage With this holder the threading bar can quickly be moved away from the component by an eccentric mechanism when the thread runout is reached. Reversal is limited by a back stop screw to ensure the thread is not damaged. i 51 Bftnn Quick-change parting-off i 3 OOUU toolholder without tool Suitable for No. 318000 Suitable for blade height SH Quick-change retractable threading toolholder Version Advantage Application Quick-change retractable toolholder for external threading. The main advantage of this holder is that the threading insert can be quickly moved away from the component by an eccentric mechanism when the thread runout is attained. The cross slide for the next cut of the threading bar can be advanced during the return pass. The threading insert can be rotated according to the helix angle of the thread to be cut. With boring bar toolholder for Komet threading bars No. 240034 -240042. ; or nn Boring bar without turning tool and i 3 D3UU w thout toolholder Suitable for No. 318300 Length B and C40 500 Quick-change parting-off toolholder Version Rigid toolholder for parting-off tools. The parting-off tool projection is especially short and non-vibrating, and the side of the tool is flush with the toolholder. 31 8500 318700 I Qonn Quick-change retractable 3 oouu toolholder without tool Suitable for No. 318000 For shank and boring bar 0 Length Width A up to 10 145 55 B up to 20 205 80 678 Main catalogue Hoffmann Group 46
