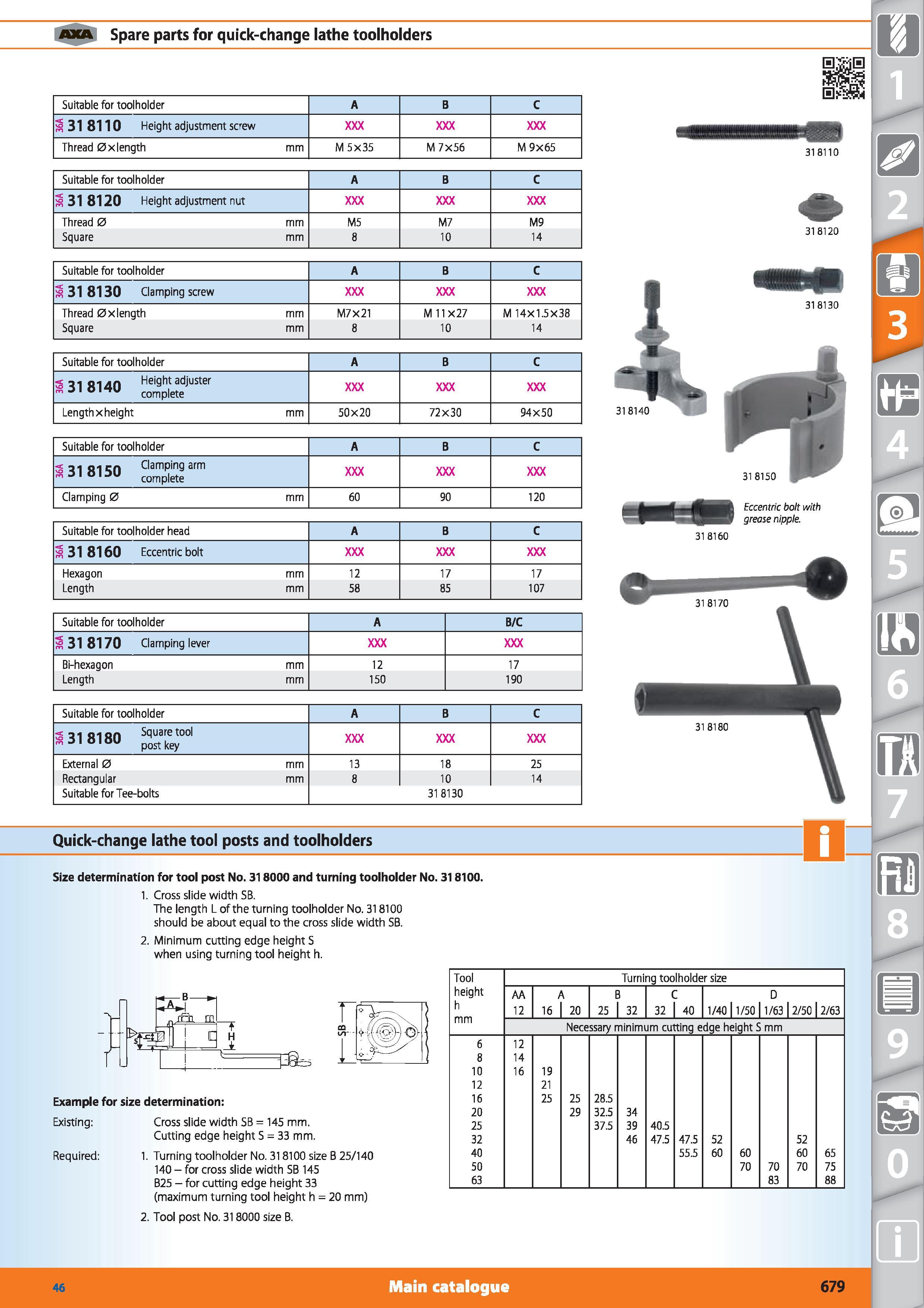

Spare parts for quick-change lathe toolholders Suitable for toolholder A B C 1 31 8110 Height adjustment screw Thread 0xlength mm M 5x35 M 7x56 M 9x65 318110 Suitable for toolholder A B C i 31 8120 Height adjustment nut Thread 0 mm M5 M7 M9 Square mm 8 10 14 318120 Suitable for toolholder A B C ; 31 8130 Clamping screw Thread 0xlength mm M7X21 M 11X27 M 14X1.5X38 Square mm 8 10 14 Quick-change lathe tool posts and toolholders Size determination for tool post No. 318000 and turning toolholder No. 318100. 1. Cross slide width SB. The length L of the turning toolholder No. 318100 should be about equal to the cross slide width SB. 2. Minimum cutting edge height S when using turning tool height h. t f j CO i/r ( 1 - 7 1 Example for size determination Existing Cross slide width SB 145 mm. Cutting edge height S 33 mm. Required 1. Turning toolholder No. 318100 size B 25/140 140 - for cross slide width SB 145 B25 - for cutting edge height 33 (maximum turning tool height h 20 mm) 2. Tool post No. 318000 size B. Suitable for toolholder A B C 31 8140 Height adjuster complete Length x height mm 50x20 72x30 94x50 Suitable for toolholder A B C 5 31 JI1 Clamping arm ro 3 l o l jU complete Clamping 0 mm 60 90 120 Suitable for toolholder head A B C i 31 8160 Eccentric bolt Hexagon mm 12 17 17 Length mm 58 85 107 Suitable for toolholder A B/C 3 31 8170 Clamping lever Bi-hexagon mm 12 17 Length mm 150 190 Suitable for toolholder A B C
